CutleryApps

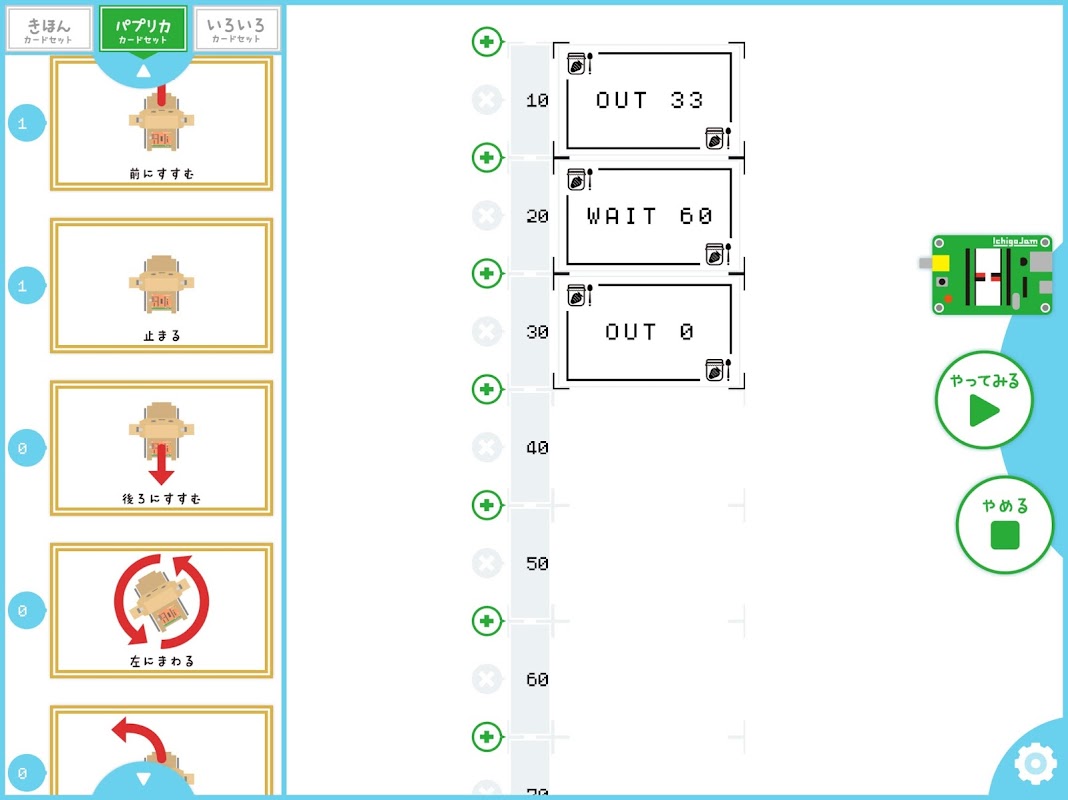

CutleryApps is a visual programming software for IchigoJam or IchigoLatte using a CutleryCard provided by Nittetsu Hitachi Systems Engineering, Inc. Everyone can easily learn programming by arranging cards side by side.

Cutlery cards have one order per sheet.

The source code of IchigoJam / IchigoLatte is written on the back of the card.

First, you arrange cards in the order you want to do.

Turn over the arranged cards, type in the written letters to IchigoJam / IchigoLatte with the keyboard and run.

It corresponds to serial communication.

If you connect an Android terminal and serial communication module with an OTG cable, you can send programs using serial communication.

If you connect a serial communication module to IchigoJam / IchigoLatte, you can run the program without typing a keyboard.

* Android devices that support USB OTG are required.

It also corresponds to MixJuice (version 1.4.0).

If you start MixJuice in access point mode and connect WiFi of Android device to MixJuice, you can send programs using UDP communication.

If IchigoJam / IchigoLatte and MixJuice are connected, the program can be executed without typing a keyboard using UDP communication.

Cutlery Card

CC BY Nittetsu Hitachi Systems Engineering, Inc. (http://www.nhs.co.jp/jammy/downloads/)
