DriveWizard Mobile

● Scan the QR code on the drive‘s faceplate or nameplate and get easy access to full product information, technical data, catalogs, and troubleshooting.

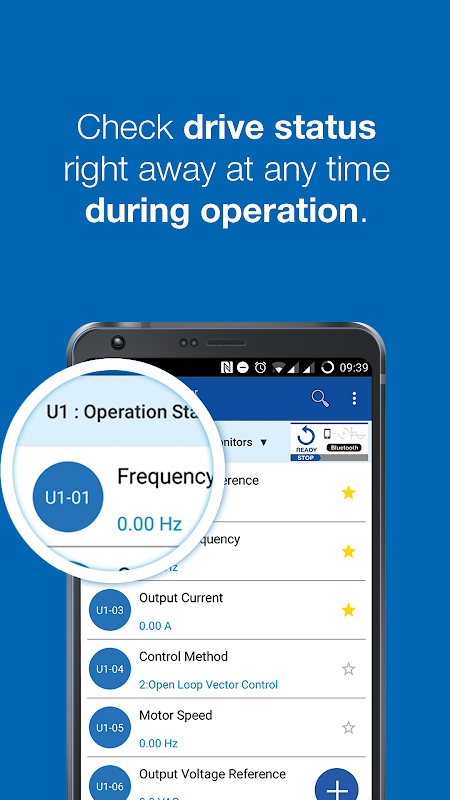

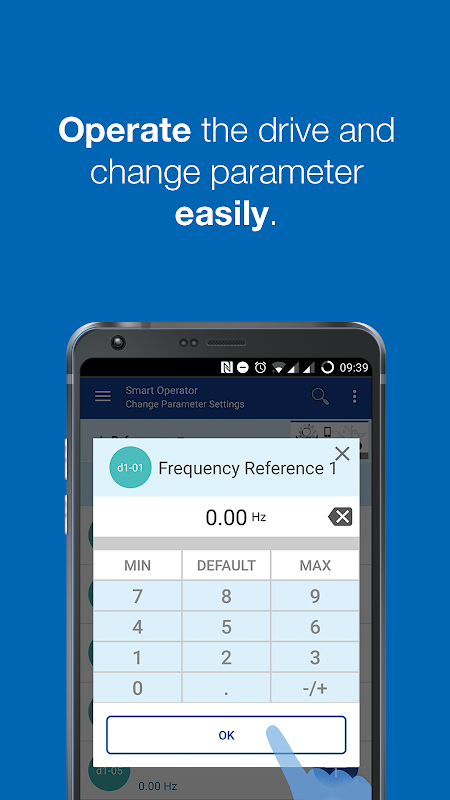

● Edit parameters, operate the drive and monitor the drive condition in real-time by connecting the drive via USB or Bluetooth.(See notes 1 and 2)

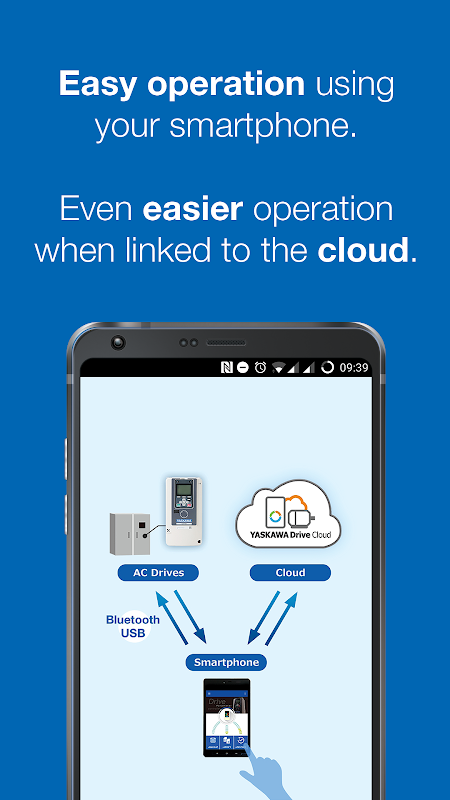

● Backup your inverter parameters in the YASKAWA Drive Cloud to have them ready when you need them, anywhere and anytime.

Notes:

1: The USB connection uses the USB host function of your smartphone (USB on the go, USB-OTG). Consult the manual or the manufacturer of your device to find out if this function is supported by your device.

The drive is equipped with a type B Mini-USB port. Use a USB-OTG cable with a matching connector.

2: To establish a Bluetooth connection, the optional “Bluetooth LCD Keypad” is required.

● Supported drive: GA700、GA500、CR700、CH700、FSDrive-LIPV、FSDrive-LIPA_LIPC、GA800、GA501、HV600、HV600 Bypass、HV305、FP605、FP605 Bypass、FP60B、LA700、ES700、iQpump605

※ The inverters that can be connected vary depending on the area where you are using.

● Supported Android versions: Android 10, 11, 12, 13, 14, 15, 16

※ Error-free operation cannot be guaranteed. Please notify us of any problems or errors.

”Android”, “Google Chrome” are registered trademarks of Google Inc.

”Bluetooth” is a registered trademark of Bluetooth SIG. Maximum communication distance of the Bluetooth connection is about 10 m. Communication distance may be shorter depending on the used smartphone and other conditions.
