Jetting Rotax Max Kart Pro

For all Rotax MAX (non-EVO) engines!

This app provides, using temperature, altitude, humidity, atmospheric pressure and your engine configuration, a recommendation about jetting for karts with Rotax 125 Max non-EVO (Micro with stop sleeve RTX251730, Micro or Mini with restrictor RTX267530 or RTX267535, Micro or Mini without any restrictors, Junior, Senior, DD2, Supermax) engines, which use a Dellorto VHSB 34 QS/QD carbs.

This app can obtain automatically the position and altitude to get the temperature, pressure and humidity from the nearest weather station thought internet. Application can run without GPS, WiFi and internet, in this case user has to enter weather data manually.

• Two different tuning modes: "By regulations" and "Freestyle"!

• In first mode, the following values are given: main jet, spark plug, spark plug gap, needle type and position (including intermediate positions with washer), air screw position, idle screw position, optimal water temp, gear oil recommendation

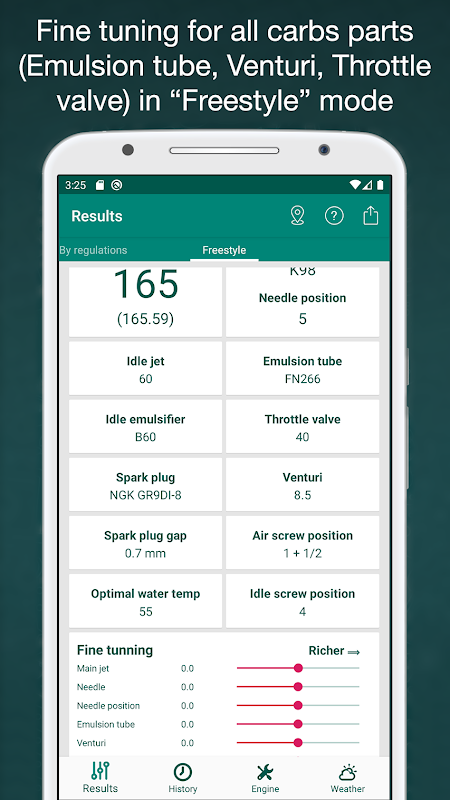

• In second mode (Freestyle), the following values are given: main jet, spark plug, emulsion tube, needle, needle type and position (including intermediate positions with washer), venturi, idle jet (outer pilot jet), idle emulsifier (inner pilot jet), air screw position

• Fine tuning for all these values

• History of all your jetting setups

• Graphic display of fuel mix quality (Air/Flow Ratio or Lambda)

• Selectable fuel type (VP MS93, gasoline with or without ethanol)

• Adjustable fuel/oil ratio

• Adjustable floats height

• Mix wizard to get the perfect mix ratio (fuel calculator)

• Carburetor ice warning

• Possibility of use automatic weather data or a portable weather station.

• If you don't want to share your location, you can manually select any place in the world, jetting recommendation will be adapted for this place

• let you use different measure units: ºC y ºF for temperatures, meter and feet for altitude, liters, ml, gallons, oz for fuel, and mb, hPa, mmHg, inHg for pressures

The application contains four tabs, which are described next:

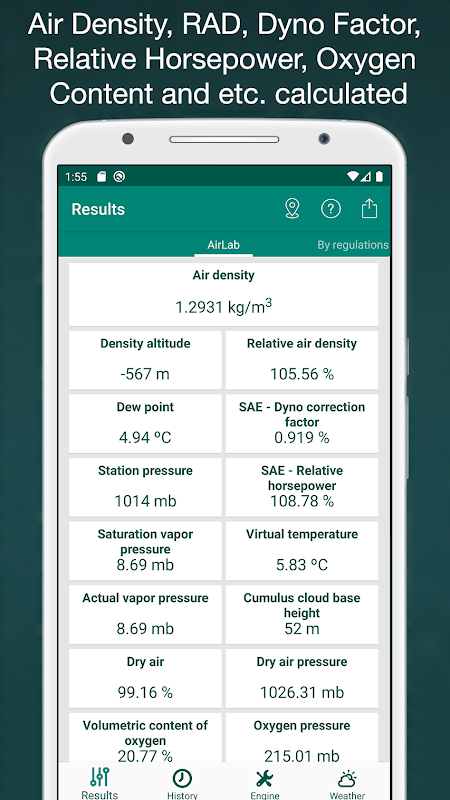

• Results: In this tab two jetting setups are shown. These data are calculated depending on the weather conditions and the engine and track configuration given in the next tabs.

This tab lets do a fine tuning adjustment for all values for each jetting setup to adapt to the concrete engine.

Besides this jetting information, the air density, density altitude, relative air density, SAE - dyno correction factor, station pressure, SAE - relative horsepower, oxygen pressure and volumetric content of oxygen are shown too.

You can also see in a graphic form the calculated ratio of air and fuel (lambda).

• History: This tab contains the history of all jetting setups. If you change the weather, or engine setup, or fine tuning, the new setup will be saved in history.

• Engine: You can configure in this screen the information about the engine, that is, engine model (Micro, Mini, Junior, Senior, DD2, Supermax), needle type, float type and height, venturi (8.5 or 12.5), idle jet, idle emulsifier, fuel type, oil mix ratio and type of the track. Depending of this parameters, the jetting setups will be adapted.

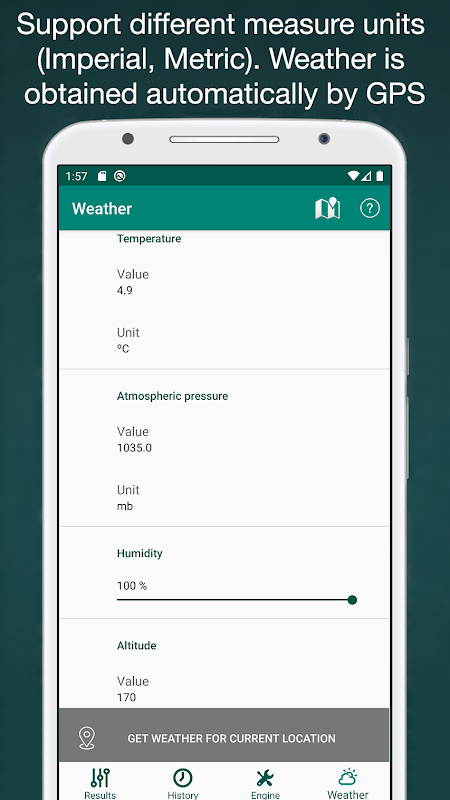

• Weather: In this tab, you can set the values for current temperature, pressure, altitude and humidity.

Also this tab allows to use the GPS to get the current position and altitude, and connect to an external service to get the weather conditions of the nearest weather station.

For Rotax Max EVO Engine please try our other app: Jetting Rotax Max EVO Kart.

If you have any doubt about using this App, please, contact us. We answer every question, and we take care of all comments from our users to try to improve our software. We are also users of this application.
