MakeCrank

Calculates from the specified value and generates SVG (2D) or STL (3D) of the crank arm.

The generated data can be displayed and shared in another application.

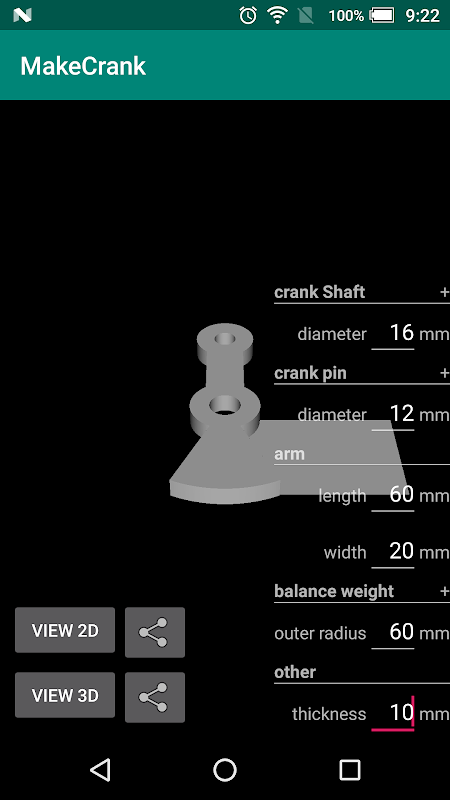

Calculates the size of balance weight automatically.

From the outside diameter of the balance weight, the mass (g) on ​​the crank pin side and the density (g / cm3) of the crank arm

Calculate the size of the weight that can be balanced.

Parameter

・ Crankshaft diameter (mm)

· Crank pin diameter (mm)

・ Crank arm length (mm)

・ Crank arm width (mm)

・ Balance weight radius (mm)

・ Thickness (mm)

Display the generated data in conjunction with the application,

It can be shared with 3D printers and PCs connected to them.

The underlaying square is a credit card for size comparison.
