Measuring Center

In modern world tablet PCs or smartphones are playing greater role in our lives. Devices, comparable in power with personal computers, gained a big part of the consumer market, supplanting PCs. For general consumer mobile devices completely replaced the functionality of PC, but specific tasks are still mostly solved using computers. It mostly happens because of the lack of necessary software. Our company goes with the times and offers its customers the possibility of using mobile devices for sound measuring and analysing. We have developed an application for spectral analysis of sound for Android. The application Measuring Center for Android is simplified version of the program for PC, but it still has its reach functionality. The interface of the program is intuitive and easy to use. It supports both the wired Spl-Lab devices (USB BASS Meter, USB RTA Meter, etc.) and wireless devices, such as Wireless Bass Meter. Also you can make measurements using build-it microphone of your phone or tablet!

You can read the full manual here

http://www.spl-lab.ru/download/SPL-LAB%20Measuring%20Center%20Android%20-%20User's%20Manual%20-%20EN.pdf

Supported devices in Google Android (we recommend installing the free version to test the connection before purchasing the full version)

-Wireless Bass Meter (all versions)

-LCD Bass Meter (Second Edition)

-NEXT-LCD using USB OTG adapter and USB hub or USB Y-cable for external power supply of the device

-NEXT-USB using USB OTG adapter and USB hub or USB Y-cable for external power supply of the device

-USB Bass Meter (all versions) using USB OTG adapter and USB hub or USB Y-cable for external power supply of the device

-USB Bass Meter PRO using a USB OTG adapter and a USB hub or USB Y-cable for external power supply of the device

-USB RTA Meter PRO using USB OTG adapter and USB hub or USB Y-cable for external power supply of the device

-USB Noise Meter PRO using USB OTG adapter and USB hub or USB Y-cable for external power supply of the device

Functions:

Build-it mic support for AFC measurements (full version)

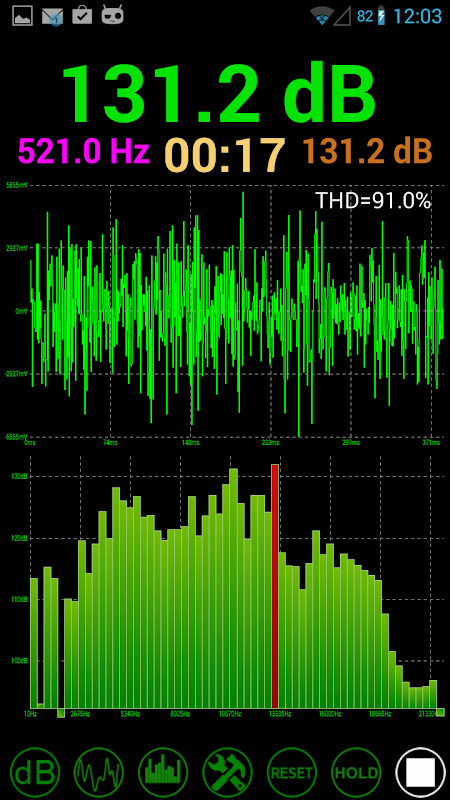

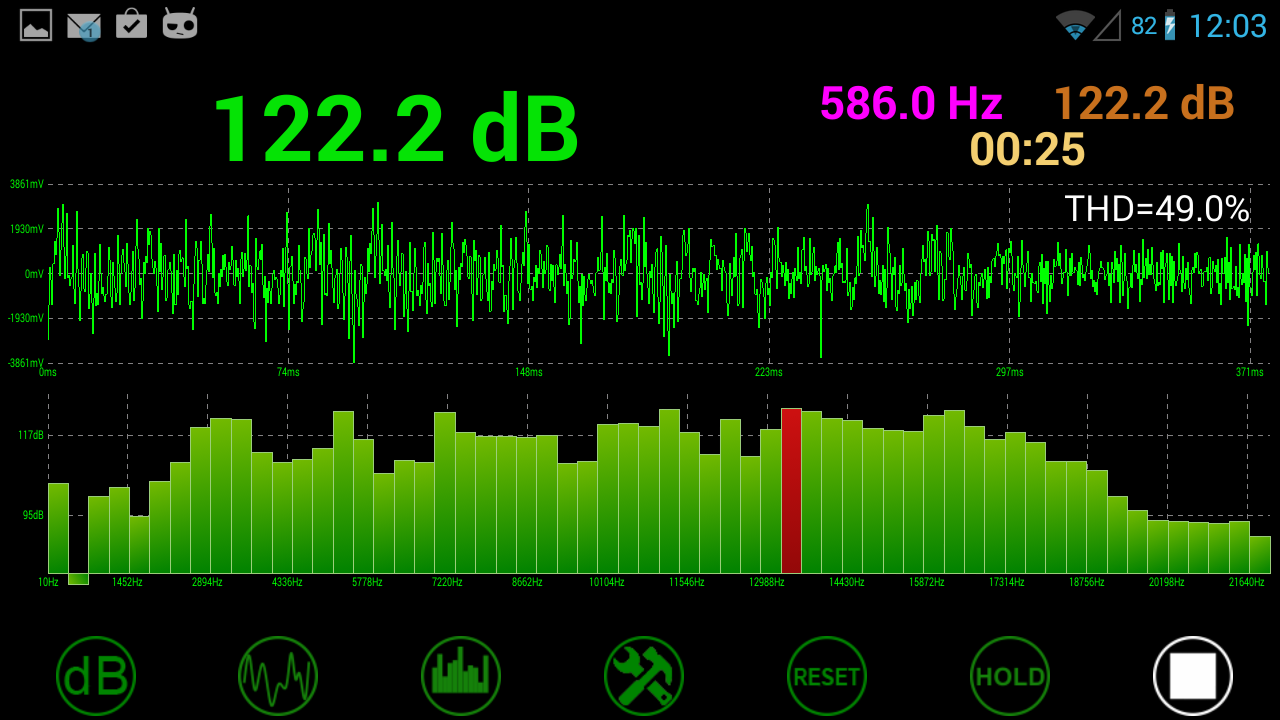

Measuring the amplitude-frequency characteristic (AFC) of a signal - displaying the spectrum

Displaying the signal waveform

Measuring the Total harmonic distortion (THD)

Measuring the sound pressure level (SPL, dB Drag, IdBL, ESPL, AMT, etc)

Linear, logarithmic and octave view of spectrum

Measuring the amplitude and frequency of the peak values of the spectrum

Measuring average level of sound pressure in time (Bassrace, Bass Boxing, AMT SPL-Show, etc)

Measuring the average in time and whole spectrum sound pressure level (SQL)

Supports the wired (full version) and wireless Spl-Lab devices
