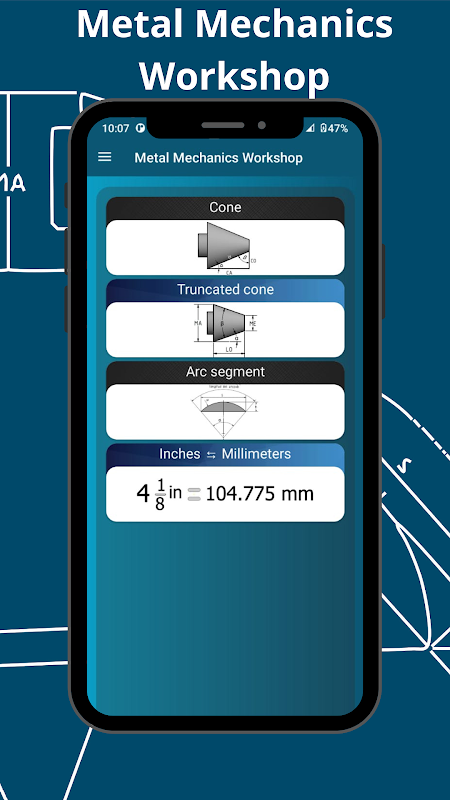

Metal Mechanics Workshop

This application is a support resource for operators who work in metal-mechanic workshops for daily use, being easy to use.

It is used for:

-Calculation of cones

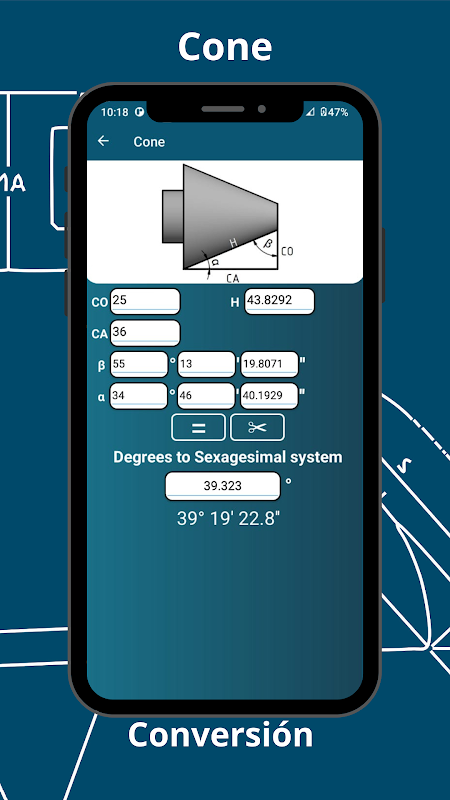

-Cone

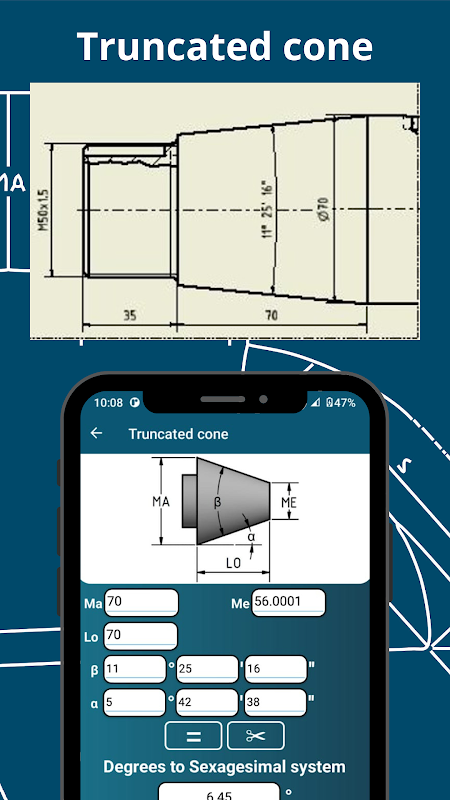

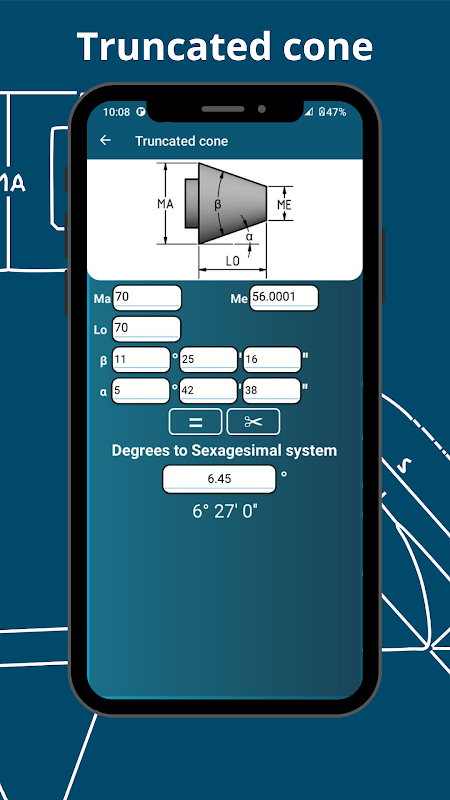

-Truncated cone

-arc segment

-Inches and millimeters conversions

The cone calculation calculates major and minor diameter, angles and lengths.

The arc segment calculates diameter, radius, height, length, and angle.

Conversions are inches to millimeters and millimeters to inches as well as decimal inches and with fraction.

Within the machine and tool workshops for the manufacture of mechanical parts, operators perform calculations of Trigonometric Functions to calculate angles and cones that they see daily, in most cases the plans or 3D models contain dimensions or measurements Very general specifics to do the machining of these parts you need to obtain more exact or specific data either to do them in conventional machines such as lathe, milling cutter, planer, drills, grinding machine, etc. or in numerical control systems called CNC.

When there is a need to carry out the programming at the machine with the codes required in the direct control, to obtain the necessary coordinates for the reading of the program and the part to be carried out corresponds to the data required. The main objective of this application is to speed up the calculation to obtain angles and cones to reduce downtime, which is of great importance within the industry to be more productive, guaranteeing that the data obtained is more accurate, since many times due to human error the parts come out with errors and consequently the product becomes a non-conforming product that can sometimes be reworked and on other occasions they are useless to perform their function, this generates very high costs for the workshops, either due to rework or parts that go to the factory. Scrap. Additionally, you will have extra tools of which are of daily use in the workshops. This application contains several tools to obtain when there is a need to carry out programming at the machine with the codes required in direct control, to obtain the necessary coordinates for reading the program and the part to be carried out corresponds to the data required . The main objective of this application is to speed up the calculation to obtain angles and cones to reduce downtime, which is of great importance within the industry to be more productive, guaranteeing that the data obtained is more accurate, since many times due to human error the parts come out with errors and consequently the product becomes a non-conforming product that can sometimes be reworked and on other occasions they are useless to perform their function, this generates very high costs for the workshops, either due to rework or parts that go to the factory. Scrap. Additionally, you will have extra tools of which are of daily use in the workshops. This app contains various tools to get.
