moneo|blue classic

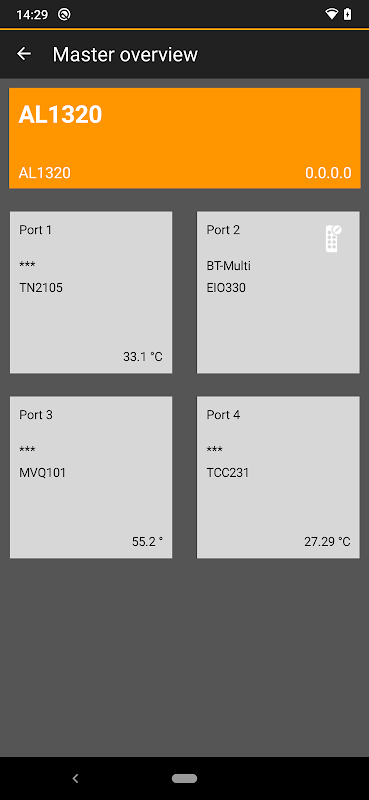

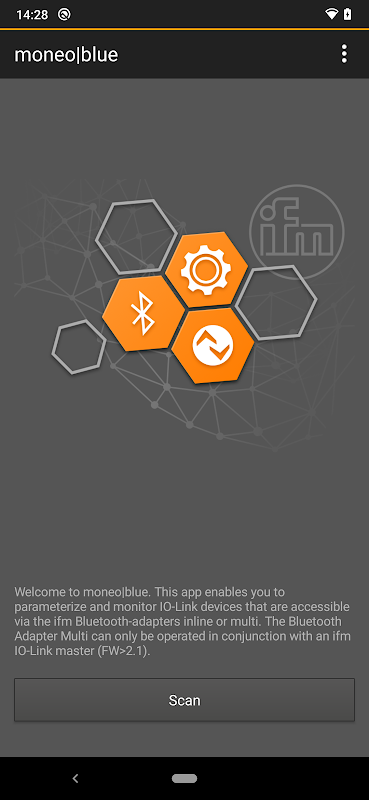

With the ifm moneo | blue mobile app you can connect wirelessly to ifm IO-Link masters (FW> V2.1) via the ifm inline and multi-bluetooth adapter (E30446 and EIO330), IO-Link process data, Read diagnostic events and device information from each IO-Link device.

********************************

Important: This process needs device specific IODD file (format - .xml) which can be imported manually from phone external storage to support backward compatibility of IO-Link version 1.0 and in case the phone is offline, else they get automatically downloaded from IODD finder server.

********************************

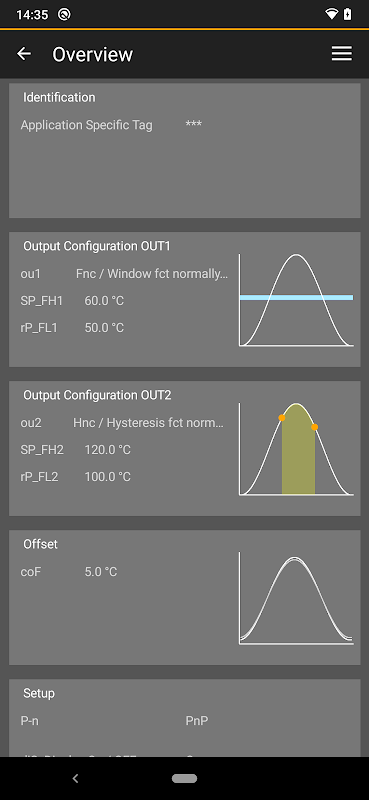

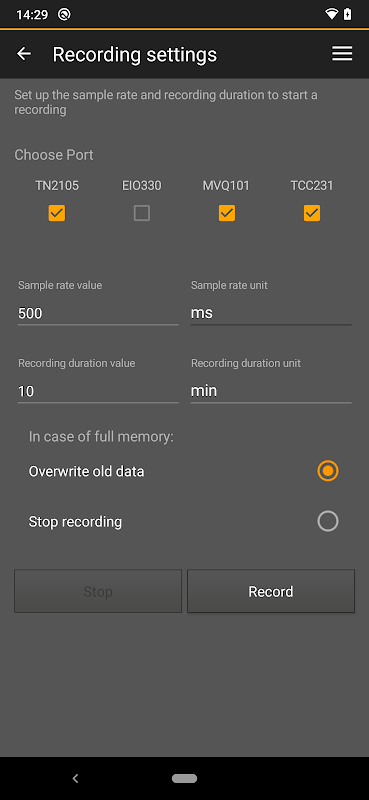

You communicate with the IO-Link devices without the need for a PLC. You can parameterize the IO-Link devices together with the EIO330. Wizard-guided and graphically supported parameterization of special ifm sensors (TCC, MVQ101, TN2105, LR2xxx and others) expand the range. Cross-manufacturer parameterization of IO-Link devices is possible, as well as the display and recording of process data.

moneo|blue also supports the devices which are in development phase and whose IODD file has not been uploaded on IODD Finder Server by importing the IODD file from phone external storage.
