MWM-Piccolo - LV und Aufmaß

Mobile measurement! Specifications and measurements on the construction site

Mobile measurement! LV (specification sheet) and measurement with GAEB communication and connection of laser range finders.

MWM-Piccolo is responsible for taking the LV to the construction site and recording an oversize.

The MWM-Piccolo database is supplied from your office EDP system using GAEB files, e.g. by MWM-Libero. The results of your measurement entries on the construction site are simply sent back to your office system by email.

Send your GAEB file to the email address [email protected]. Please enter the email address of the mobile device in the subject line. Open the email on the mobile device and save the file with the extension .iGAEB. Then start MWM-Piccolo and select the item "Import LV ..." from the menu on the top right. The data is then automatically read into MWM-Piccolo.

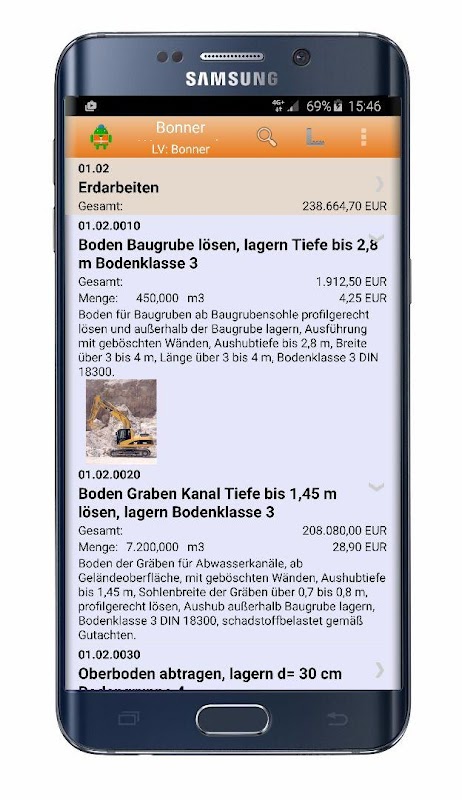

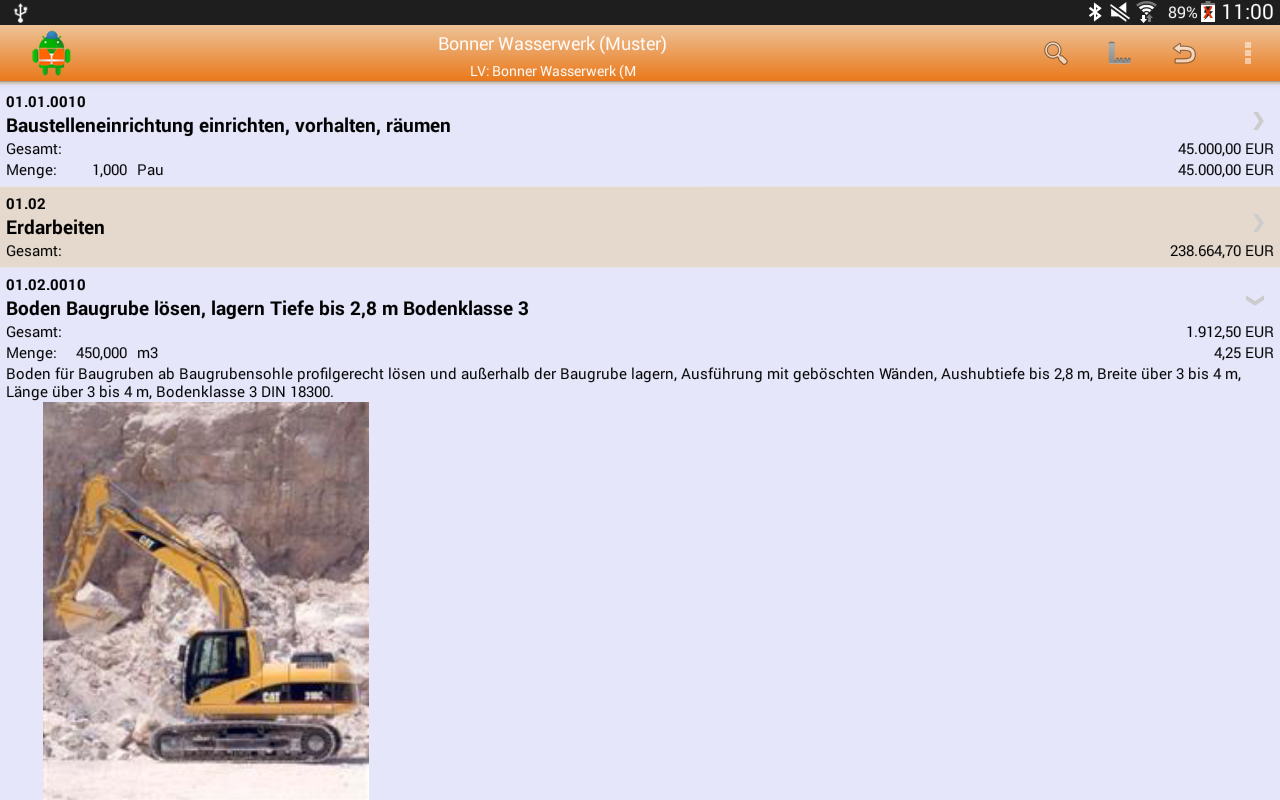

MWM-Piccolo manages any number of "building projects" and any number of LVs (trades).

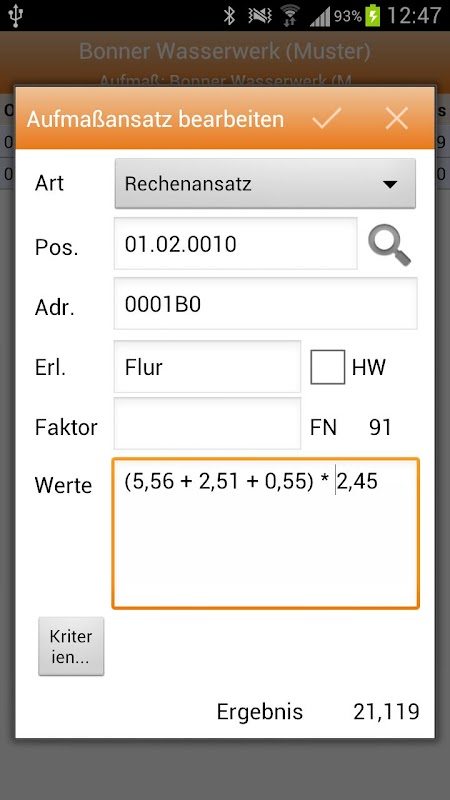

You can search in the course (also by voice input) and record measurements. You can use the keyboard, voice input or laser rangefinder to measure the measurements. They are connected via Bluetooth.

The measurement measurement can be documented using pictures and drawings. Appropriate methods are available for this.

The measurement is emailed back to your office system by email. A DA11 file of REB 23.003 is created.

MWM-Piccolo for Android was the first GAEB building software in Google Play for the areas of LV processing, measurement and billing.

MWM-Piccolo for Android supports GAEB 90, GAEB 2000 and GAEB DA XML.

If the MWM Piccolo data is transferred to MWM Libero, MWM Libero can be used to create REB 23.003 X31 files in addition to DA11 files. MWM-Libero is GAEB-certified construction software: https://www.mwm.de/software/libero

A detailed manual is available on the MWM homepage in the "Products / MWM-Piccolo" area

If you have any questions, just send an email to [email protected]
