NHS31xx NFC Program Loader

NXP Semiconductors

Dec 7, 2021

35.5 MB
File Size
Android 6.0+
Android OS

Download APK

How to install XAPK / APK file

About NHS31xx NFC Program Loader

Allows late programming an NHS31xx IC with final firmware via the NFC interface.

NXP programs every NHS31xx IC with firmware which acts as a second stage bootloader. It provides the functionality to program the final firmware in the IC via the NFC interface, allowing late-programming outside a production environment.

This APP implements the communication protocol to interact with this initial firmware on the NHS31xx ICs.

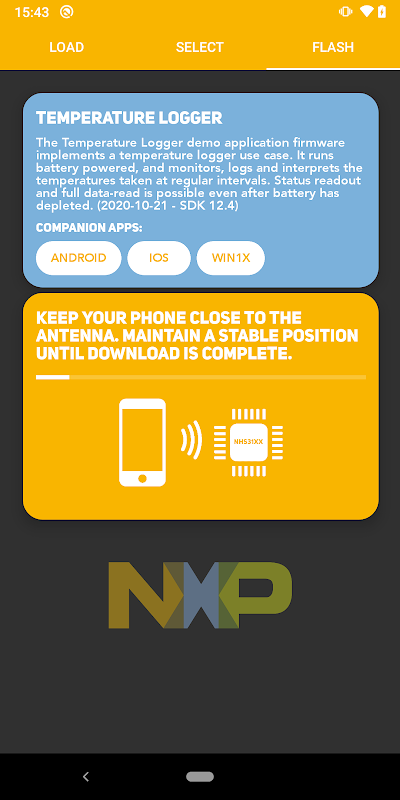

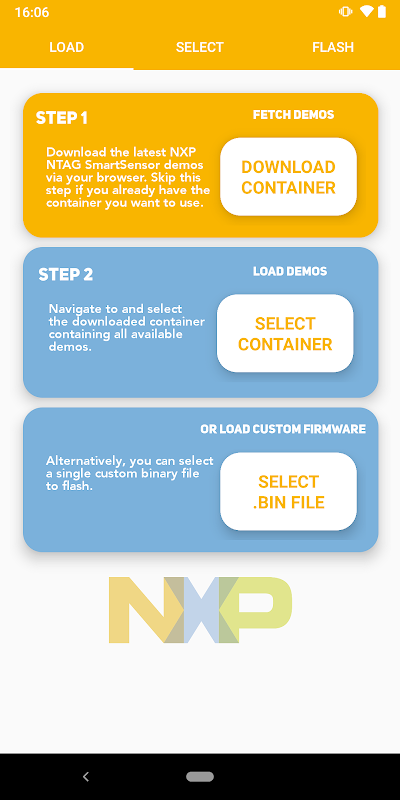

You can choose from the demo list NXP provides, or you can make your own demo's available in the app. The selected firmware image will be sent over the NFC interface to the NHS31xx IC. When download is finished, the second stage bootloader is no longer available: the IC is reset and the new application executed.

What's new in the latest 2.0

Last updated on 2021-12-07

A complete rewrite provides the user a faster and easier way to wirelessly flash the demo of their choosing to their NHS31xx IC. This new release makes it very easy to obtain and select the correct demo firmware, and have it flashed on multiple devices in quick succession.
This new release also solves the known issue with accessing newer ICs.
