About Pipedata

For fast and easy access to dimensional, weight and piping design information.

Pipedata has dimensional and weight information for 72 common ASME piping components all in a fast, convenient and easy to use interface. The Pipedata name has been around since 1996, when it was first applied to Pipedata-Pro. Since then it's gained a global presence in the piping industry with large corporations and individuals appreciating the Pipedata hallmarks of accuracy and up-to date relevant information.

Based on the latest ASME piping dimensional specifications it shows Metric, U.S. Customary Units and Inch Fractions, NPS and DN pipe sizes and includes audited valve weights, flange weights, pipe weights and all piping component weights.

DATA SUMMARY

Pipe ASME B36.10M/19M - 2004

WeldNeck Flange, ASME B16.5-2013

Slip On Flange, ASME B16.5-2013

Blind Flange, ASME B16.5-2013

Threaded Flange, ASME B16.5-2013

SocketWelded Flange, ASME B16.5-2013

Lapped Flange, ASME B16.5-2013

Long Welding Neck Flange, ASME B16.5-2013

Buttwelded 45deg Elbow, ASME B16.9-2007

Buttwelded 90deg Long Radius Elbow, ASME B16.9-2007

Buttwelded 180deg Long Radius Return, ASME B16.9-2007

Buttwelded 90deg Short Radius Elbow, ASME B16.9-2007

Buttwelded 180deg Short Radius Return, ASME B16.9-2007

Buttwelded Equal Tee, ASME B16.9-2007

Buttwelded Reducing Tee, ASME B16.9-2007

Buttwelded Cap, ASME B16.9-2007

Buttwelded Concentric Reducer, ASME B16.9-2007

Buttwelded Eccentric Reducer, ASME B16.9-2007

Buttwelded Lap Joint Stub End, ASME B16.9-2007

Threaded 90deg Elbow, ASME B16.11-2011

Threaded Tee, ASME B16.11-2011

Threaded Cross, ASME B16.11-2011

Threaded 45deg Elbow, ASME B16.11-2011

Threaded 90deg Street Elbow, ASME B16.11-2011

Threaded Coupling, ASME B16.11-2011

Threaded Half Coupling, ASME B16.11-2011

Threaded Cap, ASME B16.11-2011

Threaded Square Head Plug, ASME B16.11-2011

Threaded Hex Head Plug, ASME B16.11-2011

Threaded Round Head Plug, ASME B16.11-2011

Threaded Hex Head Bushing, ASME B16.11-2011

Threaded Flush Bushing, ASME B16.11-2011

Socketwelded 90deg Deg Elbow, ASME B16.11-2011

Socketwelded 45deg deg Elbow, ASME B16.11-2011

Socketwelded Tee, ASME B16.11-2011

Socketwelded Cross, ASME B16.11-2011

Socketwelded Coupling, ASME B16.11-2011

Socketwelded Half Coupling, ASME B16.11-2011

Socketwelded Cap, ASME B16.11-2011

Socketwelded Reducing Coupling, ASME Unadopted

Socketwelded Welding Boss, ASME Unadopted

Socketwelded Reducing Insert Type 1, ASME Unadopted

Socketwelded Reducing Insert Type 2, ASME Unadopted

Socketwelded Reducing Insert Type 3, ASME Unadopted

Socketwelded Union, ASME Unadopted

Socket Details, ASME B16.11-2011

Non Metallic Flat Ring for ASME B16.5 Flanges, ASME B16.21-2011

Non Metallic Flat Ring for ASME B16.47 Series A Flanges, ASME B16.21-2011

Non Metallic Flat Ring for ASME B16.47 Series B Flanges, ASME B16.21-2011

Spiral wound for ASME B16.5 Flanges, ASME B16.20-2012

Spiral wound for ASME B16.47 Series A Flanges, ASME B16.20-2012

Spiral wound for ASME B16.47 Series B Flanges, ASME B16.20-2012

RTJ Soft Iron Ring type R, ASME B16.20-2012

RTJ Soft Iron Ring RX, ASME B16.20-2012

RTJ Soft Iron Ring BX, ASME B16.20-2012

Flanged Gate Valve, ASME B16.10-2009

Flanged Globe Valve, ASME B16.10-2009

Flanged Ball Valve, ASME B16.10-2009

Flanged Control Valve, ASME B16.10-2009

Flanged Swing Check Valve, ASME B16.10-2009

Flanged Wafer Check Valve, API 594

Wafer type Butterfly Valves, ASME B16.10-2009

Lug type Butterfly Valves, ASME B16.10-2009

ButtWelded Gate Valve, ASME B16.10-2009...

- and much more, Check it out

Show More

What's new in the latest 1583

Last updated on 2024-11-07
Stainless Steel Pipe size range adjustments to match ASME B36.19-2022
Show More

Videos and Screenshots

  • Pipedata poster

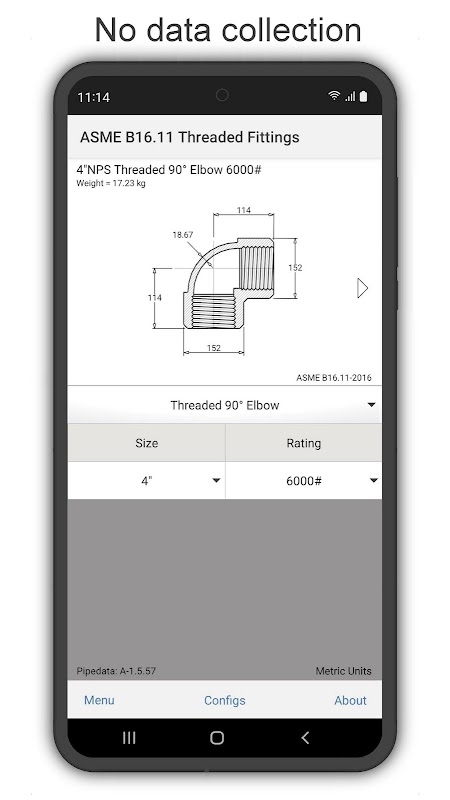

  • Pipedata screenshot 1

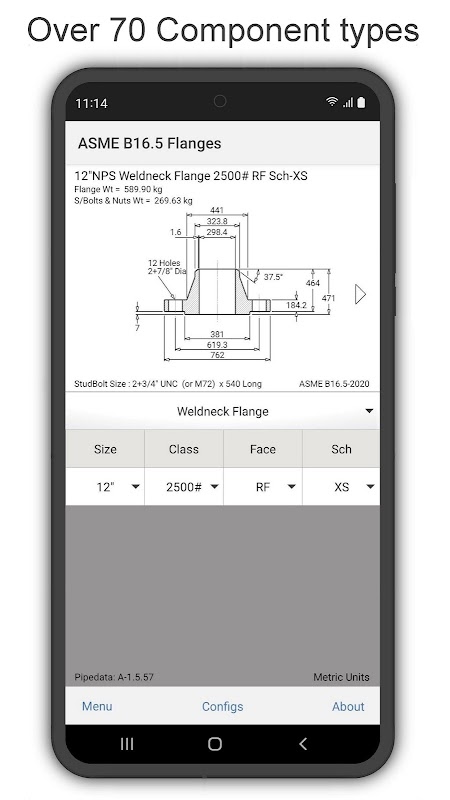

  • Pipedata screenshot 2

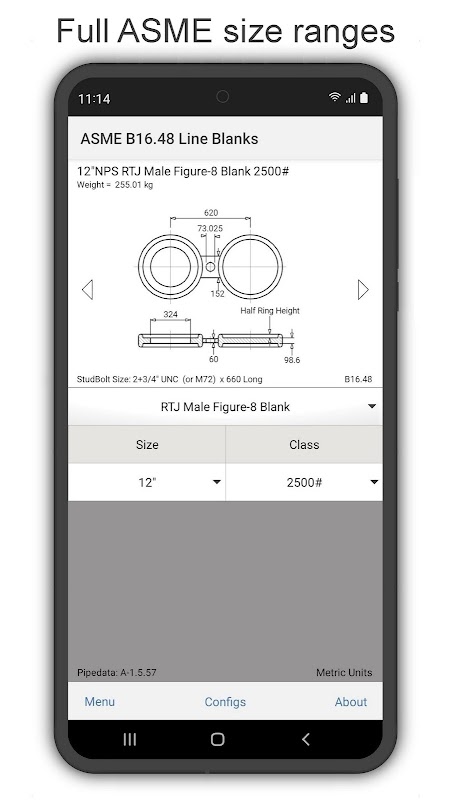

  • Pipedata screenshot 3

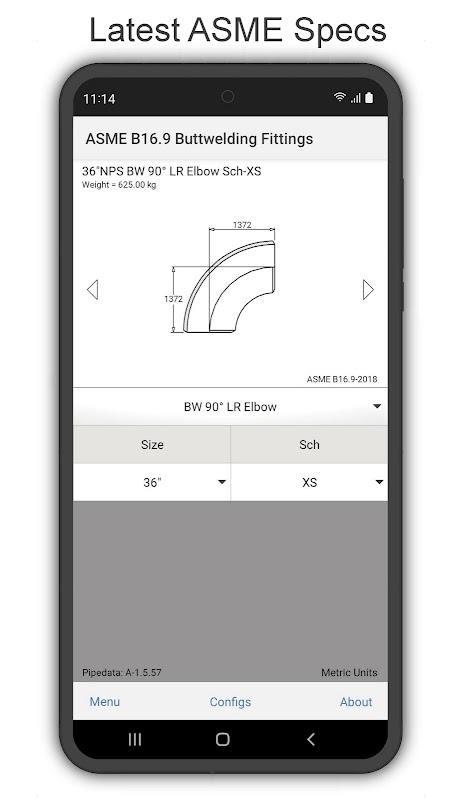

  • Pipedata screenshot 4

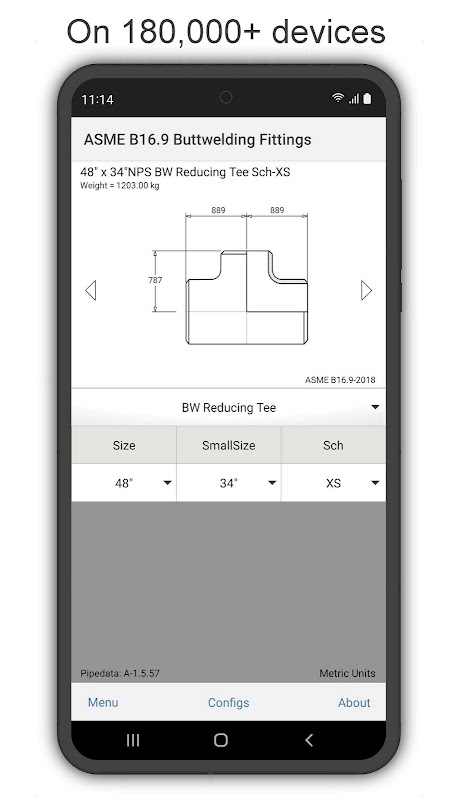

  • Pipedata screenshot 5

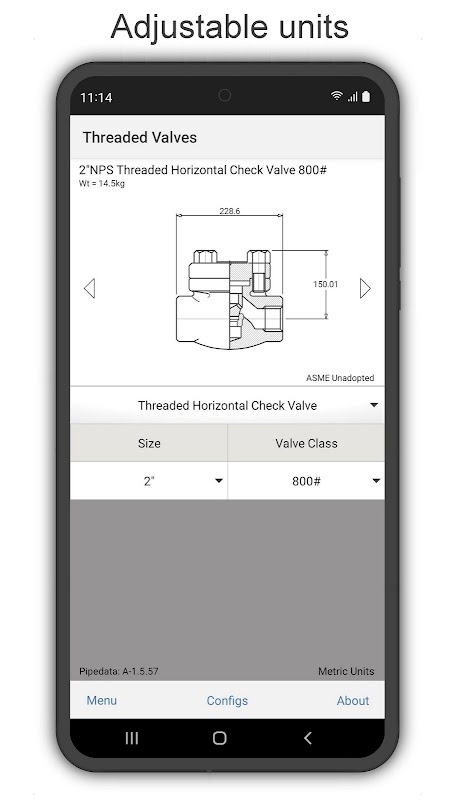

  • Pipedata screenshot 6

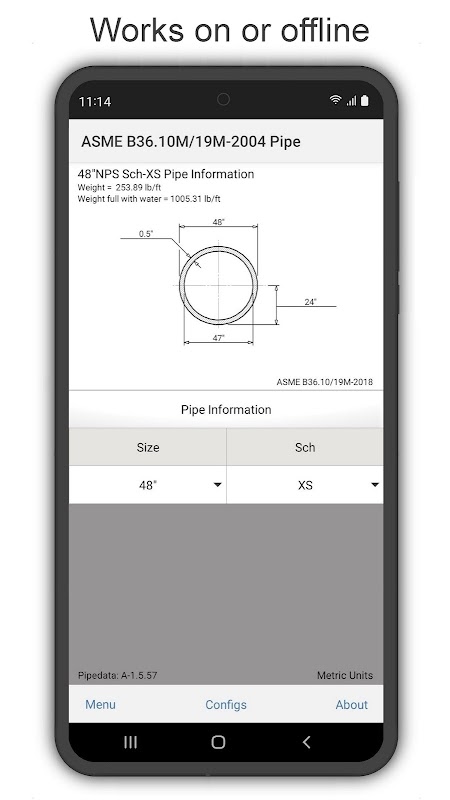

  • Pipedata screenshot 7
