Pulse Echo Sounder

Pulse is the companion app for the echo sounder product brand "Pulse". Supported echo sounders are:

- PULSEred: Our 2D fish finder model

- PULSEblack: Our down scan model

- PULSEblue: Our side scan model

These echo sounders are headless. This app is used to view and control them.

The Pulse app connects to the Wi-Fi access point of the Pulse echo sounder automatically. And will then show the echogram, the depth and the temperature.

The Pulse app offers you an intuitive way to read and control your echo sounder. All important controls are directly accessible on the screen for fast adjustments. Their visibility can be toggled by a single click to allow a clean echo sounder screen.

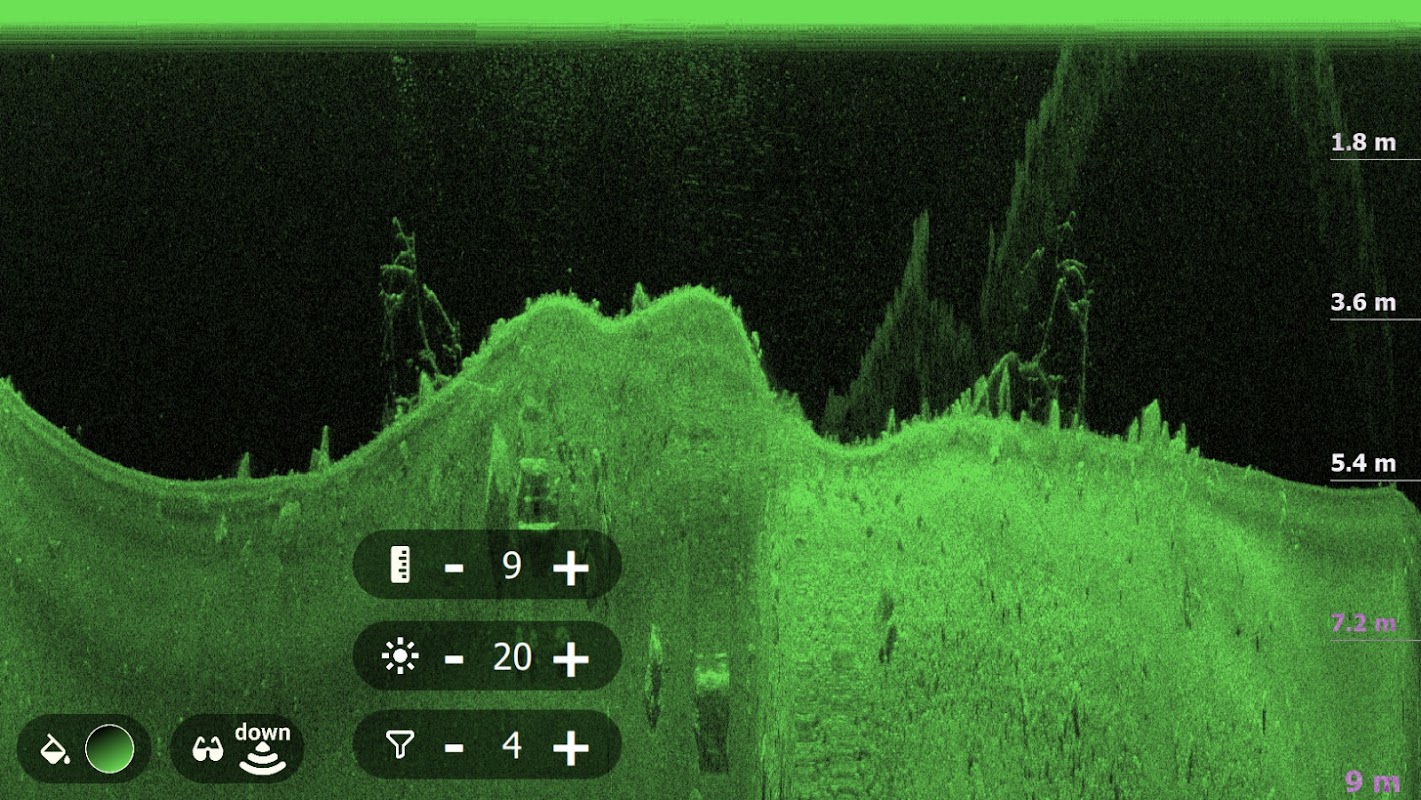

Echogram pause with track back:

Pause echogram with no fear you will loose data, this is still captured when pausing and will be available when you disable the pause. During pause you can scroll through the historic echogram. Using your finger tip you get a magnifying square to study details. The magnifying box follows your finger movements around the echogram.

If you have a supported autopilot app, the Pulse Echo Sounder also knows the position of your moving crosshair. Add a waypoint in the autopilot by tap of a button from the echogram.

Metric or imperial measures both supported

Color maps:

Select among 5 single color and 14 multi color palettes. Anyone should find a favorite! Visual explanation of what colors mean also available in the app.

Point of view:

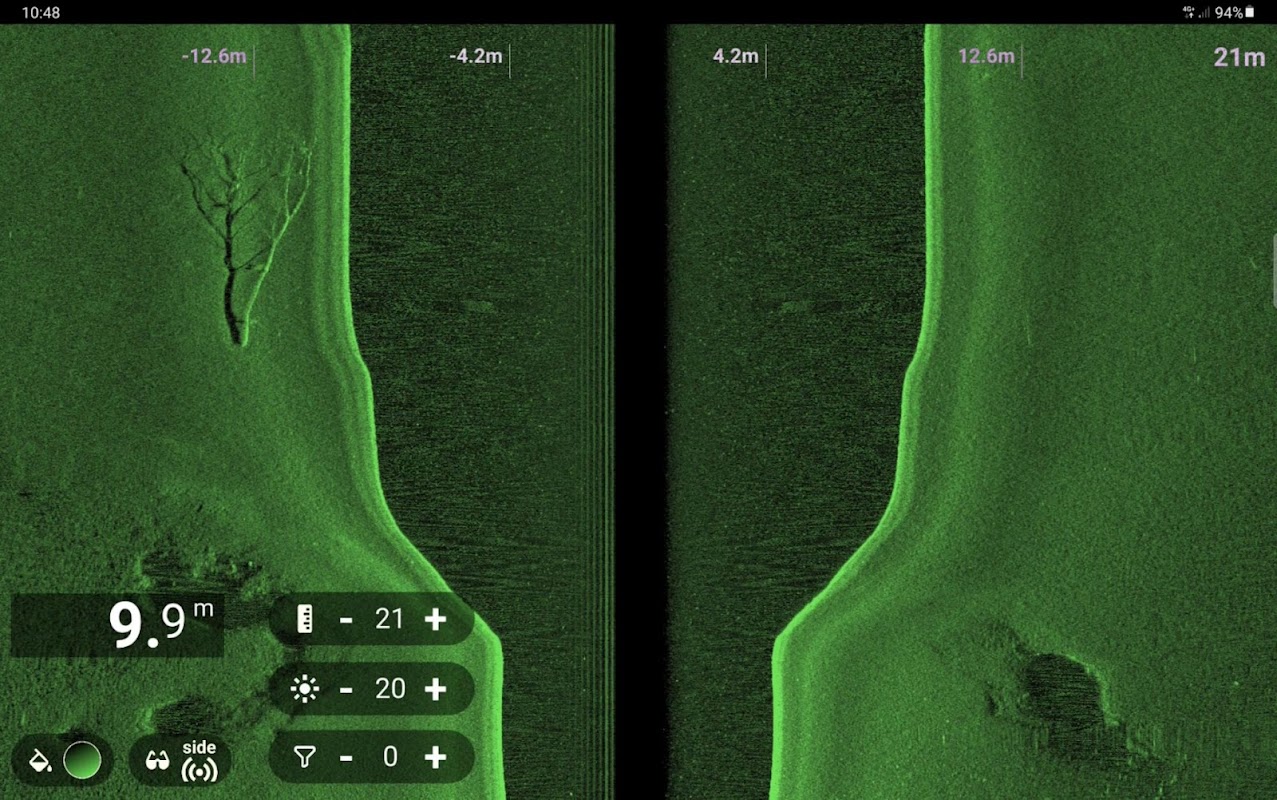

For the PULSEblue, swap between the vertical side scan view and the down scan view with a single click. Dual frequency choice also available.

For the PULSEred, swap between 3 different cone angles just as easily.

Depth view control:

Let the app auto track the current depth, or control it manually using the ruler. Or optionally control depth using finger pinch control.

Illumination:

Adjust the brightness of the echogram render using the "sun" control.

Filter:

Remove noise by automatic or manual control using the noise filter. Or leave the filter at 0 to observe any detail. Some of our multi color palettes work especially well with no filter at all.

Screen speed:

Easily adjust the echogram screen flow speed by finger pinch.

Additional settings:

NMEA server to allow DBT and MTW messages reach other apps, compensate for transducer installation depth, initiate an echogram recording and initiate playback, get insight in meaning of color palettes and more available as additional settings and features.

The Pulse brand of echo sounders are designed and manufactured in Germany by TechAdVision GmbH. The products are CE certified.

Visit techadvision.com for more information.
