About PyTool Modbus F

Modbus tool with Python script feature.

PyTool Modbus is a great tool for Modbus developing, debugging and monitoring.

It features Python script capability that gives you the greatest flexibility.

For ads free experience, please get the paid version.

Why script capability is desirable for Modbus tool?

Electrical engineers find it handy to use a hand held device like Android phone or tablet to debug or monitor Modbus communication in the field, factory or lab.

But nearly every Modbus communication system got its own data format.

Searching in a sea of hex data like "02a5b4ca....ff000803" and trying to figure out what is happening is not pleasant at all.

That is where PyTool Modbus comes to help.

With the ability to run custom Python script, PyTool Modbus can read and parse any received data, display it in the way you want, and even act accordingly when it is needed.

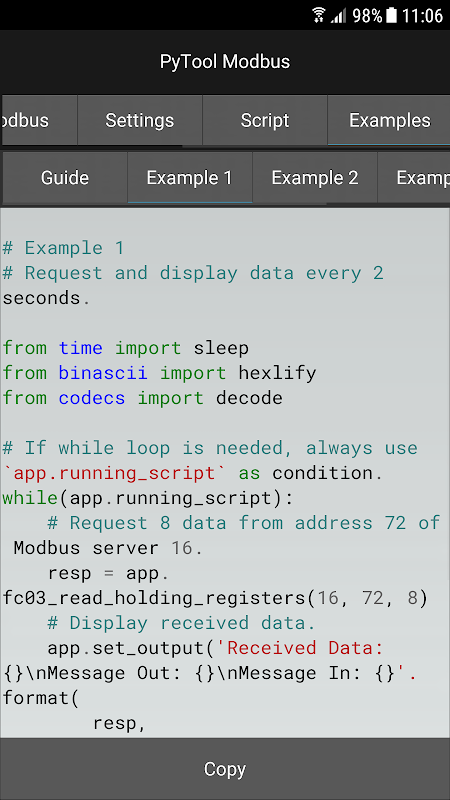

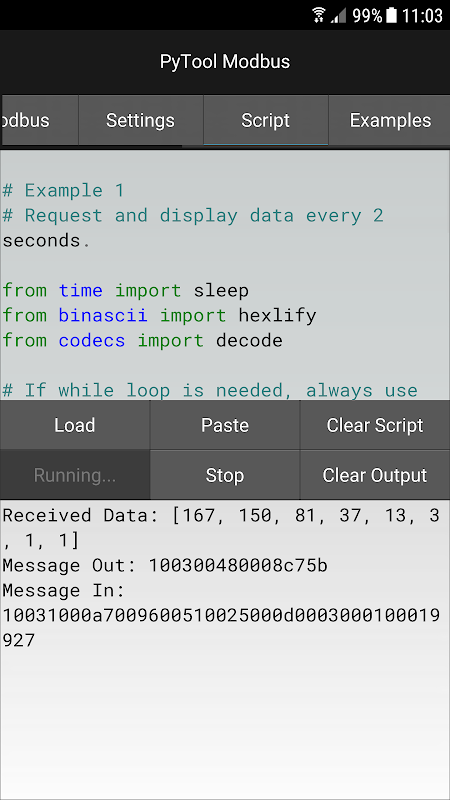

There are script examples for quick start. Just copy and paste one of them to try them out.

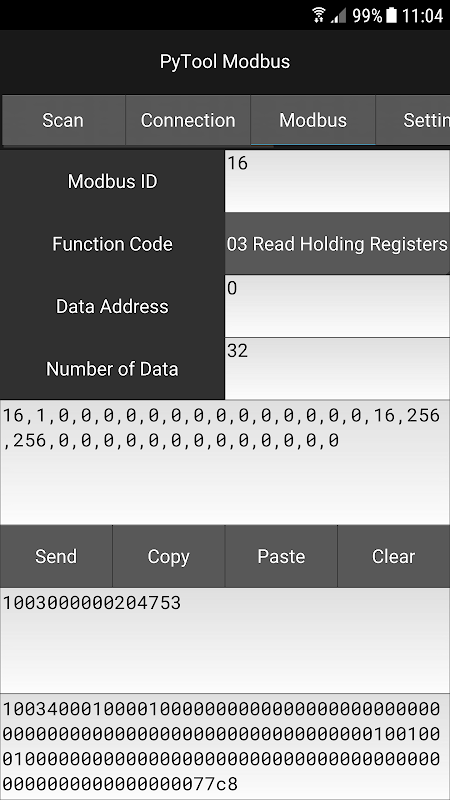

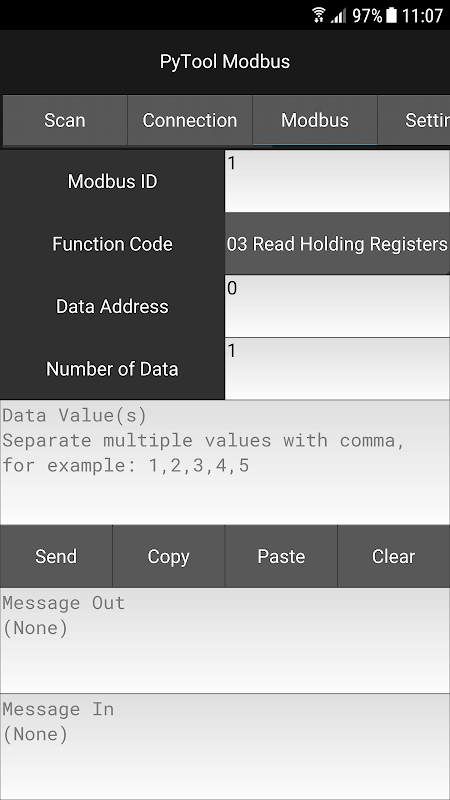

There is also a handy Modbus control interface for general use.

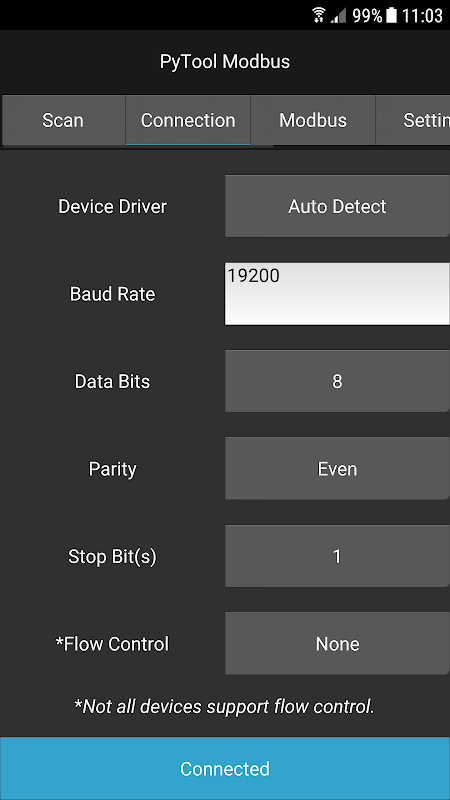

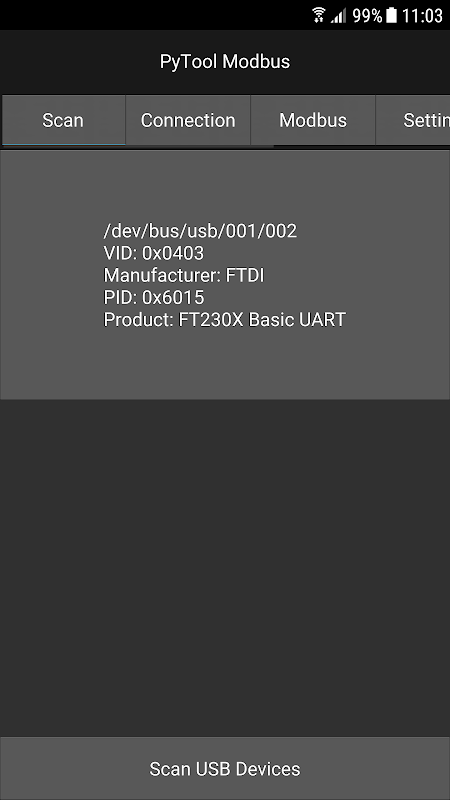

It supports main stream USB serial drivers, including:

FTDI driver

CDC ACM driver

CP210x driver

CH34x driver

PL2303 driver

Script General Guide

=================

* The Python version used in this app is 3.8.

* This app is not designed as script editor although script can be edited in the script field.

The best way is to use your favorite script editor and then copy and paste the script.

* Always use 4 spaces for indentation to avoid weird errors.

* Most of the packages in standard Python library are available to import.

* If while loop is needed, always use `app.running_script` as condition in order to stop the script properly.

* Use `app.version` to get the app version string.

* Use `app.get_output()` to get the script output field as string.

* Use `app.set_output(object)` to display `object` in the script output field as string.

* Use `app.print_text(object)` as a shortcut for `app.set_output(app.get_output() + str(object))` to append text to the script output field.

* Use `app.clear_text()` as a shortcut for `app.set_output("")` to clear the script output field.

* Use `app.fc01_read_coils(mbid, addr, num)` to send function code 01 request.

mbid (int): Modbus ID

addr (int): Data Address

num (int): Number of Data

return (list of int): Requested Data List

* Use `app.fc02_read_discrete_inputs(mbid, addr, num)` to send function code 02 request.

mbid (int): Modbus ID

addr (int): Data Address

num (int): Number of Data

return (list of int): Requested Data List

* Use `app.fc03_read_holding_registers(mbid, addr, num)` to send function code 03 request.

mbid (int): Modbus ID

addr (int): Data Address

num (int): Number of Data

return (list of int): Requested Data List

* Use `app.fc04_read_input_registers(mbid, addr, num)` to send function code 04 request.

mbid (int): Modbus ID

addr (int): Data Address

num (int): Number of Data

return (list of int): Requested Data List

* Use `app.fc05_write_single_coil(mbid, addr, val)` to send function code 05 request.

mbid (int): Modbus ID

addr (int): Data Address

val (int): Data Value

return (int): Number of Data (always 1)

* Use `app.fc06_write_single_register(mbid, addr, val)` to send function code 06 request.

mbid (int): Modbus ID

addr (int): Data Address

val (int): Data Value

return (int): Number of Data (always 1)

* Use `app.fc15_write_multiple_coils(mbid, addr, vals)` to send function code 15 request.

mbid (int): Modbus ID

addr (int): Data Address

vals (list of int): Data Value List

return (int): Number of Data

* Use `app.fc16_write_multiple_registers(mbid, addr, vals)` to send function code 16 request.

mbid (int): Modbus ID

addr (int): Data Address

vals (list of int): Data Value List

return (int): Number of Data

* Use `app.msg_out` and `app.msg_in` to check request and response messages.

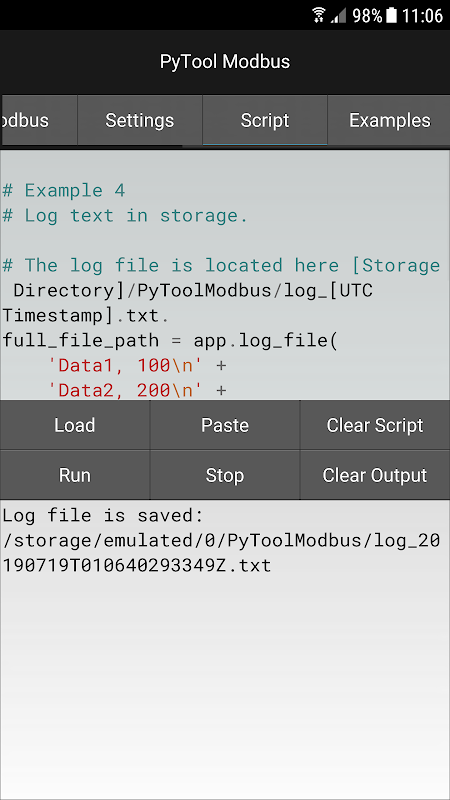

* Use `app.log_file(text)` to save a log file in storage.

The log file is located here [Storage Directory]/PyToolModbus/log_[UTC Timestamp].txt.

text (str): Text Content

return (str): Full File Path

Show More

What's new in the latest 0.3

Last updated on 2021-07-10
Version 0.3
Python version for the script is 3.8.
Now the script runs in Python global environment. Existing scripts should still work as before.
`app.version` is added for checking app version.
