SW Truss

SW Truss is a finite element analysis app for the analysis of statically determinate and indeterminate plane trusses. This app is useful to civil engineers, architects, mechanical engineers and students.

Features

-Build truss geometry by adding nodes and members graphically.

-Edit frame geometry by changing node coordinates.

-Assign Pin/Hinge or Roller(Horizontal/Vertical) supports.

-Add point loads to any node, at any angle.

-Define and assign member sections with custom properties (Young's modulus, cross-section area)

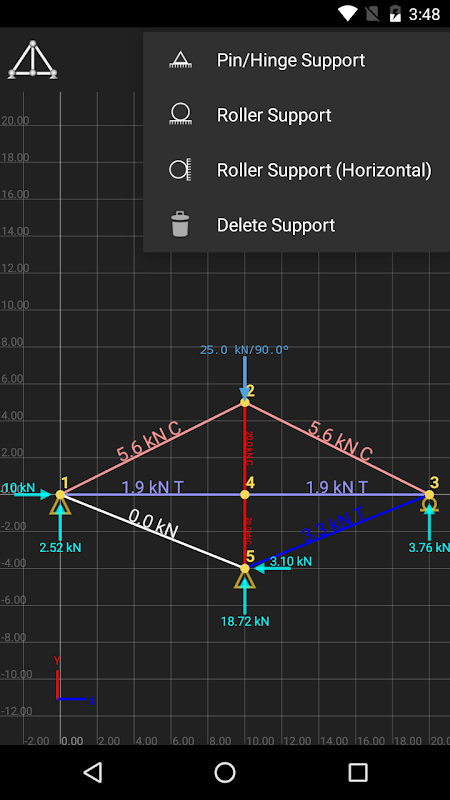

-Calculates the axial force in all members and displays them graphically.

-Calculates support reactions.

-Calculations are performed immediately.

-Inbuilt scientific calculator for input.

-Save and open created trusses.

-Supports multi-touch gestures (Pinch zoom).

-Generates analysis report as PDF files.

-Share projects with other users, or export them for later use.

This product is made in Nepal and is FREE (no Ads). If you find this useful, please let your friends know that you have used a product from Nepal. Spare sometime to visit this wonderful country and know the Nepali people.
