About Bluetooth Robot Car Controller

Tilt your Android smartphone to control your own Robot

Tilt your smartphone to control your own Robot. Here is a simple project to control your Robot/Robo Car using Bluetooth Module HC-05 & 89c2051 Microcontroller with your Android Smartphone device. In this project the accelerometer of your android Smartphone is used to detect the tilt movement angle of Smartphone, just tilt your mobile Forward, Backward, Left and Right to control the direction of Robot.

You can download Circuit & HEX File here http://www.hobbyprojects.com/bluetooth-device-control/

App Instructions:

1. First make sure your HC-05 Bluetooth Module is paired with your mobile. The default password for pairing is "1234" or "0000". Check the manual of Bluetooth module.

2. Click on "SELECT DEVICE" icon to select paired Bluetooth module.

3. When you tilt mobile "FORWARD" it sends the data "A" to Bluetooth Module connected with the circuit. When Microcontroller detects "A" the Robot / Robot Car moves FORWARD.

4. When you tilt mobile "BACKWARD" it sends the data "B" to Bluetooth Module connected with the circuit. When Microcontroller detects "B" the Robot / Robot Car moves REVERSE.

5. When you tilt mobile "LEFT" it sends the data "C" to Bluetooth Module connected with the circuit. When Microcontroller detects "C" the Robot / Robot Car turns LEFT.

6. When you tilt mobile "RIGHT" it sends the data "D" to Bluetooth Module connected with the circuit. When Microcontroller detects "D" the Robot / Robot Car turns RIGHT.

7. When the mobile phone is not tilted in any direction (screen upward position), it sends the data "E" to Bluetooth Module connected with the circuit. When Microcontroller detects "E" the Robot / Robot Car gets STOPPED. You can also stop the robot by pressing STOP button which is in the center of remote.

مزید دکھائیں

What's new in the latest 1.0

Last updated on Mar 14, 2017
Minor bug fixes and improvements. Install or update to the newest version to check it out!
مزید دکھائیں

ویڈیوز اور اسکرین شاٹس

  • Bluetooth Robot Car Controller کے لیے Android آفیشل ٹریلر

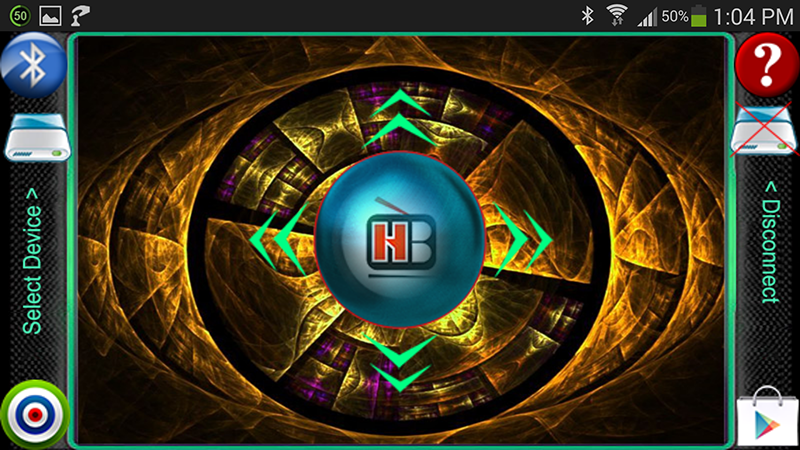

  • Bluetooth Robot Car Controller اسکرین شاٹ 1

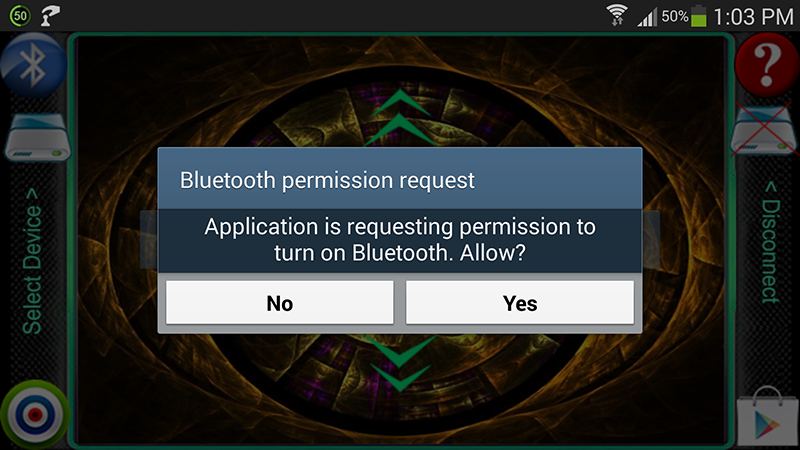

  • Bluetooth Robot Car Controller اسکرین شاٹ 2
