VR Mobile - Vibration Tools

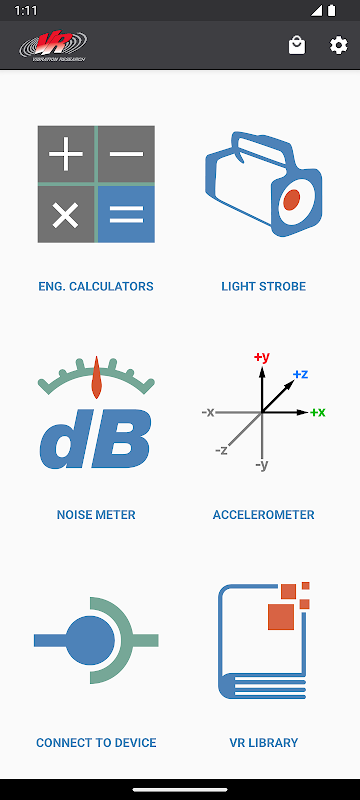

VR Mobile connects to an ObserVR1000 dynamic signal analyzer or VibrationVIEW for live vibration test monitoring using a phone or tablet. It also contains engineering calculators, a light strobe, a noise SPL meter, and accelerometer. All of this from your mobile device!

INCLUDED FEATURES:

Connect to nearby ObserVR1000 Dynamic Signal Analyzer & DAQ

- Setup inputs, record and monitor data.

- Live FFT Analysis

Record video in sync with ObserVR1000 recordings

- Record video with phone camera

- Record video with GoPro®️ Hero 5 and up cameras via bluetooth

Remotely control VibrationVIEW from within the VR Mobile App (while on the same network).

- Start/Stop tests

- View graphs

- Adjust amplitude and frequency

VR Library

- Complete courses, take quizzes and earn certificates on VR University

- Browse articles, case studies, engineering tools, research papers, and more

- Watch video tips and tech talks

- Gain access to VR product manuals

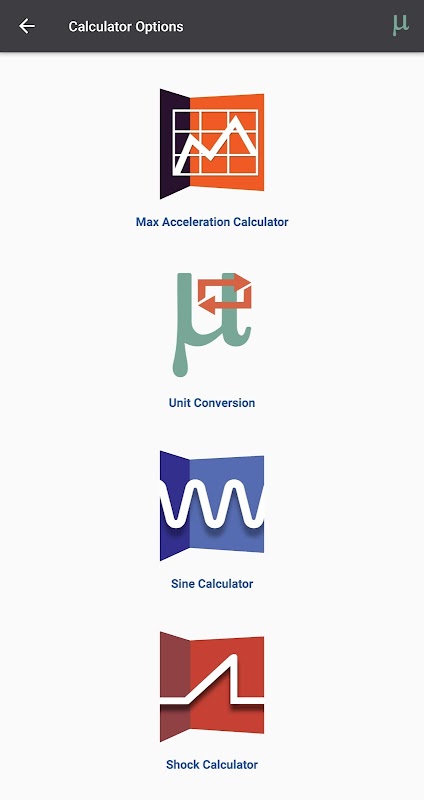

Max Acceleration Calculator:

- Calculate the maximum amount of acceleration that a shaker (from a database) can output based on the mass added to the system.

Unit Converter:

- Convert Acceleration, Force, Mass, Velocity, and Displacement units to and from common units.

Sine Calculator:

- Based on sinusoidal motion, calculate Acceleration, Frequency, Velocity, and Displacement by inputting any two of these values.

Shock Calculator:

- Pick between two impact types: Plastic or Elastic, and the pulse type. Shock Calculator will find the remaining two values given two inputs: Acceleration, Impact Time, Velocity Change, and Height Change.

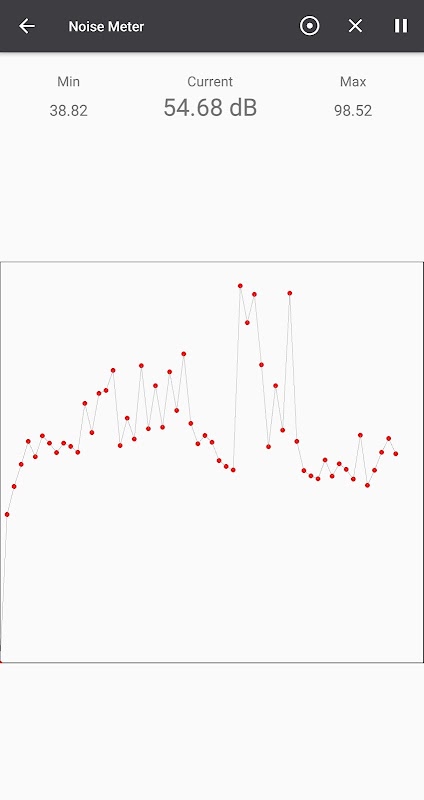

Noise Meter:

- Measure minimum, current, and maximum dB from your mobile device's microphone.

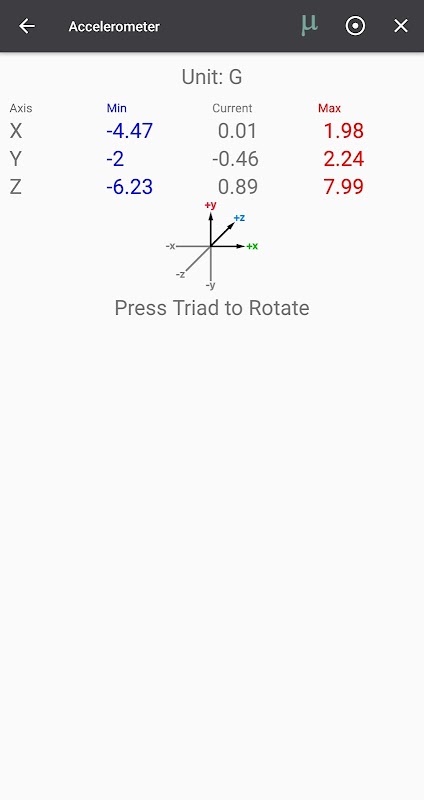

Accelerometer:

- Measure minimum, current, and maximum acceleration in each of your mobile device's accelerometer axes.

- Zero out acceleration to calibrate for an uneven surface.

Strobe Light and Flashlight

- Strobe your device's screen and/or flash LED from 1 - 30 Hz. Strobing helps one to see objects vibrating too fast for the eye to see.

- Turn your device's screen and/or flash LED into a flashlight; this makes a convenient flashlight during test setups.

- NOTE: Not all device's LED flash can be controlled by the VR Mobile app.

Contact VR:

- Watch YouTube videos from VR.

- Visit VR's website.

VR Products:

- View our VR9700 and VR10500 Vibration Test Controllers, and the ObserVR1000 Dynamic Signal Analyzer.

Permissions Explanation:

android.permission.ACCESS_NETWORK_STATE: used for Remote Interface option.

android.permission.ACCESS_WIFI_STATE: used for Remote Interface option.

android.permission.CAMERA: used for LED Flash/Strobe option (does not take pictures) and Camera Sync (images and video stored locally on user's device).

android.permission.CHANGE_WIFI_MULTICAST_STATE: used for detecting VibrationVIEW servers for Remote Interface option.

android.permission.FLASHLIGHT: used for LED Flash/Strobe option.

android.permission.INTERNET: used for Google Analytics (disable in app settings) and fetching of VR Library content.

android.permission.RECORD_AUDIO: used for Noise Meter and Camera Sync options.

android.permission.VIBRATE: used for error message.

android.permission.BLUETOOTH: used for Camera Sync feature in order to connect to GoPro® devices.

Note: This application uses Google Analytics to anonymously track usage data within the application, which can be disabled in app settings.

Note: Camera Permission is for camera LED flash control and the Camera Sync feature. Images and video captured by the Camera Sync feature are only stored locally on the user's device.
