​VisualPlot Pro: Area & Layout

VisualPlot Pro: The Ultimate On-Site Plot Validation Tool for Civil Engineers

​Stop making multiple trips to the site! VisualPlot Pro is designed for Civil Engineers and Surveyors to cross-check plot measurements live on-site before heading back to AutoCAD.

​Solve the "Open Loop" Problem:

Often, engineers realize at the office that their site measurements don’t form a closed figure. VisualPlot Pro allows you to enter sides (AB, BC, CD, DA) and a diagonal (AC) to instantly calculate the required second diagonal (BD). Compare the app-generated BD with your manual measurement to verify accuracy instantly!

​Key Features:

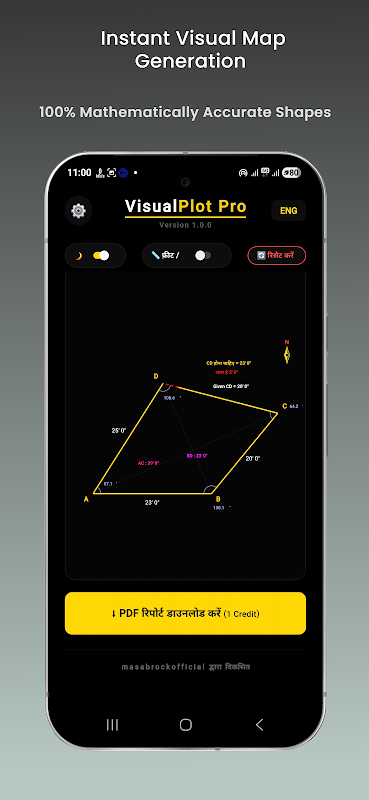

​Live Plot Visualization: See the actual shape of the plot on your phone screen, especially useful for large or irregular plots.

​Double Diagonal Validation: Enter both diagonals (AC & BD) to check if the figure closes or if there’s a gap/overlap due to measurement errors.

​Heron’s Formula Precision: Accurate area calculation using Heron’s formula for triangulated segments.

​Project Management: Save up to 100 projects in the app's local record for future reference.

​Export to PDF: Generate professional reports and export your plot data directly as a PDF.

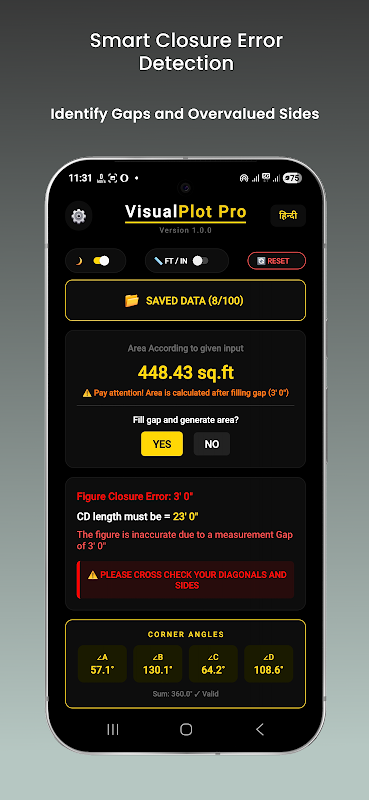

​Gap & Overlap Analysis: If sides are fixed, the app detects if the closing side (CD) is too long or if there's a gap in the boundary.

​Why VisualPlot Pro?

Built by a professional engineer, this app ensures that your site data is 100% accurate before you start the drafting process. Save time, reduce errors, and handle irregular plots like a pro.

​Perfect for:

​Civil Engineers

​Land Surveyors

​Architects

​Real Estate Developers

​Download VisualPlot Pro today and bring precision to your site surveys
