型钢大师

【Introduction】

Tool applications to help engineers quickly query the geometric dimensions and mechanical properties of profiles.

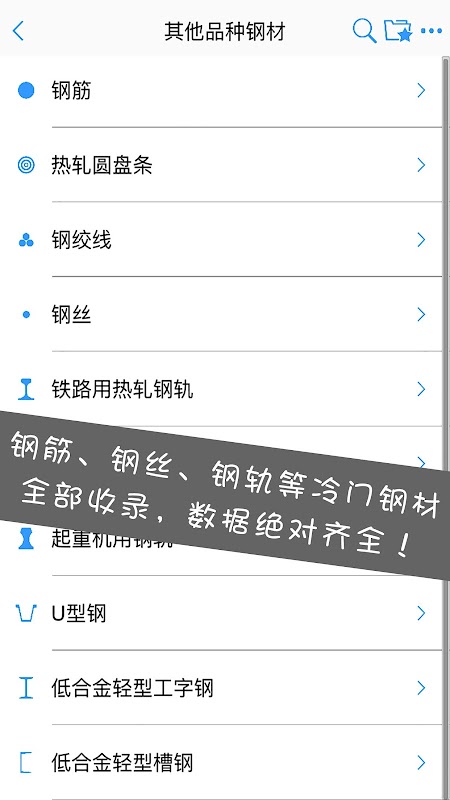

The profile of this software covers various shaped steel and steel components such as hot-rolled section steel, hot-rolled steel bar (square steel, round steel, etc.), cold-formed thin-wall section steel, steel pipe, steel plate, steel bar, steel rail, wire rope, etc. The query content includes section size, unit weight, moment of inertia, radius of inertia, section modulus, center of gravity distance, external surface area, etc. The data is accurate and reliable and can provide a reference for the design and calculation of steel structures.

The software supports 13 custom calculations of cross-sections, including commonly used round steel pipes and square steel pipes; non-standard I-beam, channel steel, and angle steel; welded box-shaped, box-shaped, and cross-shaped cross-sections.

In addition, it can also calculate the total weight of the profile according to the type and length of the profile, which is convenient for steel processing manufacturers to place orders on site. All parameters can be easily converted into units within the software.

Advanced features include:

(1) Quick query function: directly search and locate a certain profile;

(2) Collection function: Collect commonly used profile information for easy reference at any time;

(3) Calculation function: calculation of profile weight, slenderness ratio and moment of inertia shift axis;

(4) 13 custom calculations for non-standard and welded profiles, allowing you to calculate profiles of any size;

(5) Special module: unlock some special profile sections.

Note: The advanced functions are purchased once and used forever, and no additional costs will be incurred in the future.

The data comes from the latest national norms and industry standards. Except for steel plates, all data are based on the latest national standard documents and all input by handwriting. Regardless of whether it is the identification symbol or the decimal precision, the format of all data is consistent with the specification to ensure the absolute reliability of the data. "Shape Steel Master" is suitable for every engineer dealing with steel, whether you are an engineer in the field of civil engineering, a professional engineer in steel and hardware, or a practitioner in machinery, shipbuilding, petrochemical industry.

WeChat public account: Structure Master Studio

Official Weibo: Structure Master V

Contact email: [email protected]
