電気工事用電線管ラック選定:WireWay

The wire tube and rack size to be used in the electrical work

This selection tools.

■ How to use

This application consists of three screens.

Light blue screen → wire selection screen

Green screen → piping selection screen

Yellow screen → Setup screen

Movement between each screen can be done on the screen flick.

Registration of the electric wire (light blue screen)

Wire type on the summary button, size,

        When you operate a number of drum picker selection after the summary button

Wire on the list total cross-sectional area is calculated automatically

        It will be.

→ was registered in the list wire with a long tap

           You can be deleted.

→ total width is, at the time of arranging the wires that were registered in the transverse

           Dimensions.

The inner dimensions of the wire if the rack of greater than or equal to the sum width

           It can be placed in a single stage.

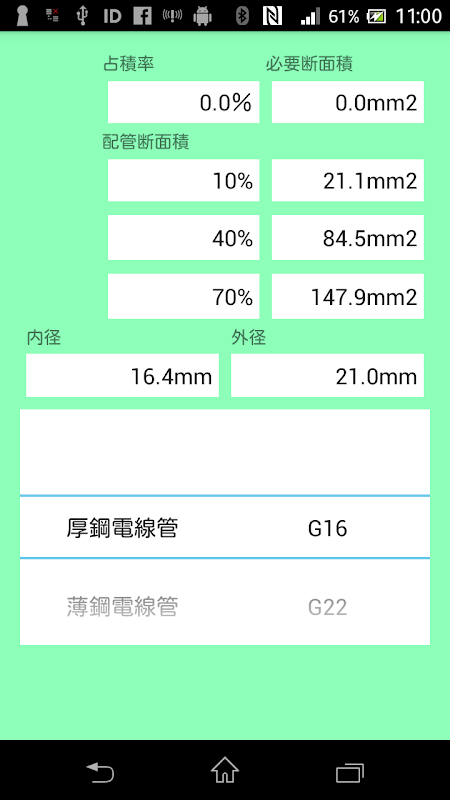

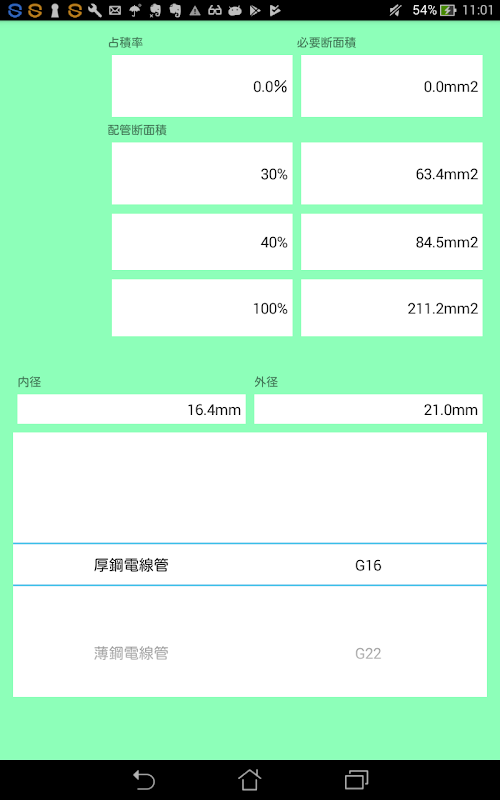

Selection of conduit (green screen)

In drum picker a pipe type and size that you want to use

         The cross-sectional area of ​​the pipe combined to configure and select

         It shows.

Suitable compares the pipe cross-sectional area required cross-sectional area

         Please select the pipe size.

Space factor is, for the piping of the currently selected

         The percentage of the required cross-sectional area.

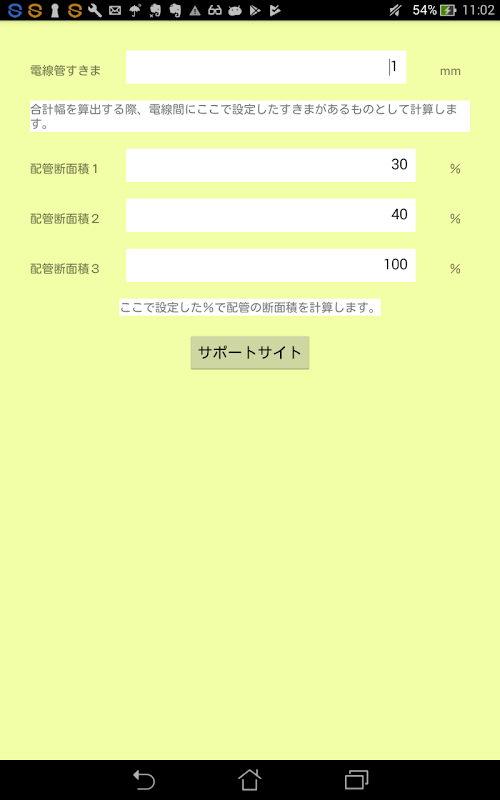

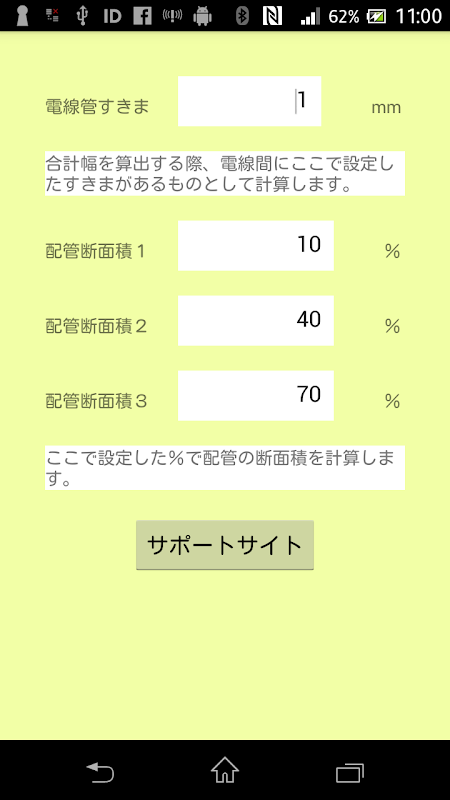

Setting the automatic calculation (yellow screen)

You can set the coefficient at the time of automatic calculation.

When calculating the electric wire between gap = total width,

                            Set here between the wire and the wire

And then calculated as there is a gap.

Pipe cross-sectional area 1-3 = a rate set here

                                    The cross-sectional area to calculate.

Ratio to match the ease of use

                                    Please set.

■ Notes

Even if from the calculated numerical value unforeseen circumstances has occurred

Us, please use on the understanding does not assume any responsibility.

◆ bug reports and questions, contact us thank you in the comments.
