AC Series Circuits

AC Series Circuits

Nathan Chao
Aug 4, 2017
  • 1.5 MB

    File Size

  • Android 1.6+

    Android OS

About AC Series Circuits

Step by step tutorial solutions for ac seres RLC circuits.

This app solves a series RLC circuit for all currents and voltages in 3 different configurations for flexible use. In addition to single component voltages, it solves for all branch voltage comhinations like VR+VC, VR+VL and VL+VC.

It is a good introduction to the solution of ac series ciruits since you can start with just 2 elements by setting the 3 element to 0. When a capacitor is set to 0, it will be replaced by a short.

Show More

What's new in the latest 3.0

Last updated on 2017-08-04
Corrected error, added additional functionality allowing entry of reactances in ohms, alsp linked to Youtube videos.
Show More

Videos and Screenshots

  • AC Series Circuits poster

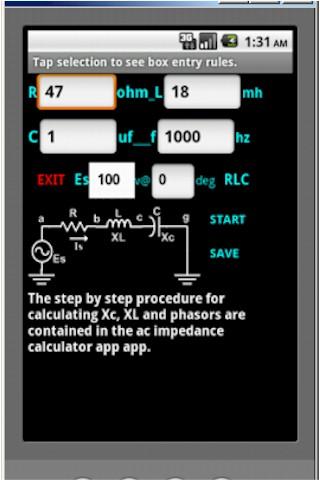

  • AC Series Circuits screenshot 1

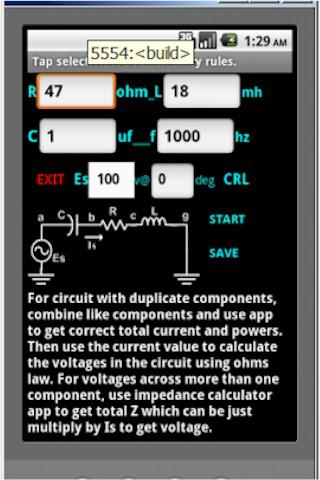

  • AC Series Circuits screenshot 2

AC Series Circuits APK Information

Latest Version
3.0
Category
Education
Android OS
Android 1.6+
File Size
1.5 MB
Developer
Nathan Chao
