AirMobile2

AIRPACK (recuperator)

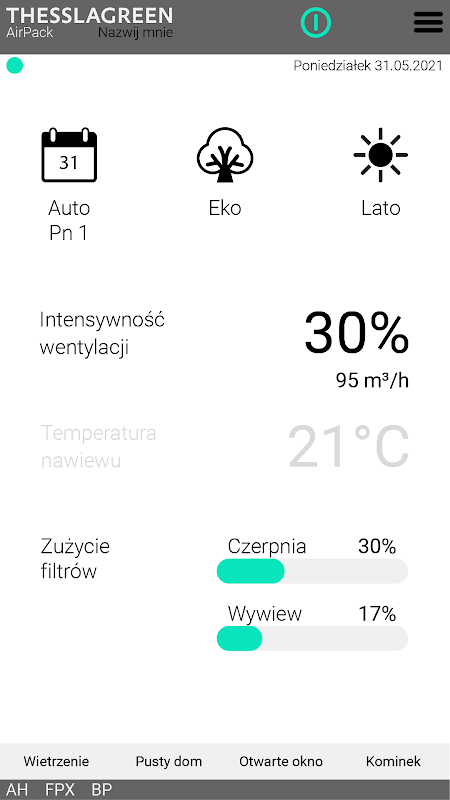

MAIN SCREEN – this is your panel where you can:

• switch the recuperator operation between operating modes (Automatic, Manual, Momentary) - depending on needs

• activate additional functions (Airing, Empty house, Open window, Fireplace)

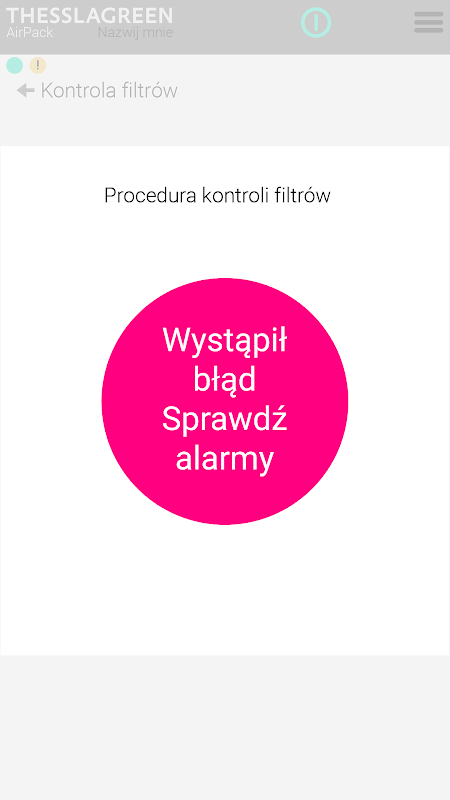

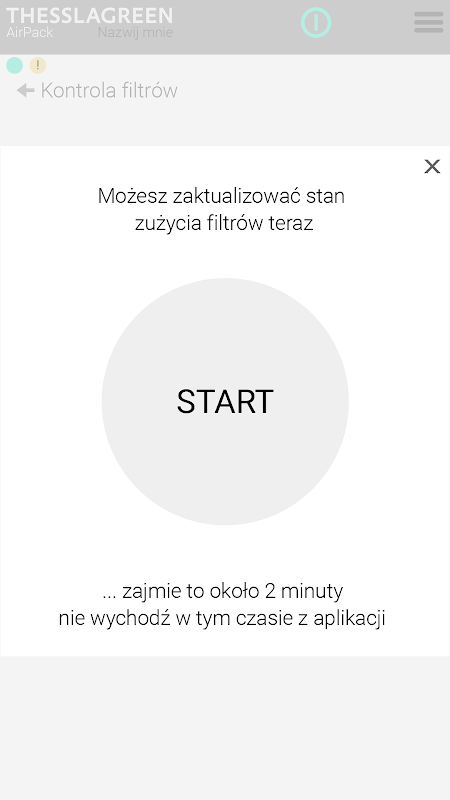

• control filter consumption when your AirPack is AirPack4 Energy++ which has an AFC module

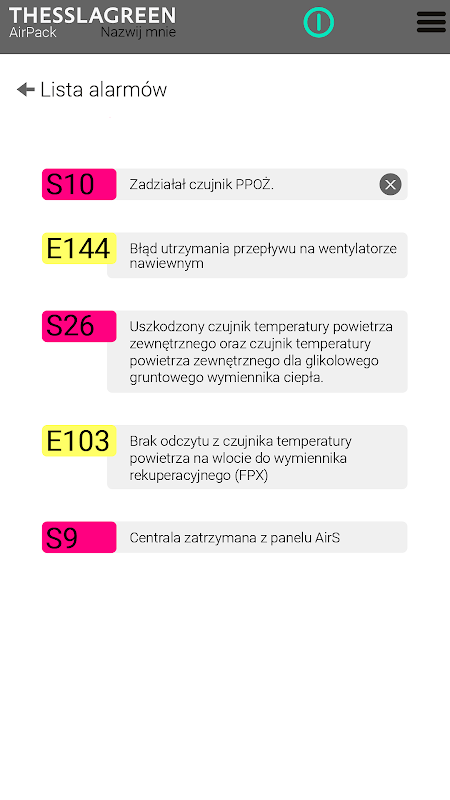

• find out more by clicking on the alarm icons when they appear

• see the current status of device functions

• and of course turn the control panel on/off

MENU

• Home – this will take you back to the home screen

• Visualizations – check the current parameters of the device

• Settings – you can change the settings*: Filters, Operating modes, Additional functions, Bypass, GHE*

• Info – here you will find data about the recuperator

• Your devices – add a new device and see a list of your devices with the most important information

*menu items depend on the added installation elements.

INSTRUCTIONS

1.

To start: register your device and give it a name.

2.

Adjust the recuperator's operating rhythm to your lifestyle. In the Automatic mode settings (weekly program) - set the parameters of a maximum of 4 time segments, for each day of the week, according to daily demand. For a more active time of day - set the ventilation intensity higher, for a less active time - lower, and if you want to ventilate the house before returning, set additional ventilation. The better you adjust the ventilation parameters to the activities in your home, the more benefits you will receive from it.

3.

It is known that sometimes things vary, and even the best-set automatic mode will not always respond to our needs. In such situations, switch to Manual or Temporary Mode, or use additional functions, adjusting the parameters to your temporary needs.

4.

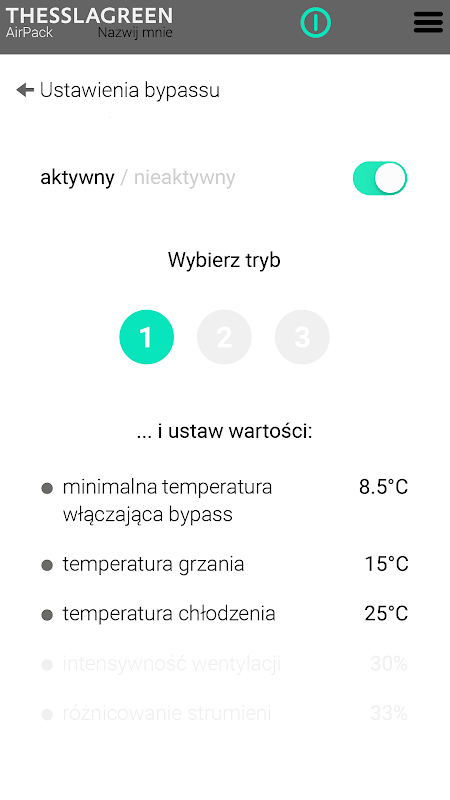

And why the Bypass function? This is so that the air flows directly into the building, bypassing the heat exchanger. This way, you can use outside air to cool the rooms in summer when the outside temperature is lower than inside the building. And during the transition period, you will heat them when the temperature outside is higher than inside the building. Decide when you want Bypass to activate.

5.

Adjust the settings of Modes, Additional Functions, GWC or Bypass to get the best use of the capabilities of your devices.

6.

You can also add other devices, for example the Particle+ central air purifier, by adding them in the - Your devices menu.

PARTICLE+ (air purifier)

MAIN SCREEN – this is your panel where:

• turn your Particle+ on or off

• alarm icons will inform you about errors

• you can switch the purifier's operation between Automatic and Manual operating modes

• you will change the Filtration Intensity for Manual Mode

• set the PM Concentration level for Automatic Mode

• you will see the current filter consumption

• the PmSensor Out sensor informs you about the dust concentration in the air flowing from Particle+ into your home

• and PmSensor In will inform you about the dust concentration of the external air flowing into Particle+, if you additionally equip your installation with it

MENU

• Home – this will take you back to the home screen

• Visualizations – you will see the current parameters of the device

• Settings – you will change the settings for Operating Modes, Dust Type and Automatic Filter Control

• Info – here you can check data about the purifier

• Your devices – add a new device and see a list of your devices with the most important information
