Autolis 2.0

The AUTOLIS 2.0 mobile app is designed to manage and receive data from AVTOLIS anti-theft systems (hereinafter referred to as "systems") via GSM communication channels. Manage your security system and monitor your vehicle remotely, receiving up-to-date and visual information on your smartphone screen at any time.

The AUTOLIS 2.0 app allows you to register multiple accounts on the server, switch between them, and has no limit on the number of systems connected to a single account.

App Structure

The app consists of the following sections:

• Management

• Geolocation

• Events

• Trips

• Settings

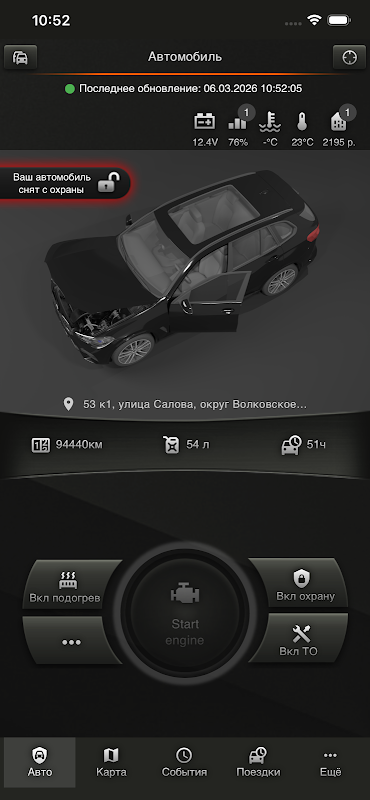

Management

The "Management" section is the app's main screen. When the app is connected to the AVTOLIS server, this section displays:

• Current system operating mode

• Sensor readings, balance status, ignition status, etc. (over 20 indicators in total)

• Interactive 3D model of the car, displaying engine and door status, as well as current alarms in security mode

• Control panel with command buttons

The application allows you to flexibly customize the display of the information you need and place specific control commands on the screen.

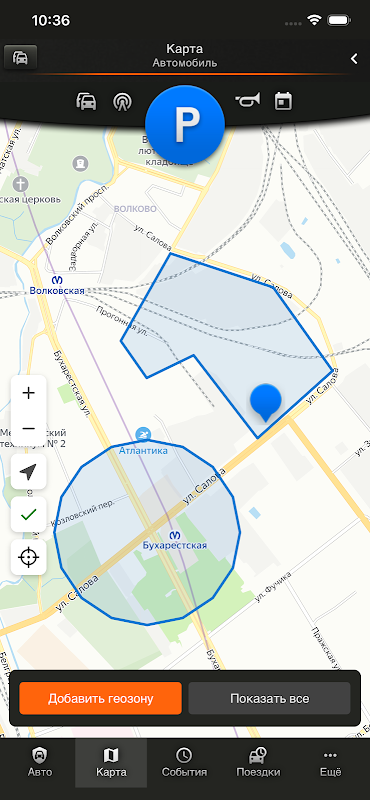

Geolocation

The following controls are available in the "Geolocation" section:

• Request button for the app user's current location (via LBS and GPS)

• The Geofences button allows you to create any number of geofences of any shape for receiving push notifications about entry/exit

• The Routes button displays a 1-day, 3-day, or 7-day route on the map. This function is activated when the AUTOLIS Navi module is connected to the system.

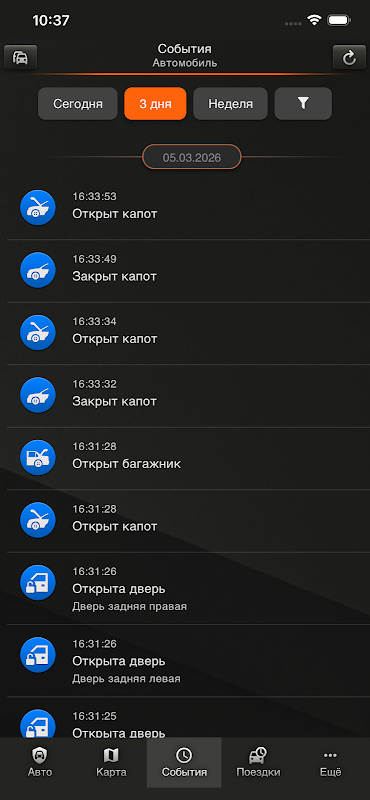

Events

This section displays over 100 events recorded by the system, with date and time information, accurate to the second. The user can use a filter to select the type of events to display and the period for which they should be displayed: daily, weekly, or a custom period.

Settings

The "Settings" section contains:

• A list of connected vehicles, with the ability to add new ones

• App authorization settings

• Information about the installed app version

• A screen for selecting the necessary control buttons and indicators displayed on the app's main screen

• System sensor sensitivity settings

• Settings for receiving PUSH notifications from the system

• System sound signal settings: alarms and arming/disarming

• Automatic engine start and heater settings*

*if the vehicle has remote/automatic engine start and heater control.

The following settings are available for starting the engine and heater control:

• Setting the engine and heater runtime;

• Starting the engine and heater according to a custom schedule;

• Starting the engine based on supply voltage;

• Starting the engine based on temperature;

• Hybrid start: pre-activating the heater and then automatically starting the engine

Security

The app includes safety measures. The highest level of security requires the user to enter the individual password specified during registration when logging into the app, and a mandatory control code or PIN to execute commands. The system is controlled from the app via the secure HTTPS data transfer protocol.

AUTOLIS – comfortable security systems!
