Beams Analysis

Analyze indeterminate beams by using Slope Deflection Method

Analyze indeterminate beams by using Slope Deflection Method app is especially useful for civil engineers, mechanical engineers, architects and students who wish to design 1D hyperstatic frames

You can input and edit geometry, forces, supports, loadcases etc. The calculation results are performed instantly.

Main features include:

✓ uniform and trapezoidal loads

✓ point and moment loads

✓ Fixed and hinge connections at beam ends

✓ Fixed, hinge and roller supports in any direction

✓ Add or edit materials

✓ Add or edit sections

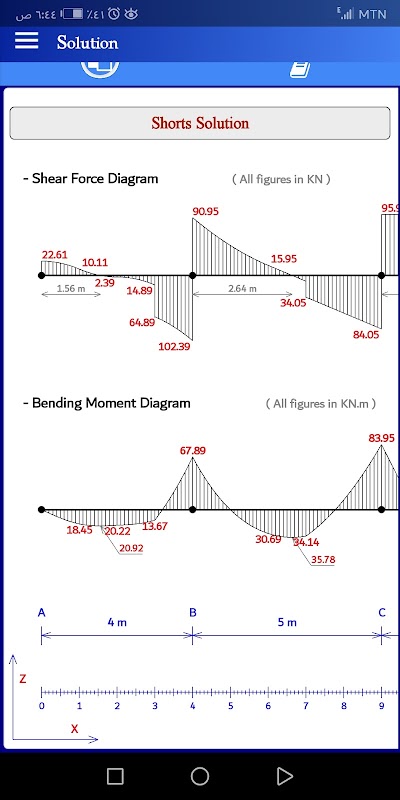

✓ Moment, Shear, and Reaction

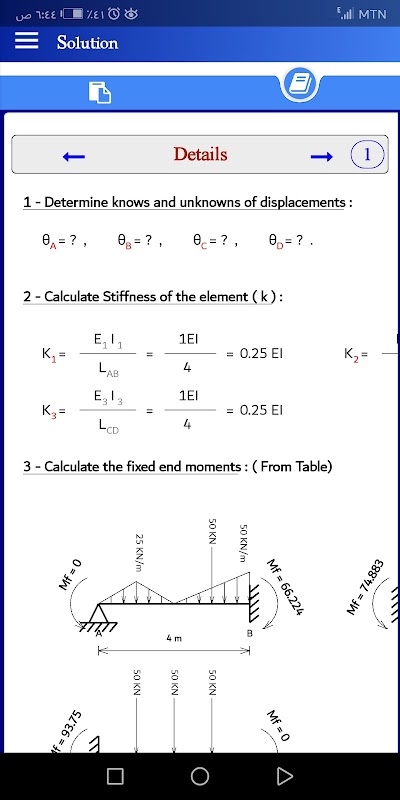

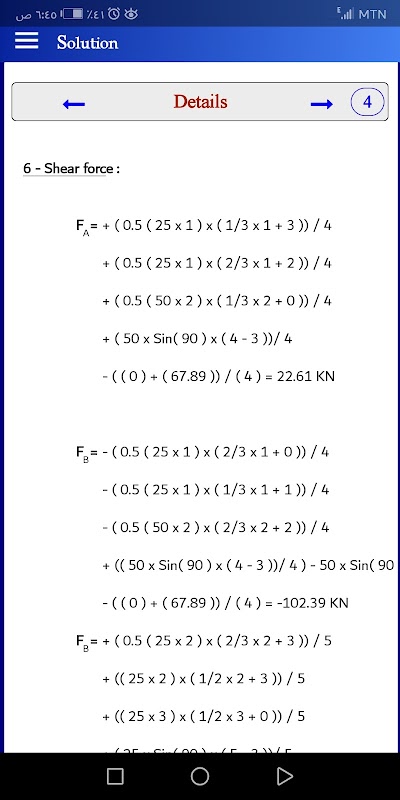

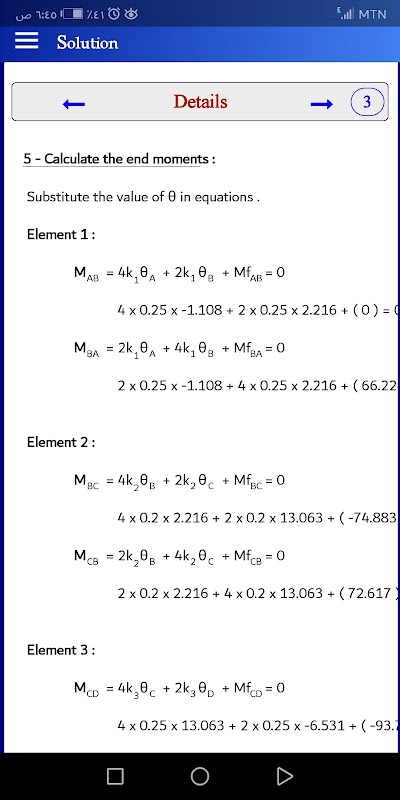

Manually take out the solution steps.

27-page summary in which slope deflection

analysis is explained.

Convert units between SI and US system.

- User powers :

This app lets you analyze packages 33 times for free after which you must buy the app.

You only have to pay once.

- Application powers :

The app must be allowed to store .

The internet should be turned on the first time after installation and when you buy only after it does not need internet .

- Disclaimer :

You expressly understand and agree that your use of the application and the data from the application is at your sole risk and that the application is provided 'as is' and 'as available' without warranty of any kind.

Copyright, distribution and intellectual property preserved by ENG/Abdalrub M.H Alyatim .

Using the app illegally may expose you to legal liability.

------------------------------------------------------------------

If you have any feedback, questions, or concerns, please email us at:

[email protected] .

beams analysis was tested under the supervision of specialist

experts and consultants and the results were 100% correct.

This app was created with a personal effort:

Eng/ Abdalrub M.H Al-yatim .
