About Boolean lab

Interactive work with the log. functions and gates (OR, AND, XOR, SR, JK, ...).

Boolean lab - a small laboratory in your mobile / tablet.

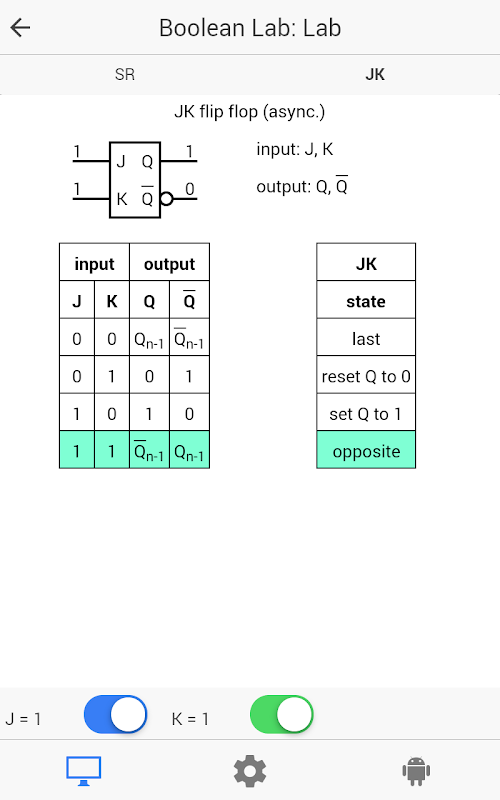

Interactive and visual explanation of the boolean variables, logic functions and their behavior. For each logic function is shown its type, truth table and gate. Everything is interactive - input variables change is immediately reflected in the truth table and on the input(s) and output(s) of gates.

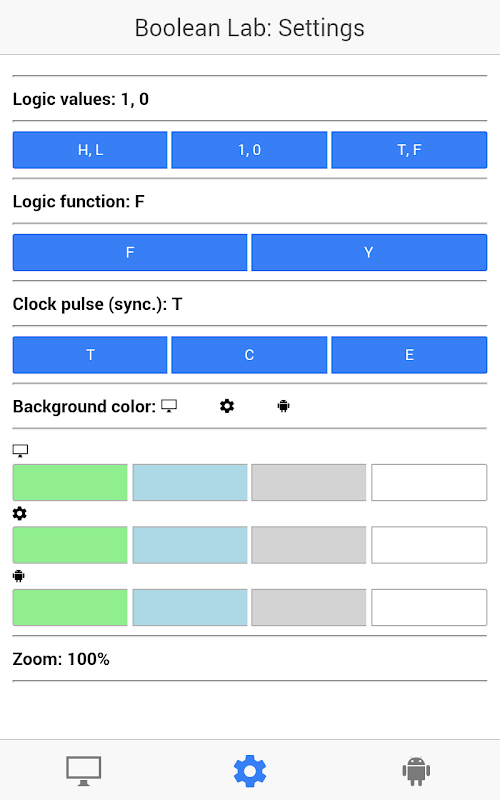

You can set the label logical values either in shape or H-L 1-0 or T-F, marking the log. function F or Y, the indication of the clock signal T, C or E.

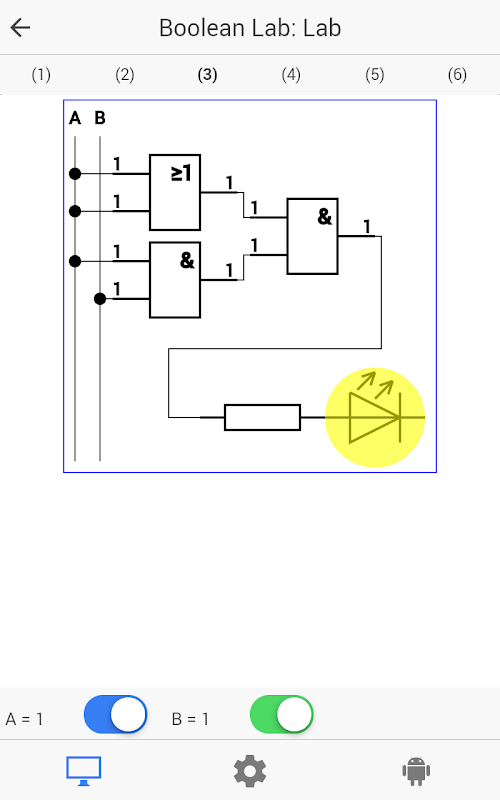

It contains 24 interactive engagement logic circuits.

What's new in the latest 2.2.0

Last updated on 2017-03-21

version 2.2
Added: transation to French - Lionel Van Winnendaele

version 2.1
Added: waveforms for gates OR, NOR, AND, NAND, XOR, XNOR

version 2.0.6
Small visual changes

version 2.0.4
Added: Boolean algebra

version 2.0.2
Small fix of circuits 23 and 24.

version 2.0.0
Completely revised version. Added Synchronous and asynchronous logic elements (gates). Added 24 interactive engagement logic circuits.
