Building Acoustics Assistant

BA Assistant application supports Svantek sound level meters equipped with the Bluetooth® interface, e.g. SVAN 977 and SVAN 979

The Building Acoustics smartphone application guides the user through the sound insulation measurement procedure in accordance with ISO 16283.

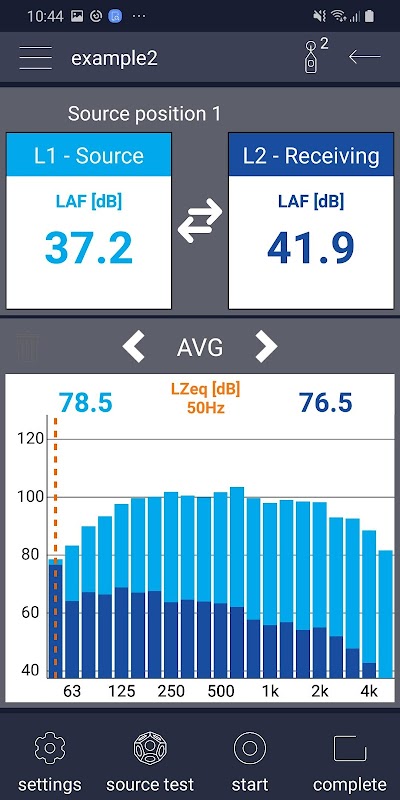

Sound insulation results are presented on the display and in the form of a report compliant with the ISO requirements. Application can be used with SP 95 Impact Ball for sound insulation testing in light weight structures.

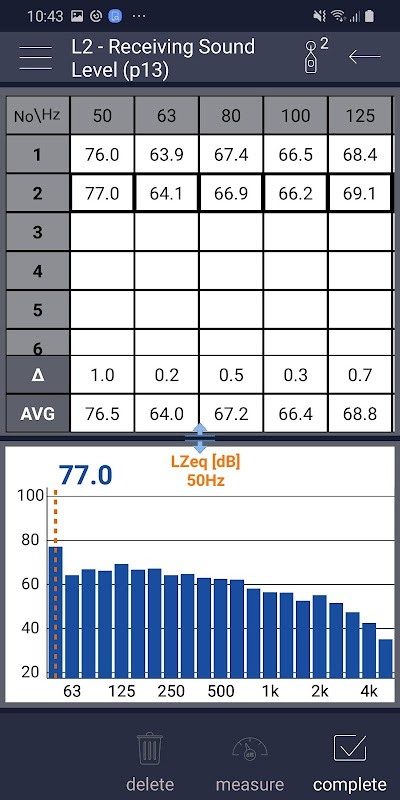

A project containing measurements from the source and receiving rooms for different sound source positions is created during the measurement. The project is saved in the memory of the sound meter along with the measurement files.

The application enables to add PHOTOS and VOICE comments to the measurement projects.

For the Speech Transmission Index (STIPA) measurement with SVAN 979, the application provides a procedure in accordance to IEC 60268-16:2011. The application uses the Bluetooth® interface to connect to SVAN 979 where STIPA results are presented on the display and saved in the memory.

Find more information and tutorials at www.svantek.com and our YouTube channel.

List of supported devices:

- SVAN 979

- SVAN 977A

- SVAN 977C

- SVAN 977CE

- SV 977D

- SV 973

- SV 971A
