EDSP4-31BT

1.OEM system integration sound processor perfect for OEM factory speaker tuning

2.Built-in 4.2 lossless Bluetooth & SQ player

3.Built-in USB port to support MP3 lossless audio file

4.64-bit DSP with floating point processing technology

5.2CH low and/or 4CH high-level inputs, 8CH low outputs

6.8 channel infinitely adjustable digitally processed channels

7.High Resolution Music signal from USB source

8.Sources: Bluetooth audio, high-level input (head unit signal), Stereo RCA analog inputs (aftermarket head unit signal)

9.Built-in 4x75w amplifier with infinitely adjustable digitally processed channels

10.31 bands of independent equalization per channel

11.Real time parametric and graphic equalizer

12.Frequency range 20Hz – 20KHz, 1Hz steps

13.Adjustable Gain: -12.0dB – + 12.0Db for all 31 bands

14.High pass, low pass and bandpass, independent filters per channel

15.Infinite filter crossover points between 20Hz – 20KHz

16.Crossover filter slopes selectable at: 6dB, 12dB, 18dB, 24dB, 30dB, 36dB, 42dB, 48dB

17.Up to 20ms/692ms of variable time delay per channel

18.0 deg. Or 180 deg. Direct phase adjustment per channel

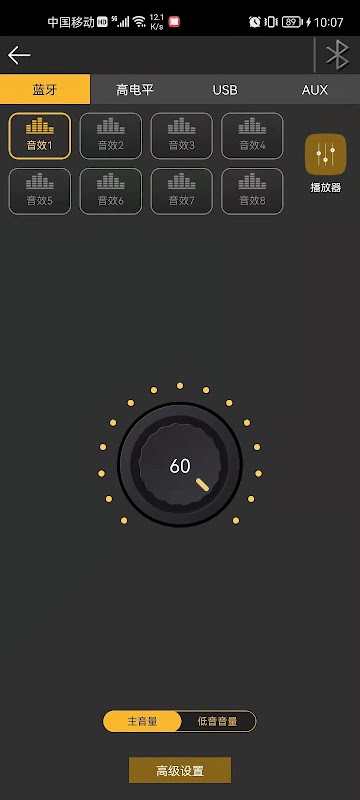

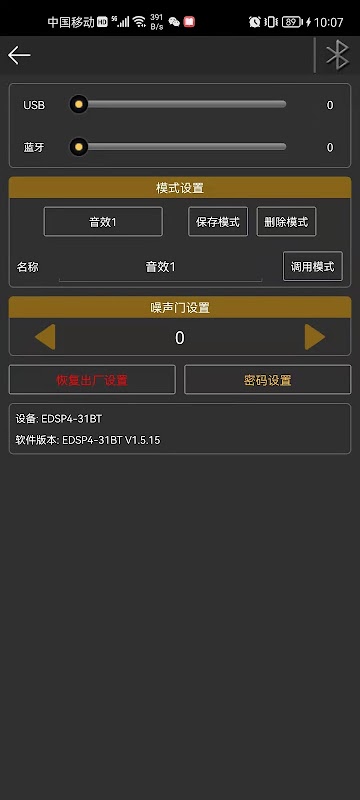

19.Complete system control through smartphone app connection or Advanced tuning capability when connected to your PC

20.IOS and Android compatible app

21.6 tuning preset memory

22.Compatible size design for easy installation
