EN AISC Combined Section LITE

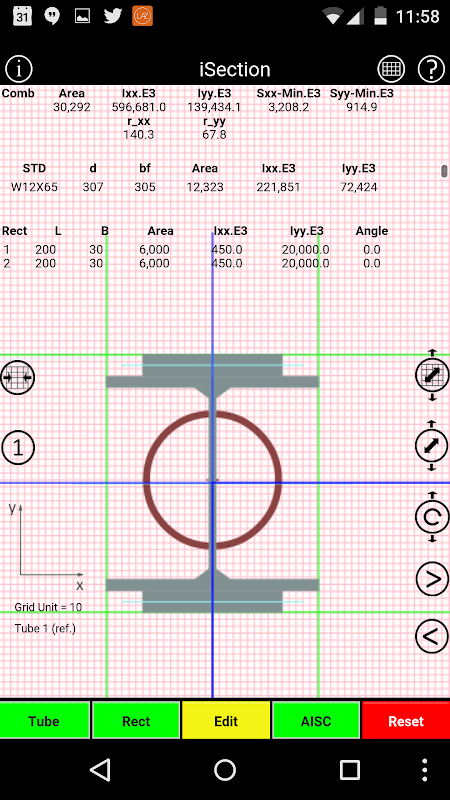

The App calculates the area, second moment area (moment inertia) and moduli of inertia of every component and combination of AISC and EN standard beams, tubes and rectangles. The graphical representation and touch-and-drag interface make locating the components easy.

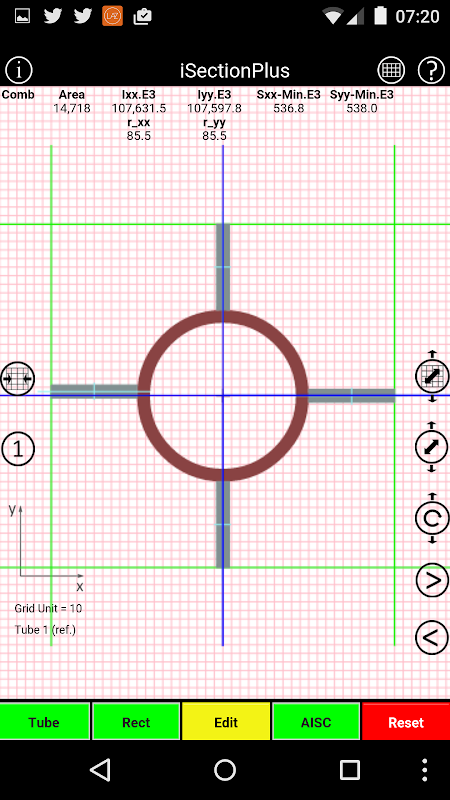

During the drag operation, the app simultaneously calculates the structural properties. Rectangular components can be rotated to any position.

This version (v1) uses metric units (Length in mm).

Major Features:

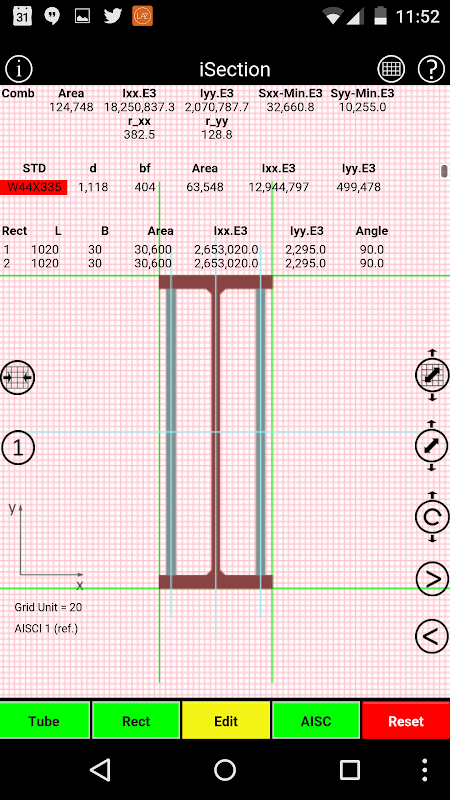

- Add a component by tapping on the buttons: "STD", "EN", "AISC", “Tube” or “Rect”.

- Use “>” and “<” buttons to activate a component (red colored), change behavior and edit a

component.

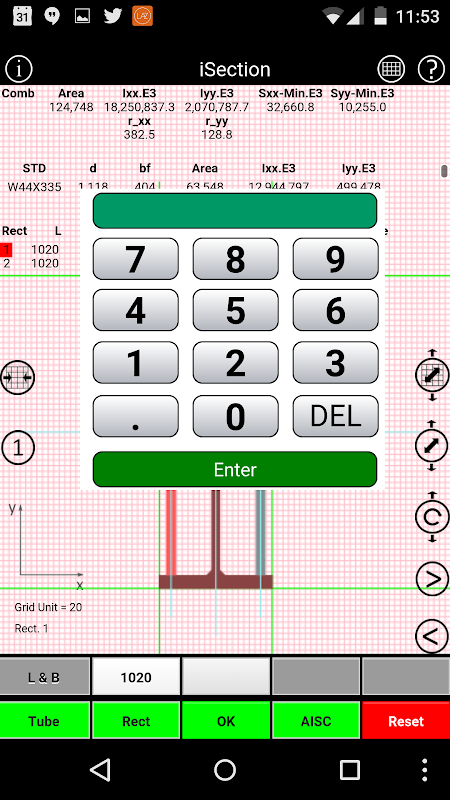

- Tap “Edit” button to change an ‘active’ component dimension.

- Move an ‘active’ component by dragging on the screen. Move the section by

activating component reference #1.

- component movement can be snapped to full and half grid scale. Adjust grid scale to change snap

effect. Snap on/off button is available.

- Rotating rectangle snaps every 5 degrees.

- Drag “zoom” button to zoom in/out the entire section.
