ESP32_Flasher

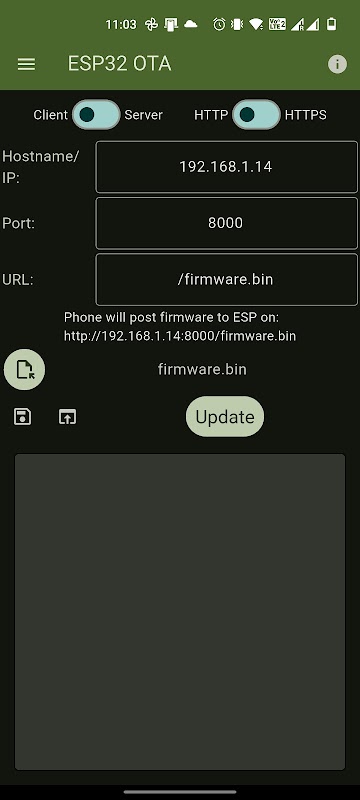

Flash / Read / Erase / OTAUpdate ESP32 - ESP8266 - ESP32S2 - ESP32S3 - ESP32C2 - ESP32C3 - ESP32C5 - ESP32C6 - ESP32H2 -ESP32P4 - BW16 boards from android app over USB (UART and OTG supported).

Automatic bootloader mode (configurable)

Supports many baudrate and compression disable mode

Serial Monitor for both text and plot.

How to operate:

Select your device from the list, you can disable Bootloader auto mod if not supported by your device

Browse and select your firmware / bootloader / partition scheme files from your smartphone memory,

Set the offset for each binary file you want to flash (you may see them in the output of esptool compilation...)

Put your device into Bootloader mode (use BOOT-RST buttons)

Hit the flash/erase button to flash them to your attached ESP32/ESP8266/ESP32S2/ESP32S3/ESP32C3/ESP32C5/ESP32C6/BW16 via USB.

Before the flash/erase begins, you can cancel operation (may need to wait before the procedure completely cancel)

Tested on : ESP32 WROOM32 - ESP8266 miniD1 - ESP32S2 - ESP32S3 - ESP32C3mini - ESP32C5 - ESP32C6 - ESP32H2 - BW16

Check my other app that uses this feature : ESP32NetworkToolbox
