HMI Modbus

Sagram.net

Dec 6, 2023

10.0
1 Reviews
13.3 MB
File Size
Android 4.4+
Android OS

Download APK

How to install XAPK / APK file

About HMI Modbus

Provides communication protocols Modbus TCP/IP and RTU (TCP and Bluetooth)

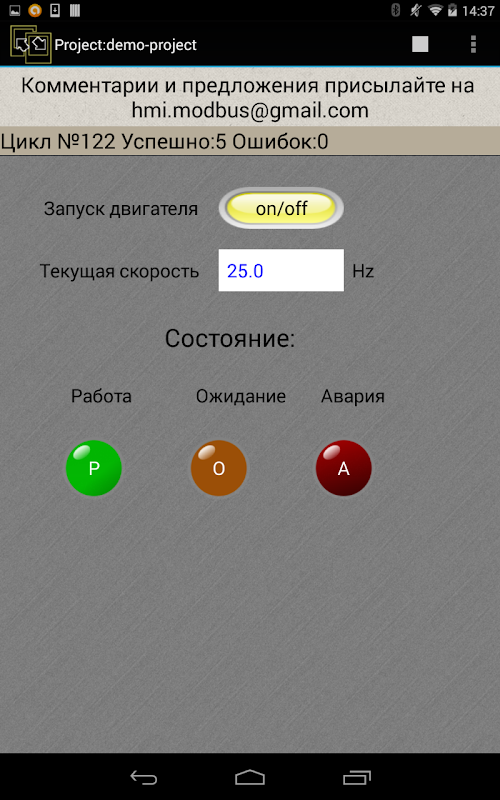

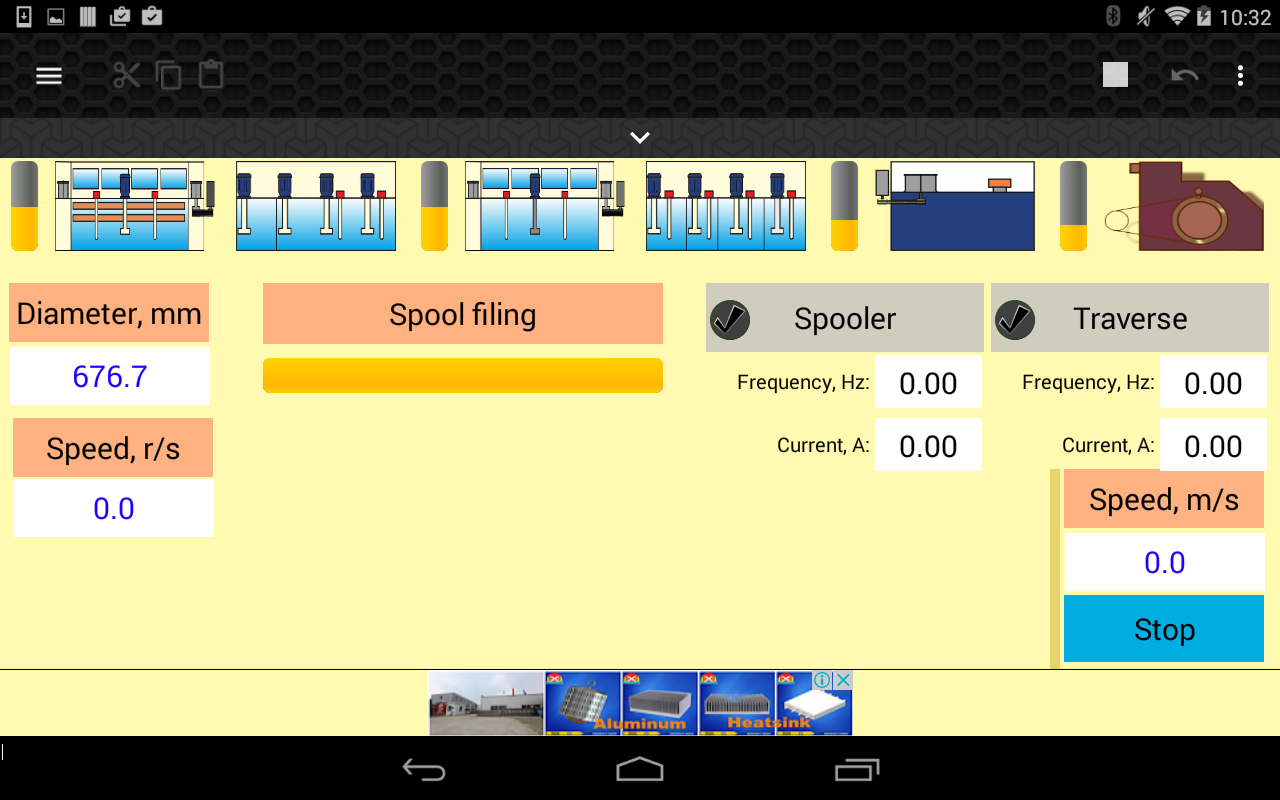

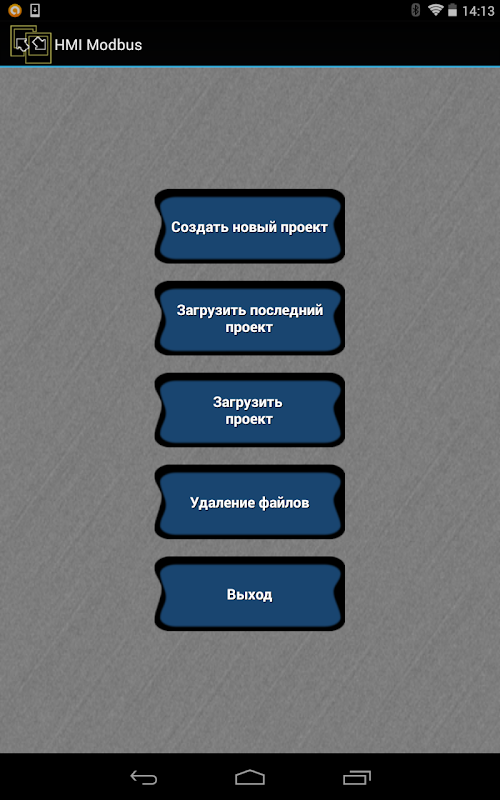

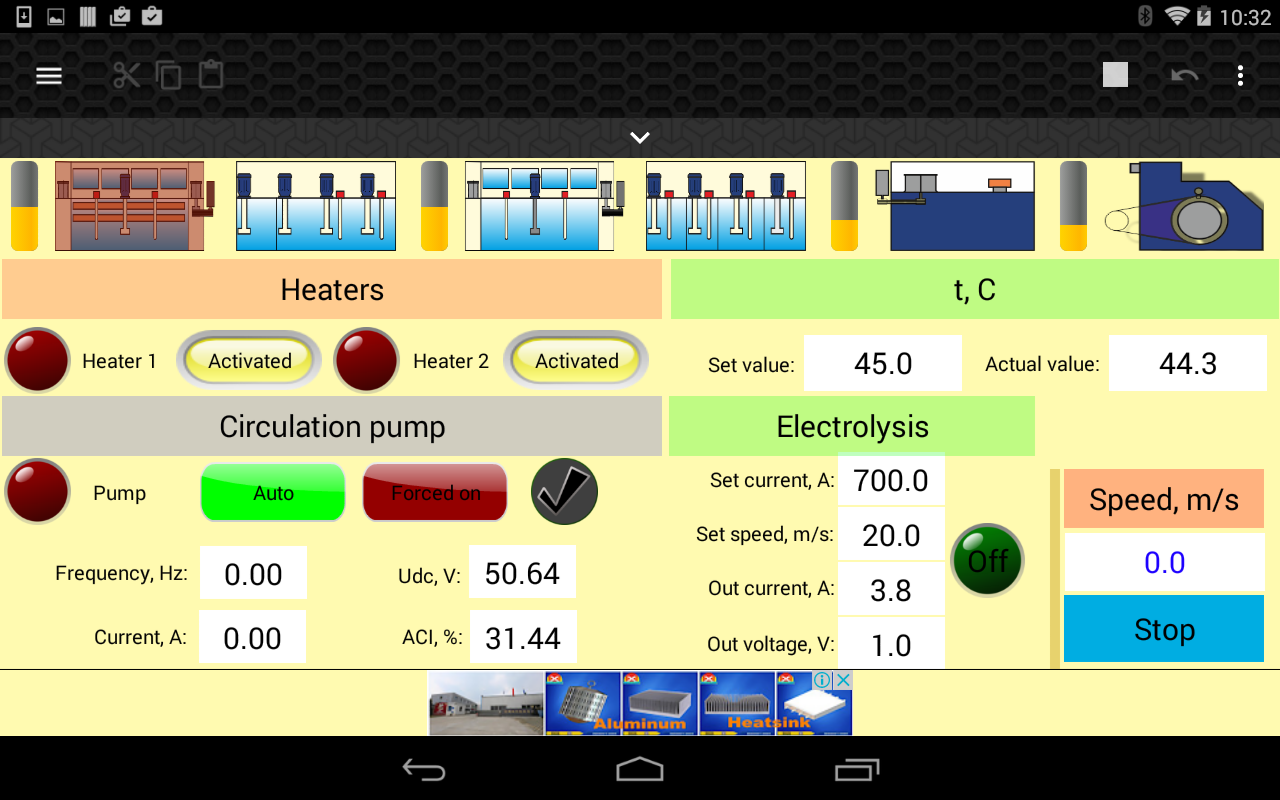

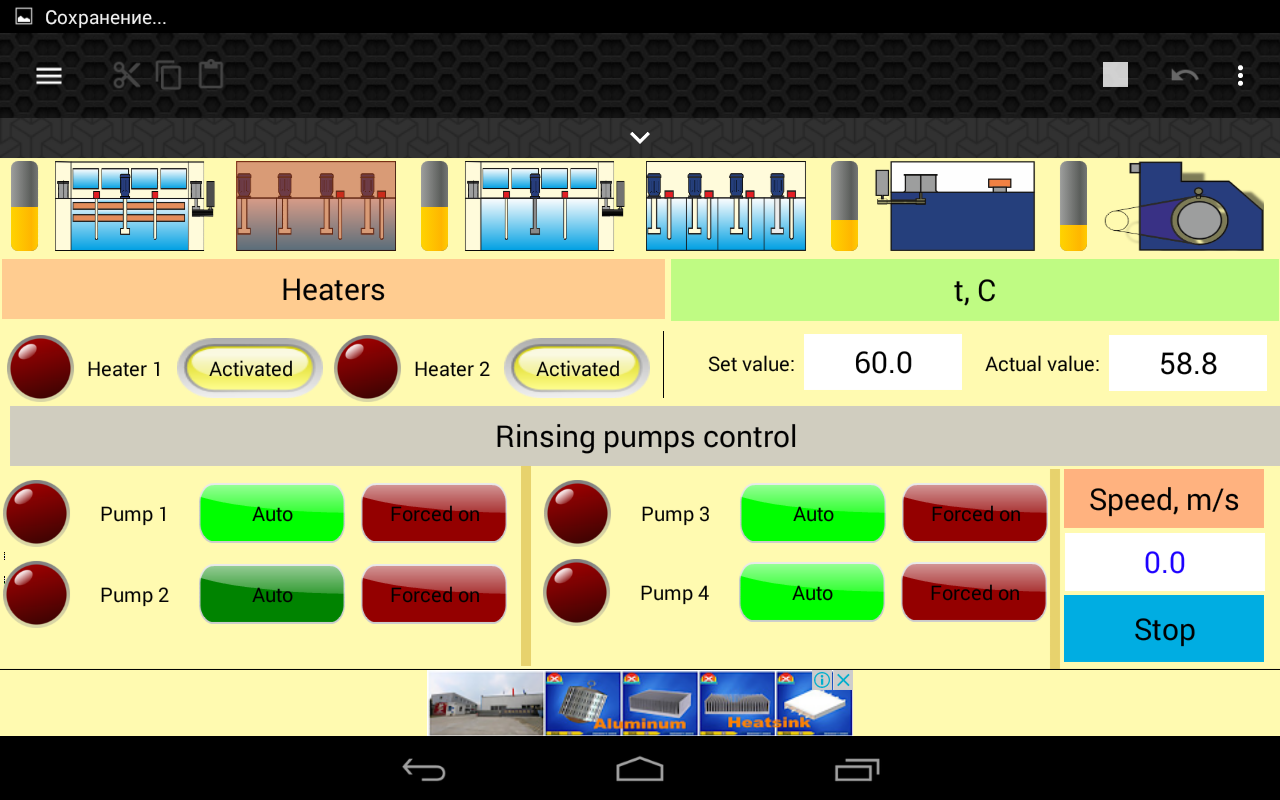

This software can be used as replacement for HMI operator panel. Some functions of Scada-systems such as reading and writing different data types are provided. Modbus TCP/IP protocol is supported. In order to use Modbus RTU/ASCII additional Modbus converter (for example tgw-715) is necessary.

If you need only viewer: https://play.google.com/store/apps/details?id=net.sagram.hmi_modbus_viewer.

Manual: https://drive.google.com/drive/folders/0B_ogMSvuFCPAcUgyZURYaDF1ZTg?usp=sharing

Also implemented communication through Bluetooth (Modbus RTU), can be used for communication via Bluetooth shield for Arduino and other devices.

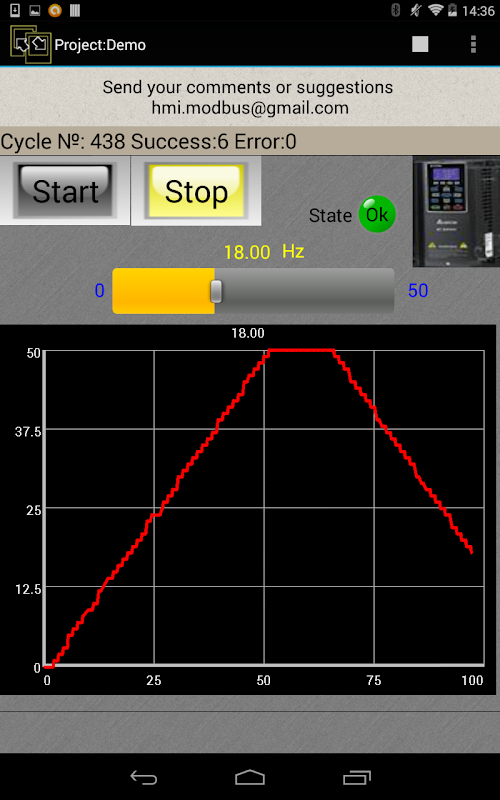

Viewing requests and responses in Hex format in the log.

Program interface is based on Drag and Drop principle. Long tap on element in editing mode is used to move that element within workspace.

Most external HMI are using port no. 8000, PLC port usually set to 502.

Read/write functions currently supports Int 16, Int 32, Float, Float swapped, Boolean data types.

Software was tested on HMI panel Weintek MT6070iH, Delta DVP20EX2 PLC, Siemens s7-1200 PLC
