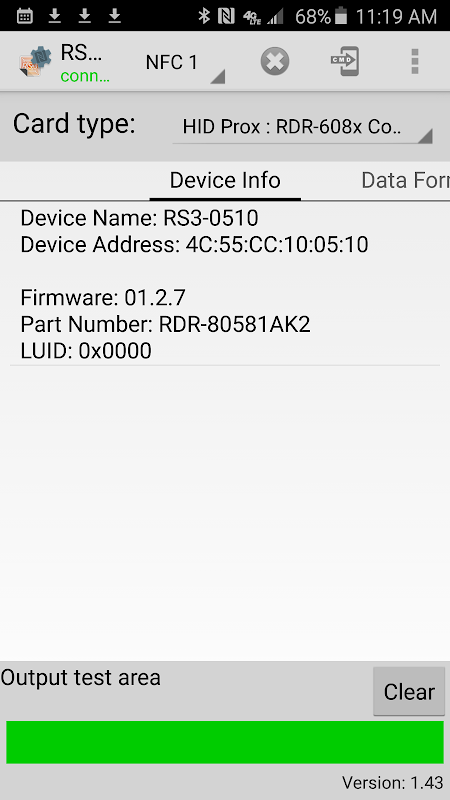

RS3 NFC Setup

Setup Bluetooth Smart NFC reader via Bluetooth Low Energy (BLE)

This app REQUIRES the idChamp Bluetooth Smart (BLE) NFC reader/scanner with firmware 2.0 on Android 4.4 or later (with working BLE stack)

It's used for setup for NFC for iClass, PROX, ICODE, MiFare, AWID, & More.

Quickly and easily change settings.

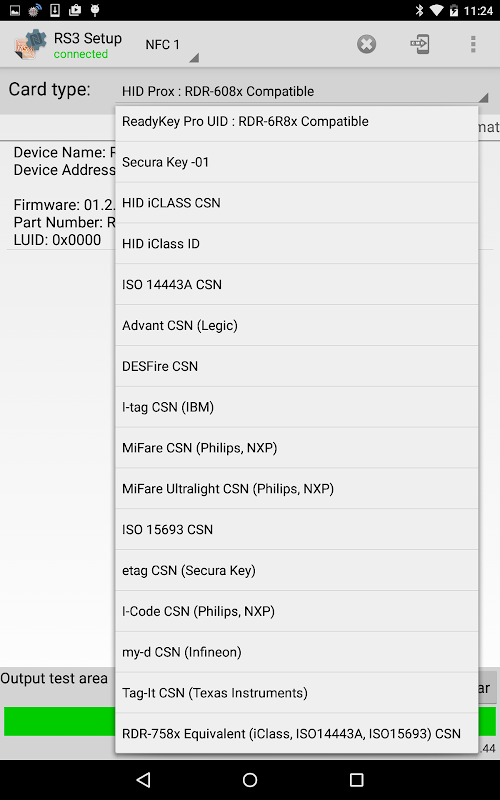

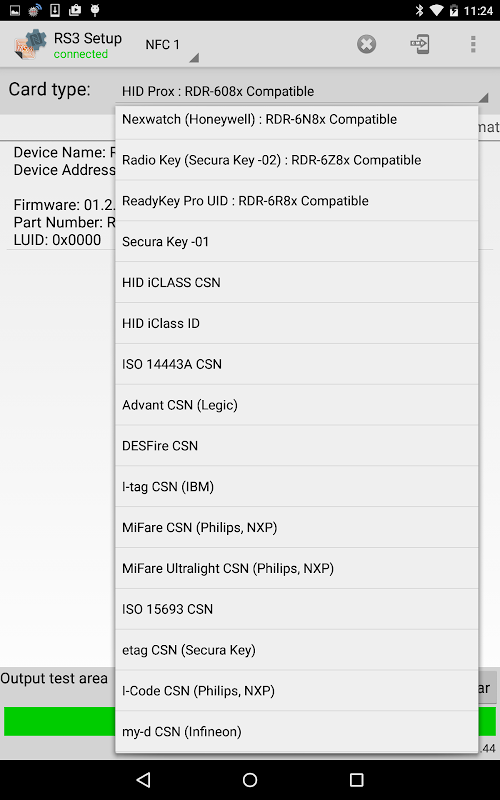

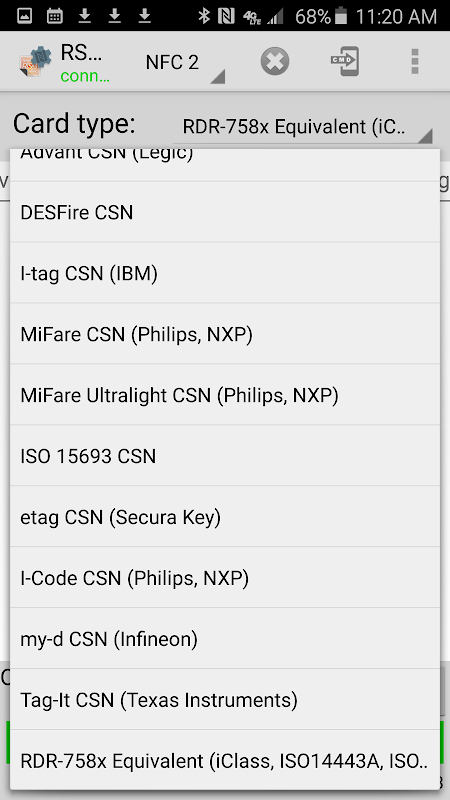

Select card type for ISO15693 & ISO14444A CSN, iClass CSN, Tag-It CSN, my-d CSN (Infineon), I-Code CSN (Philips, NXP), etag CSN (Secura Key), MiFare Ultralight CSN (Philips, NXP), I-tag CSN (IBM), DESFire CSN, Advant CSN (Legic), HID iClass ID, Secura Key -01, ReadyKey Pro UID, Radio Key (Secura Key -02), Nexwatch (Honeywell), NexKey, Quadrakey, KeyMate, 2Smart Key (Honeywell), Keri UID, Pyramid (Farpointe Data) PSC-1 26 Bit, Keri PSC-1 26 bit, Farpointe Data (Pyramid) PSC-1 26 bit, Keri NXT UID, ioProx (Kantech), Indala ECR Custom, Indala ASP+ Custom, Indala ASP+ UID (Motorola), Indala ASP Custom, Indala ASP UID (Motorola), Indala ASP 26 bit (Motorola), ID Teck, HiTag 2, HiTag 2 Alternate, HiTag 1 & S, HiTag 1 & S Alternate, HID Prox UID, HID Prox, GProx-II UID, EM 410x Alternate, Rosslare, EM 410x, DIGITAG, Paradox, CDVI, CASI-RUSCO (GE Security, UTC), Russwin UID, Cardax UID, Awid

Setup card hold time (determine how long card must be present for read)

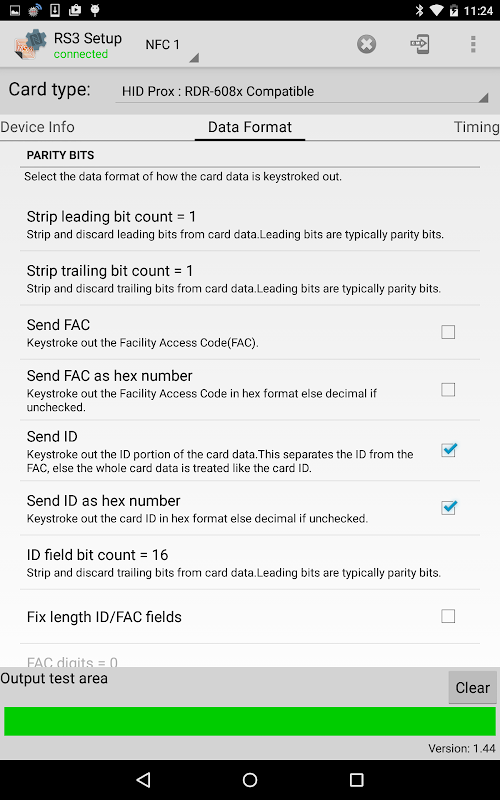

Setup output format between decimal and HEX, control Wiegand bits output format, strip leading and trailing bits, enable/disable FAC (Facility Access Code), Reverse / Invert Wiegand bits, and more.

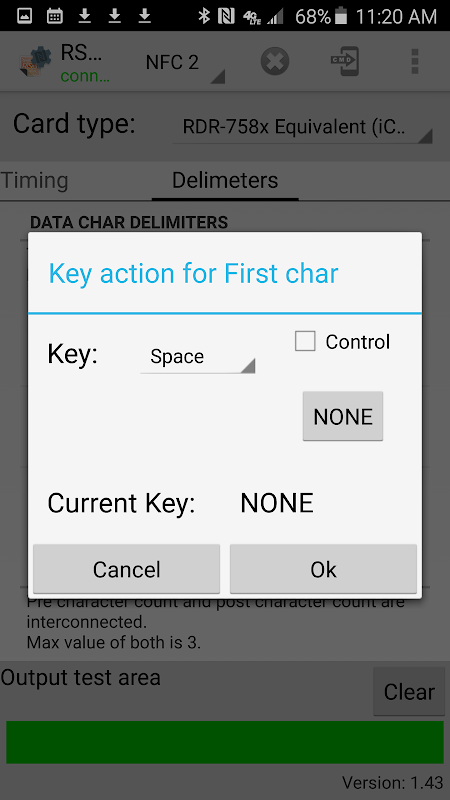

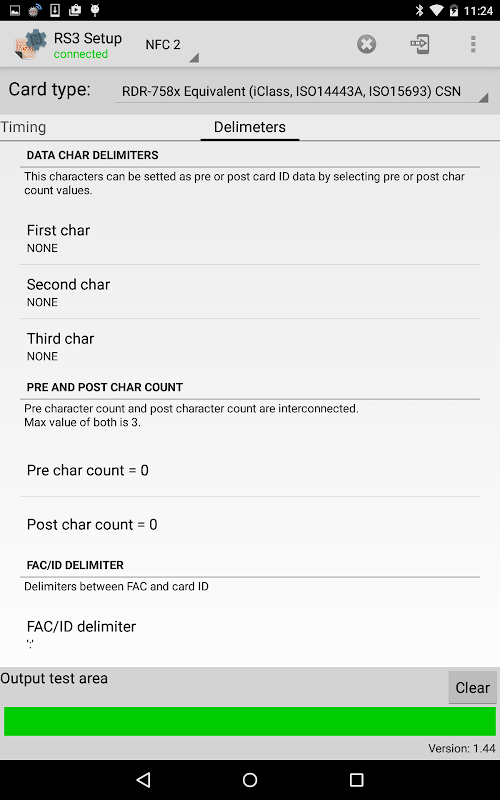

Setup delimiters for character(s) sent before and after each scan for using the RS3 NFC reader in keyboard simulation mode.

Settings are stored in RS3 unit flash memory so settings are persistent.
