SMART HUD(스마트 허드)

main function

Main functions of LED Head Up Display terminal to guide speeding, signal violations, and other enforcement cameras

- Camera beep sound and LED indication guidance for speeding and signal violations in the child protection zone

- Speeding and signal violation enforcement camera beep sound and LED indication guidance

- Section enforcement camera beep sound and LED indication guidance

- Guidance of average speed in section intermittent section

- Speed ​​limit LED indication guide

- Beep sound and LED indication guidance when speed limit is exceeded

- Display remaining distance from camera position

- Vehicle current speed LED indication

- LED automatic brightness control using the illuminance sensor

- Current time display

- Wireless DB update using smartphone application

- Terminal environment setting using smartphone application

detailed description

SMART HUD is an LED Head Up Display terminal and supports DB update and terminal environment setting function to guide speeding and signal violation cameras with beep sound and LED display.

Displays the current speed and time based on GPS, and the remaining distance to the camera through LEDs.

It displays and guides stationary camera guidance, mobile camera guidance, section enforcement camera guidance, and child protection area cameras with beep sounds and icons.

[ Information on speed cameras and signal speed cameras in child protection areas ]

In the child protection area, the child protection area speed camera, signal, and speed camera are informed in advance and the remaining distance is displayed through the LED.

In addition, when the speed limit is exceeded, the speed limit icon flashes with a warning sound to inform the driver that the speed limit is exceeded.

[ Camera guide for speeding, signal speeding, section enforcement, etc.]

Speeding, signal speeding, and section enforcement cameras in the driving direction are informed with icons and beep sounds in advance, and the remaining distance is displayed through LEDs.

In addition, when the speed limit is exceeded, the speed limit icon flashes with a warning sound to inform the driver that the speed limit is exceeded.

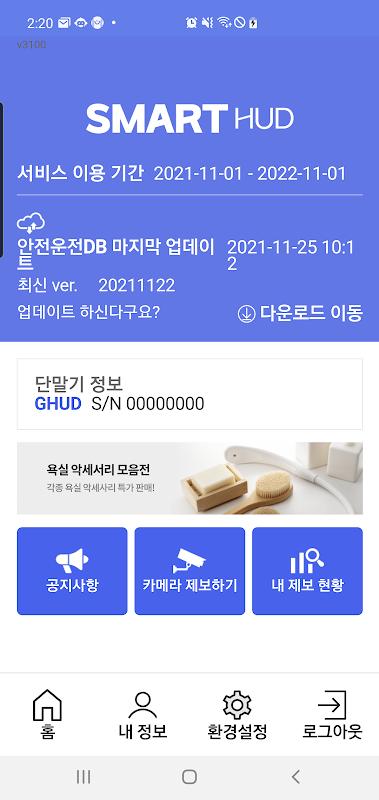

[ Wireless DB update with smartphone application ]

By using the SMART HUD application to wirelessly update the safe driving DB with a smartphone, usability has been improved.

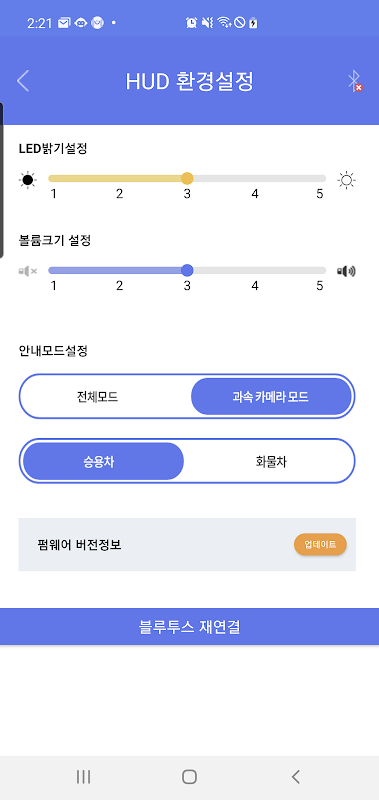

[ Terminal environment setting by smartphone application ]

You can configure the terminal settings using the SMART HUD application.

- LED brightness adjustment (Step 1 to Step 5), Step 5 is the brightest.

- Volume adjustment (silent ~ 4 steps)

- Camera guide mode setting (camera mode / all mode)

- Guide mode setting by vehicle type (car/lorry)

 Camera mode: speed camera guide

 Full mode: speed camera + traffic information camera guidance

 Truck mode: Guide for enforcement cameras dedicated to trucks (ex. Guide to crackdown on bad loading)

[ caution ]

- If there is a device nearby that may interfere with GPS reception, or if there is a metal tinting or heat-shielding glass installed

In a vehicle, GPS reception is not smooth, so normal operation may not be possible.

- Information may not match depending on road conditions and usage environment.

- Please drive safely by obeying the traffic laws on the actual road.

- When two roads run parallel to each other within several tens of meters, the warning area of ​​the adjacent road may sound a beep sound.

- At the point where the overpass and the general road overlap, the warning area of ​​the other road may sound a beep sound.

- At the intersection, the warning area in the direction of going straight may sound a beep sound even after turning left or right.

- If you enter this road by turning left or right, the warning area in the adjacent straight direction may not be displayed.
