Structural Calculation of Beam

Analysis and structural calculation of beams under point loads, distributed loads and moments, with the following characteristics:

- Combinations of supports: recessed, articulated and sliding.

- Supports point loads, evenly distributed loads, triangular loads, trapezoidal loads and moments. All of them in any position and quantity <4.

- Emergent aids in complex points.

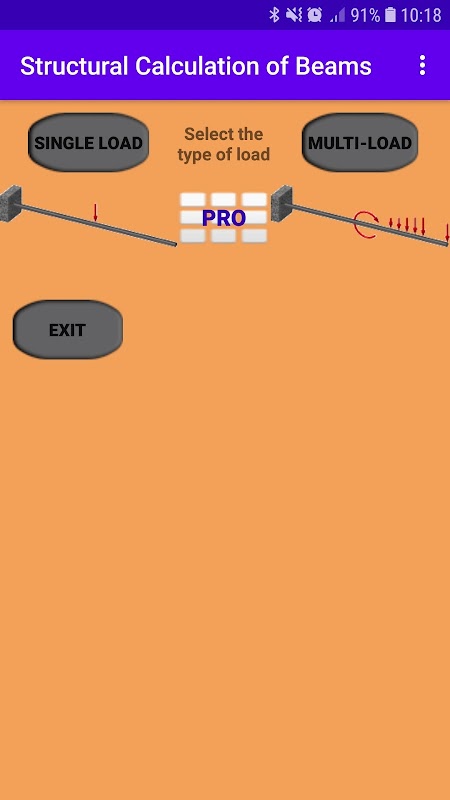

- Guided calculation examples for both one load and multiple loads.

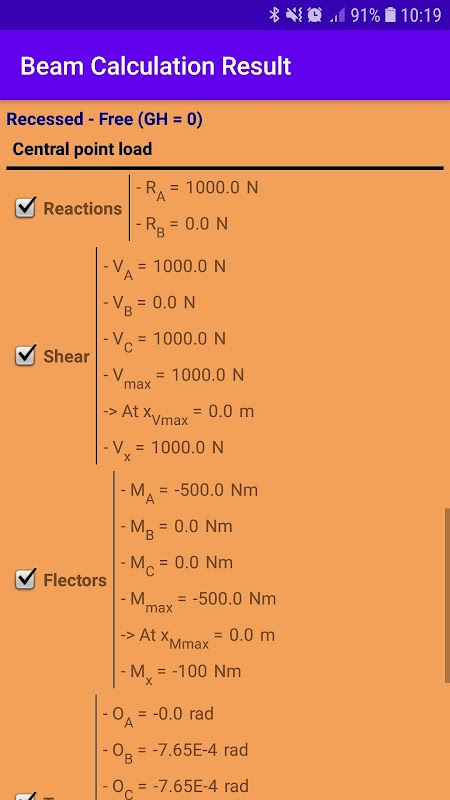

- Numerical results in extremes, intermediate and maximum key points and in a specific position chosen by the user.

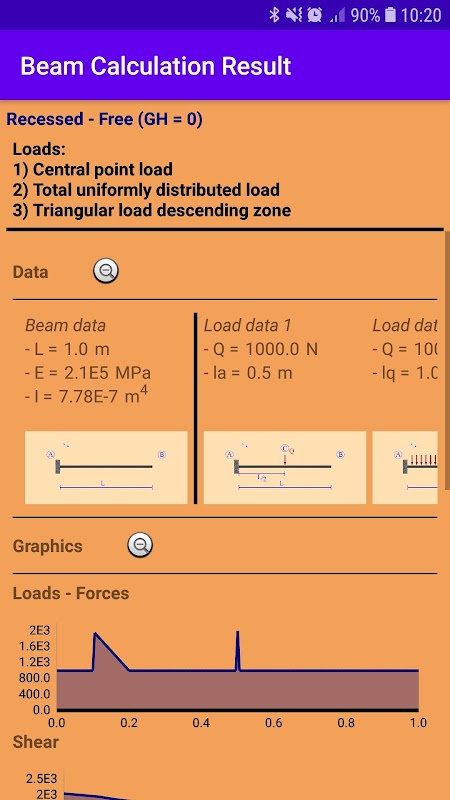

- Diagrams of loads (forces and moments), shear, bending, turns and arrows.

- 9 languages ​​available: Spanish, English, French, German, Russian, Japanese, Hindi, Arabic and Chinese.

- Indication of the degree of hyperstaticity of the beam depending on the supports.

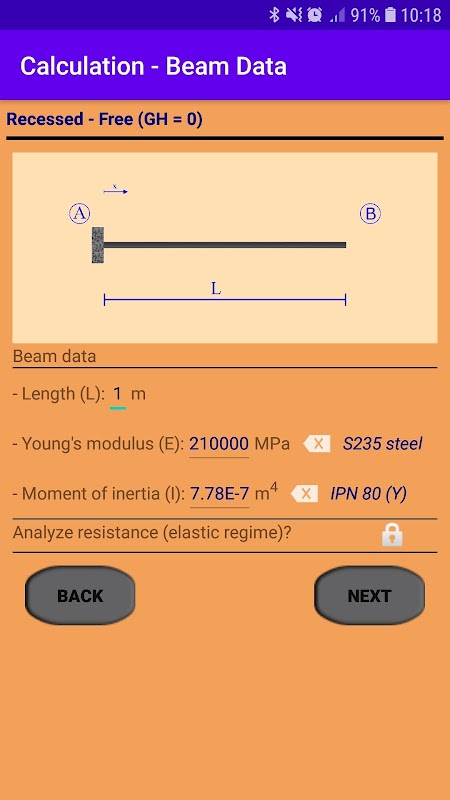

- Predefined data tables of:

a) Most used materials. Young's moduli and allowable limit stresses.

b) Most used commercial profiles. Moments of inertia, both vertical (Y axis) and horizontal (Z axis):

IPN, IPE, HEB, HEA, HEM, UPN, L, LD, T, Round, Square, Hollow Round, Hollow Square, Hollow Rectangular, Shaped Profiles (L, LD, U, Omega, C, Z).
