Get Boolean Expression Minimizer old version APK for Android
Step-by-step simplification of Boolean algebra expressions
Boolean Expression Minimizer provides step-by-step simplification of Boolean algebra expressions. Two modes are available:

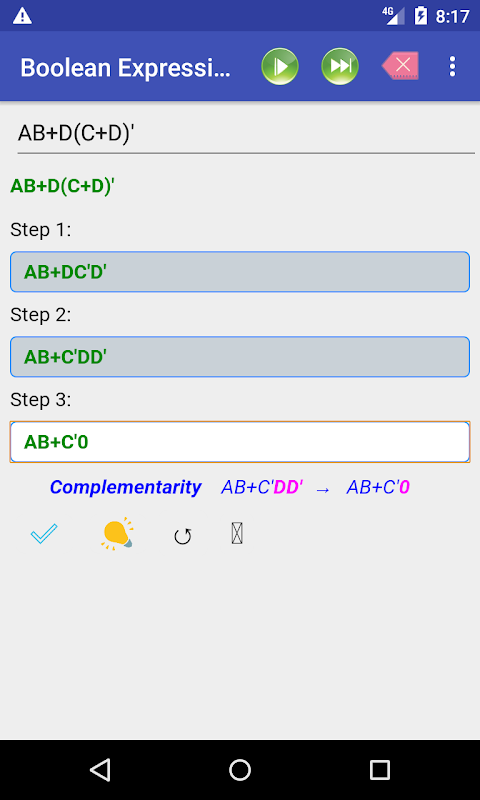

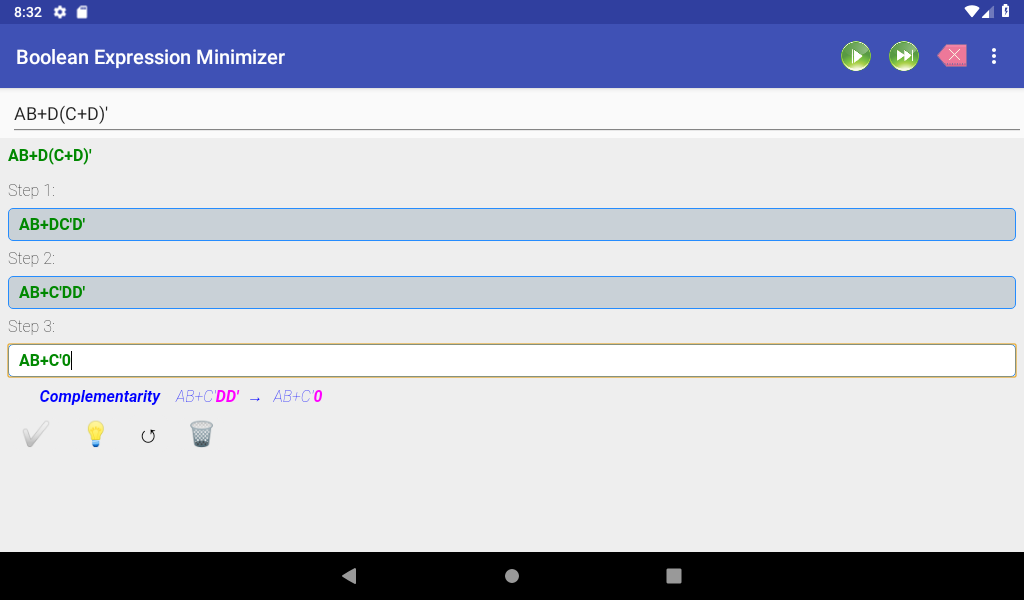

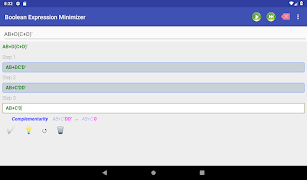

1. Interactive Algebraic Minimizer: In this mode, you are guided to simplify an expression. Hints are provided and expressions are tested for validity and equivalence in each step.

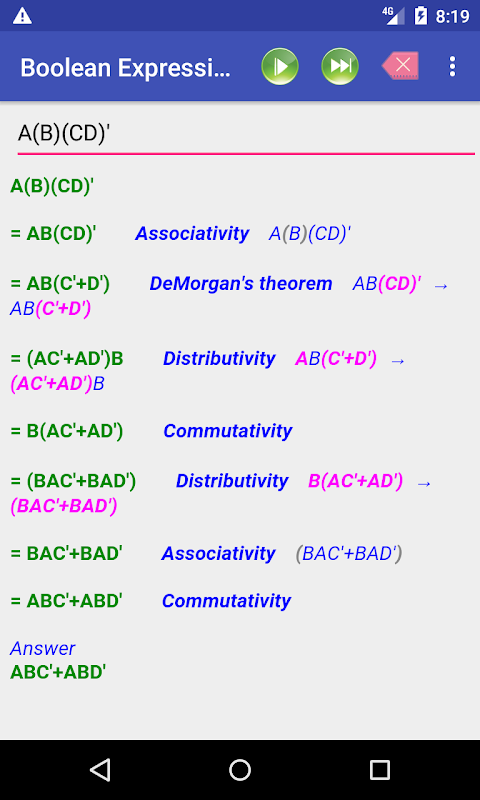

2. Automatic Algebraic Minimizer: In this mode, the expression is automatically simplified with all steps explained.

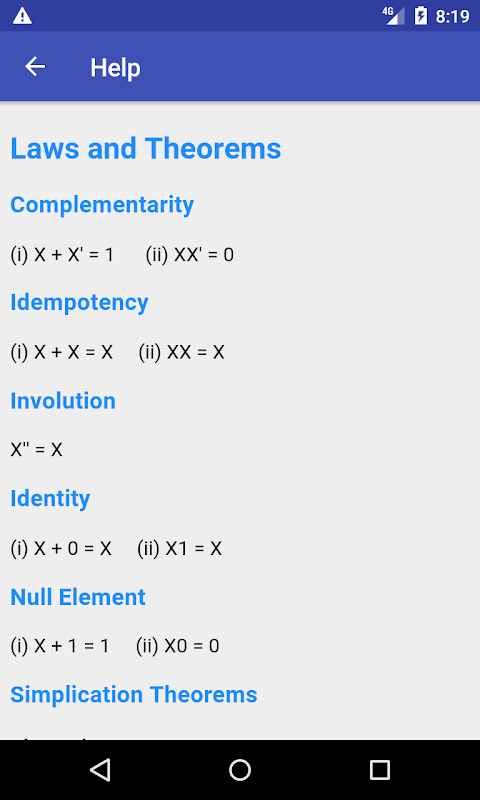

Boolean expressions are entered in the infix format whereby the NOT operator proceeds the term and the AND operator is implied e.g. A' + BC. Up to 26 variables are supported from A to Z. The following laws and theorems are used:
→ Complementarity: (i) X + X' = 1 (ii) XX' = 0
→ Idempotency: (i) X + X = X (ii) XX = X
→ Involution: X'' = X
→ Identity: (i) X + 0 = X (ii) X1 = X
→ Null Element: (i) X + 1 = 1 (ii) X0 = 0
→ Absorption: (i) X + XY = X (ii) X(X+Y) = X
→ Adsoption: (i) X + X'Y = X + Y (ii) X(X' + Y) = XY
→ Unity: (i) XY + XY' = X (ii) (X+Y)(X+Y') = X
→ DeMorgan's Laws: (i) (X + Y)' = X'Y' (ii) (XY)' = X' + Y'
→ Commutativity: (i) X + Y = Y + X (ii) XY = YX
→ Associativity: (i) X + (Y + Z) = X + Y + Z (ii) X(YZ) = XYZ
→ Distributivity: (i) X(Y+Z) = XY + XZ (ii) X+YZ = (X+Y)(X+Z)
→ Consensus: (i) XY + X'Z + YZ = XY + X'Z (ii) (X + Y)(X' + Z)(Y + Z) = (X + Y)(X' + Z)
→ XOR Gate: X ^ Y = X'Y + XY'
→ XNOR Gate: X = Y ≡ X'Y' + XY
Note: This app requires an Internet connection.
Uploaded by
Sôufi Añæ HM
Requires Android
Android 4.1+
Category
Report
Last updated on Sep 27, 2023
Minor bug fixes and improvements. Install or update to the newest version to check it out!
Boolean Expression Minimizer
3.0.5 by Kappsmart
Sep 27, 2023
