Topcon Raster Scan

Topcon Raster Scan is a field application software for scanners that supports remote operation of laser scanner products (ESN-100) and real-time data confirmation in the field.

Automatic registration and real-time scan result confirmation functions allow the user to monitor the progress of the measurement operation and check for measurement omissions. This reduces the need for rework, such as making up measurements due to missing measurements, and allows even users unfamiliar with scanner measurement to acquire point cloud data reliably.

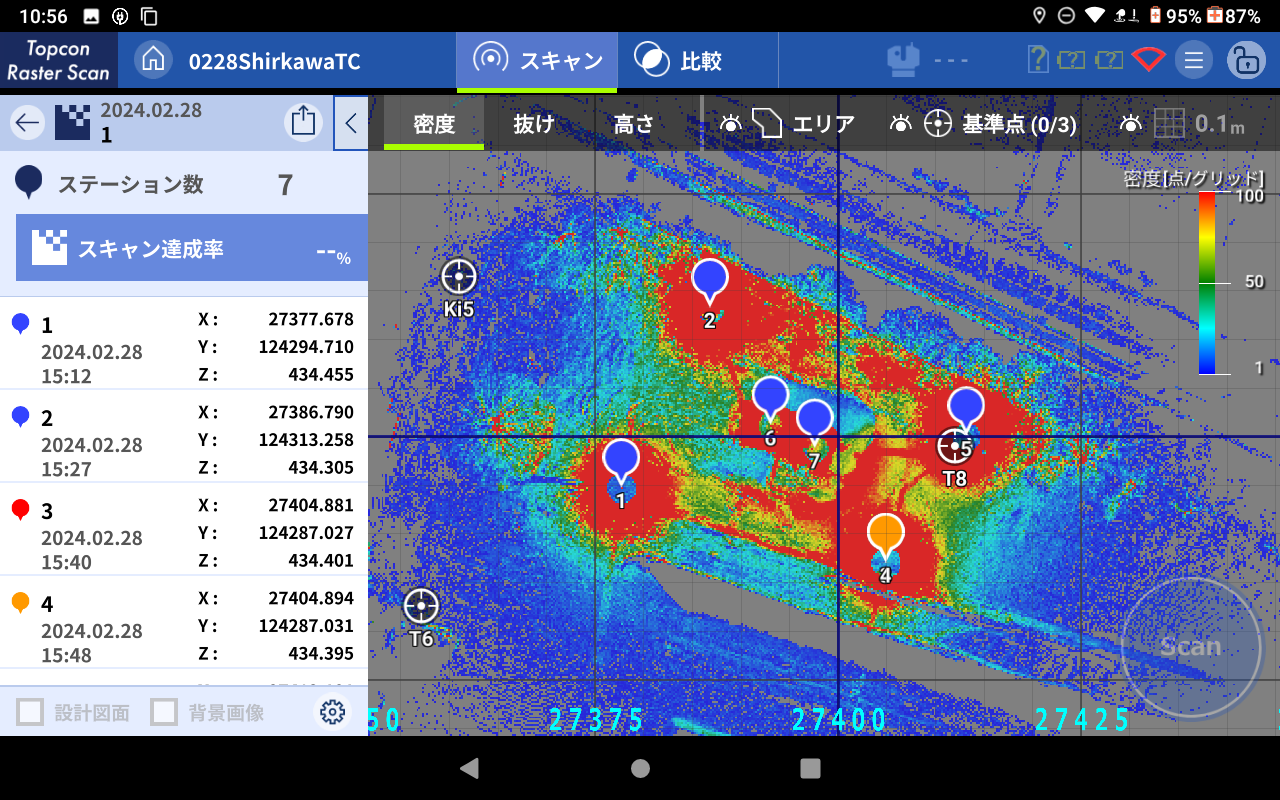

[Display function].

The remotely acquired measurement data can be visualized in real time on an intuitive two-dimensional grid display, allowing users to check the measurement results on the spot and proceed with their work while knowing where to scan next.

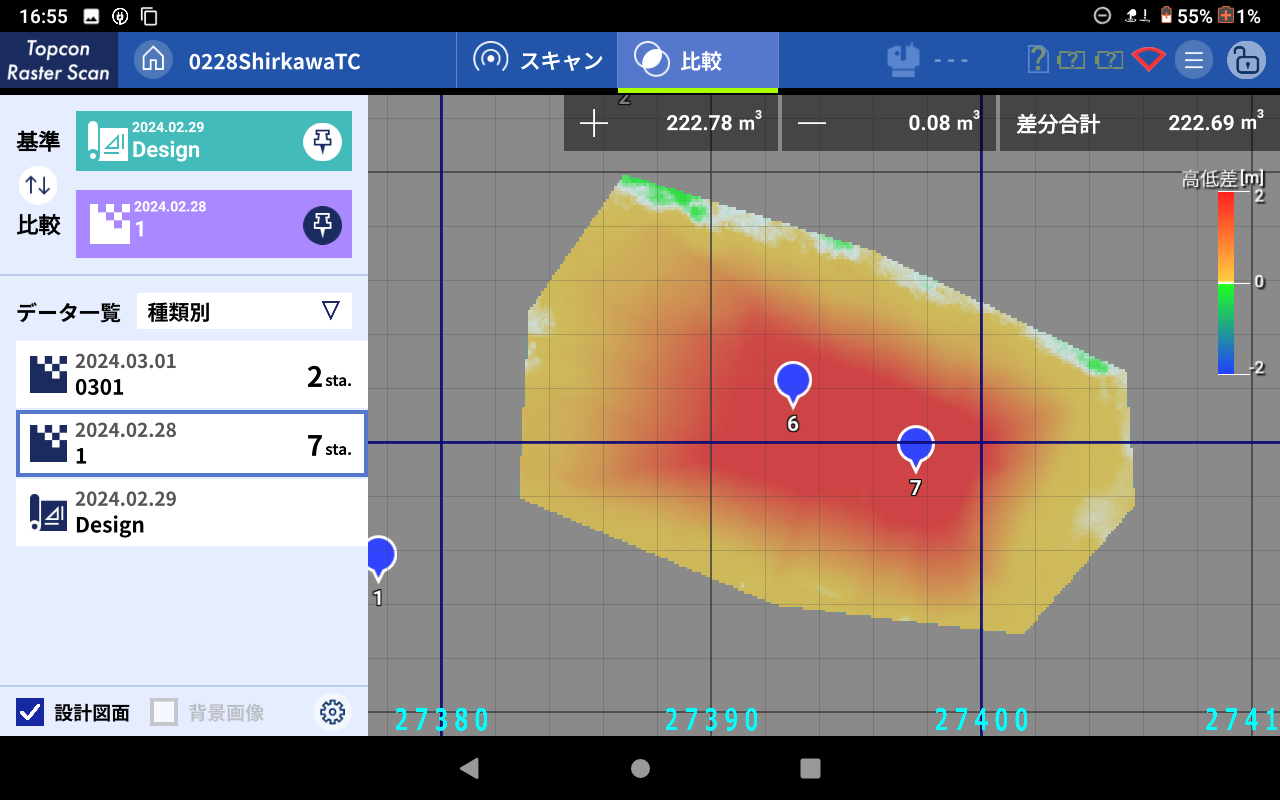

[Comparison function].

The application includes a design data import function that allows comparison of measurement data and design data. The application also has a point cloud comparison function, so you can check the results, calculate the amount of soil, and manage progress on the application.

[Target devices]

Guaranteed operation models: FC-6000A, GX-10W (Topcon field controllers)

Recommended operating environment (However, please note that we do not guarantee operation on all devices.)

OS: Android 9 to 14

CPU: Qualcomm Snapdragon 660 / MediaTek Helio G95 class or higher

(ARMv8-A 64-bit, 8 cores)

Memory: 6 GB or more

Storage: 64 GB or more

Communication: Wireless LAN (802.11a/b/g/n/ac)

Languages: Japanese, English, Chinese (Simplified), Chinese (Traditional), Korean, Indonesian, Thai, Vietnamese
