Generic Viewer

Generic viewer is 2D/3D viewer for Aveva Marine(Aveva's CAD for shipbuilding design) and is for Tribon's GEN file for ship structure.

GEN files which have ship body's 2D/3D outline information can be viewed on your smart phone or tablet

[Characteristics]

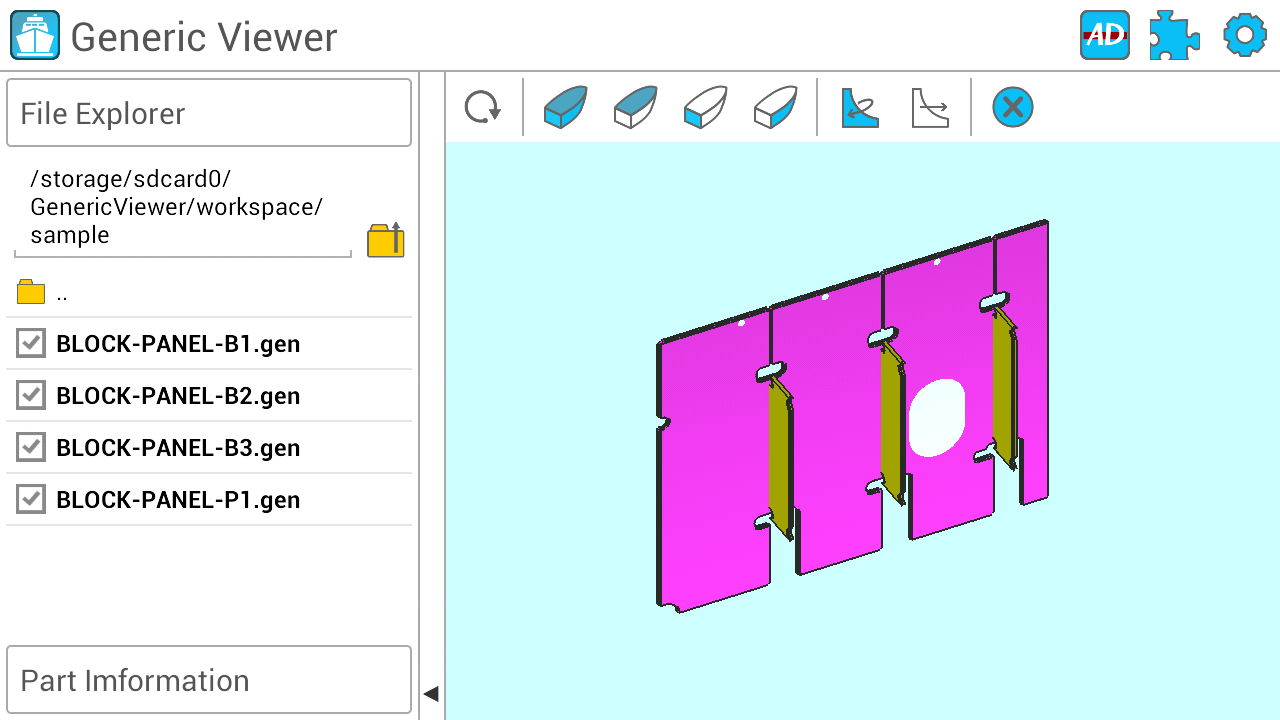

1. 3D Viewer

- Selected parts can be moved to the center or to the 2D viewer

- Zoom-in/out, panning, rotation are possible

- ISO view, Deck view, Frame view, Long view are provided.

- The information(Block/Panel name, WCOG etc) of the selected part can be viewed.

- various menus are diplayed by pressing on the gen file or directory in the explorer.

2. 2D Viewr

- Outer contour of shape/Hole/Marking is displayed as 2D image

- Markings can be toggled

- Zoom-in/out, panning, rotation are possible

3. Settings

(1) Basic settings

- working directory can be set.

- The sensitivity of rotation/panning/zooming can be adjusted.

(2) 3D Model settings

- the color of the selected part can be changed on the file explorer.

- the color can be set according to the part's wideness.

(3) 2D Marking settings

- Only required generic file's marking information can be viwed by setting on the 2D viewer.

(4) Assembly directory wizard

- Multiple gen files from the specific directory can be structured as like assembly in the working directory.

(5) Plugin

- Generic viewer has plugin which makes generic file interface from the shipbuilding company's system.

- Each shipbuilding company can make each own interface between drawing system and generic viewer by customizing the viewer.
