Light Analyzer (need Diffracti

HTML5 version

https://iwant2study.org/ospsg/index.php/interactive-resources/physics/04-waves/03-electromagnetic-spectrum/643-datalogger

direct link

https://iwant2study.org/lookangejss/04waves_13electromagneticspectrum/ejss_model_spectrumanalyzer_2019_v21/spectrumanalyzer_2019_v21_Simulation.xhtml

v21:

updated to ionic 4

added compare button with real data from internet

v13:

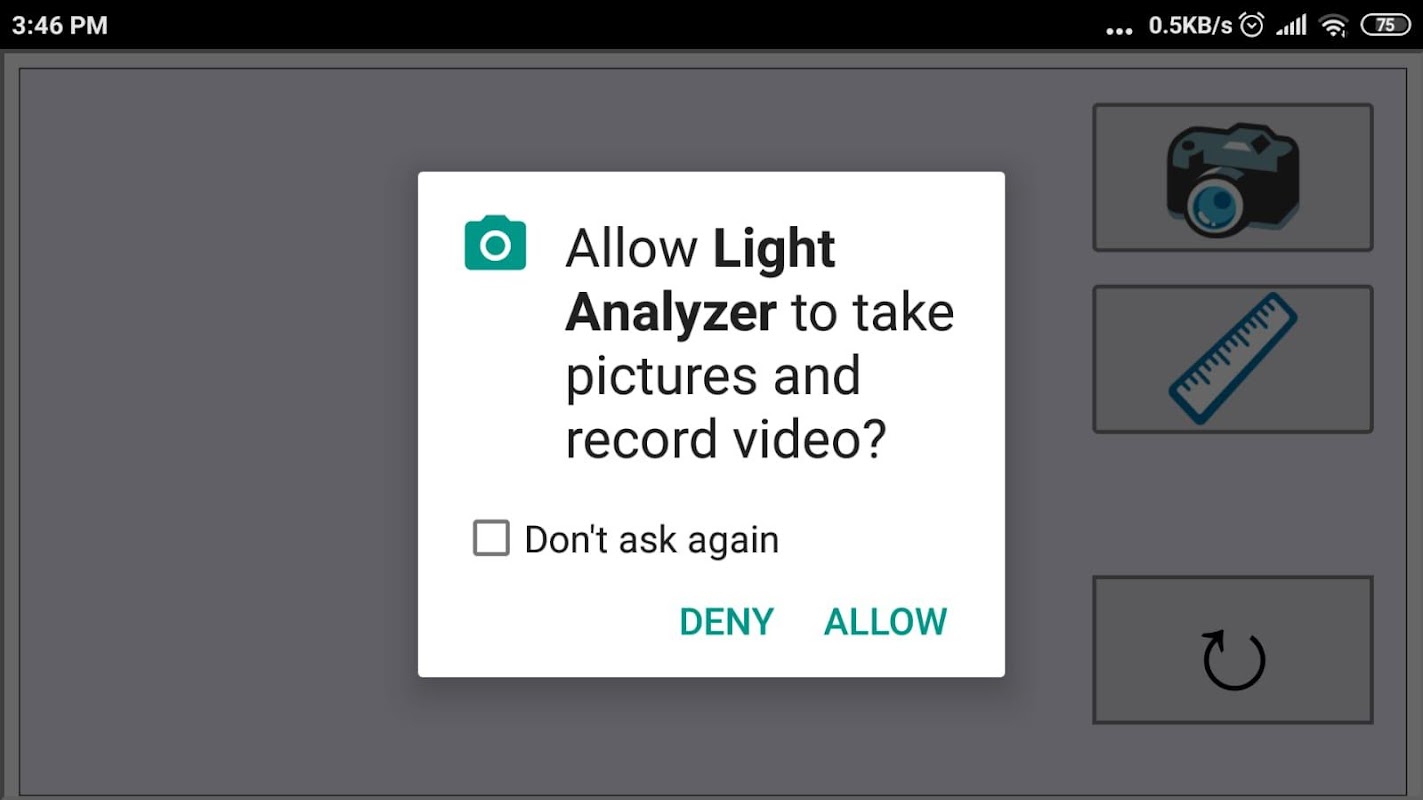

automatically asked for camera permission

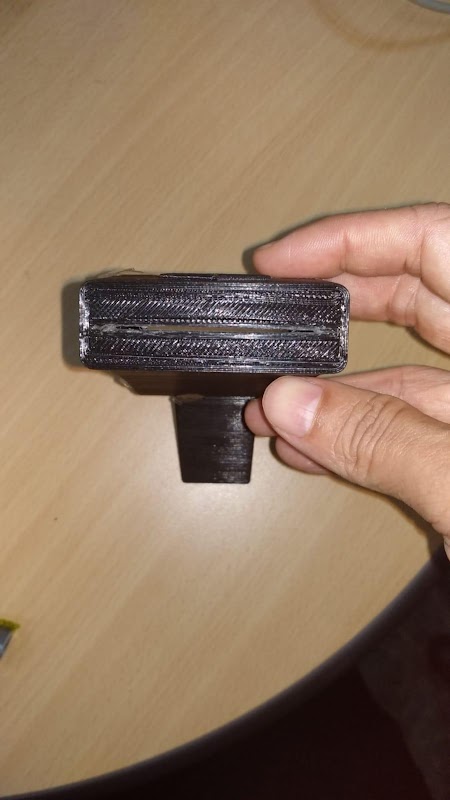

to be used with a 3D printed attachment see screenshots

position attachment in front of the back camera

take a photo of the light spectrum from sunlight and click the ruler to analyze the emission spectrum

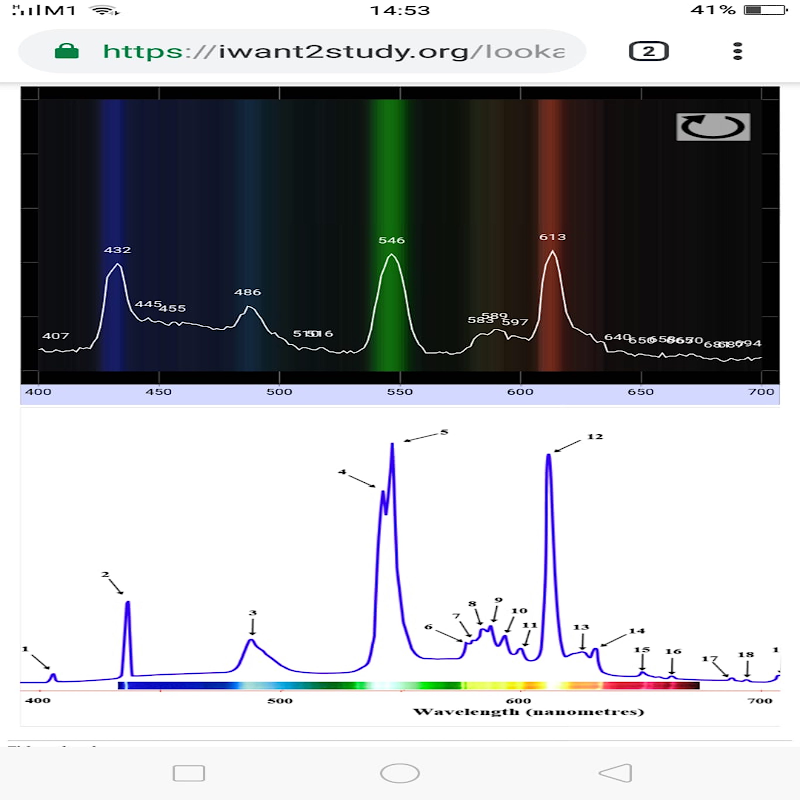

a comparison of the camera data and Wikipedia theoretical image

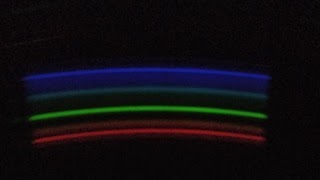

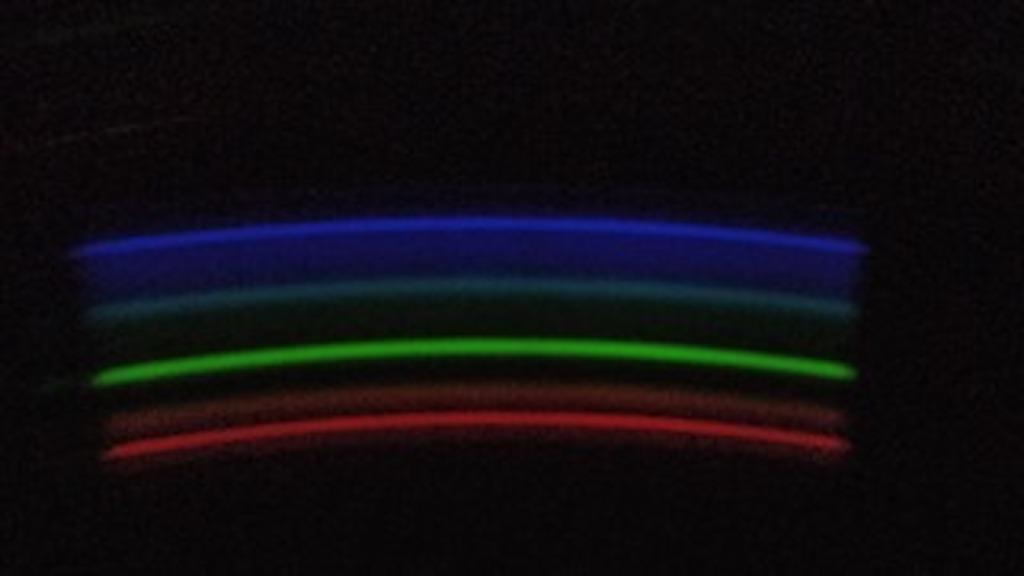

take a photo of the light spectrum from a normal lamp and click the ruler to analyze the emission spectrum

v6:

Physical Apparatus needed to use App

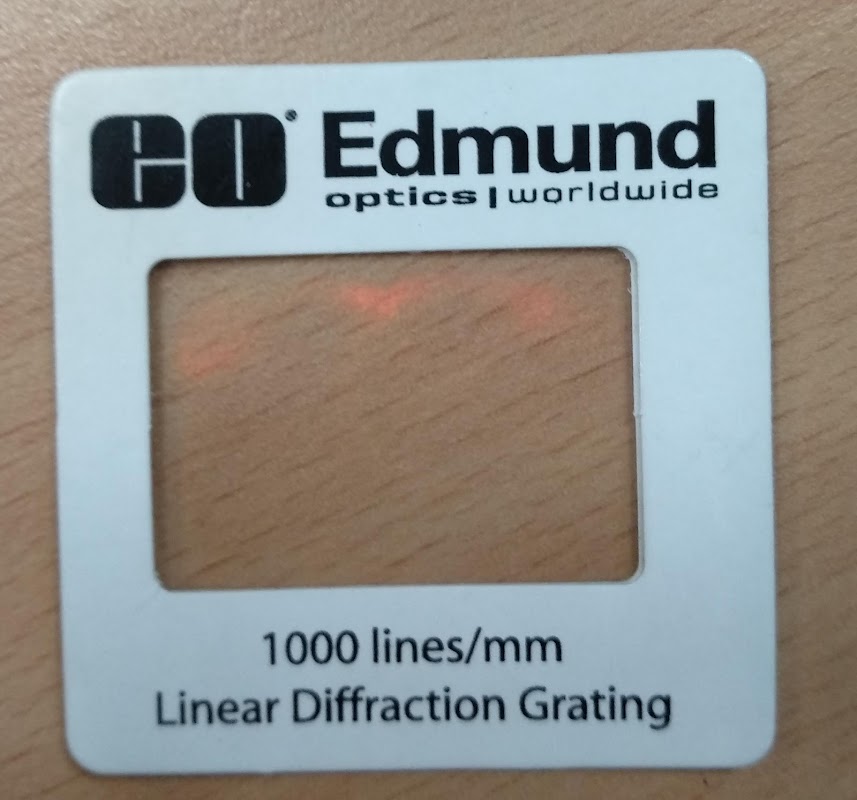

A diffraction grating to be placed in front of the camera

A light source such as a multi propose laser pointer

Handphone with App/Chrome Browser or a laptop with a camera

recorded to work better now

added back camera

added calibration of known zeroth and first-order diffraction light of the RED laser.

added auto find light

current version 4

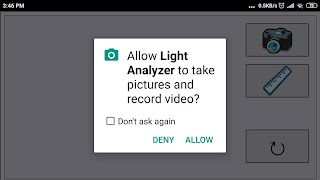

some phones/Android OS (XiaoMi etc) may require App permission for CAMERA to be turn on.

some phones/Android OS (Samsung) could be automatic.

close the App and restart App again, it should now detect the given CAMERA permission.

About

An open source physics at Singapore simulation based on codes written by Félix Jesús Garcia Clemente.

more resources can be found here

http://iwant2study.org/ospsg/index.php/interactive-resources/physics

Introduction

prototype

Interesting Fact

This data logger record intensity of brightness of red, green,blue light and even allows the phone camera to record real time data.

Acknowledgement

My sincere gratitude for the tireless contributions of Francisco Esquembre, Fu-Kwun Hwang, Wolfgang Christian, Félix Jesús Garcia Clemente, Anne Cox, Andrew Duffy, Todd Timberlake and many more in the Open Source Physics community. I have designed much of the above based on their ideas and insights.

This research is supported by the eduLab project AEP 01/18 LTK Promoting joy of learning by turning phone into 3 scientific equipment, awarded by the Ministry of Education (MOE), Singapore and managed by National Institute of Education (NIE), Singapore.

reference:

http://iwant2study.org/ospsg/index.php/projects/576-aep-01-18-ltk-promoting-joy-of-learning-by-turning-phone-into-3-scientific-equipment
