Vernier Calipers Simulator

Pro

https://play.google.com/store/apps/details?id=com.ionicframework.vernierpro698620

Free

https://play.google.com/store/apps/details?id=com.ionicframework.vernierapp777926

About

An open source physics at Singapore simulation based on codes written by Fu-Kwun Hwang and Loo Kang WEE.

more resources can be found here

http://iwant2study.org/ospsg/index.php/interactive-resources/physics/01-measurements

Introduction

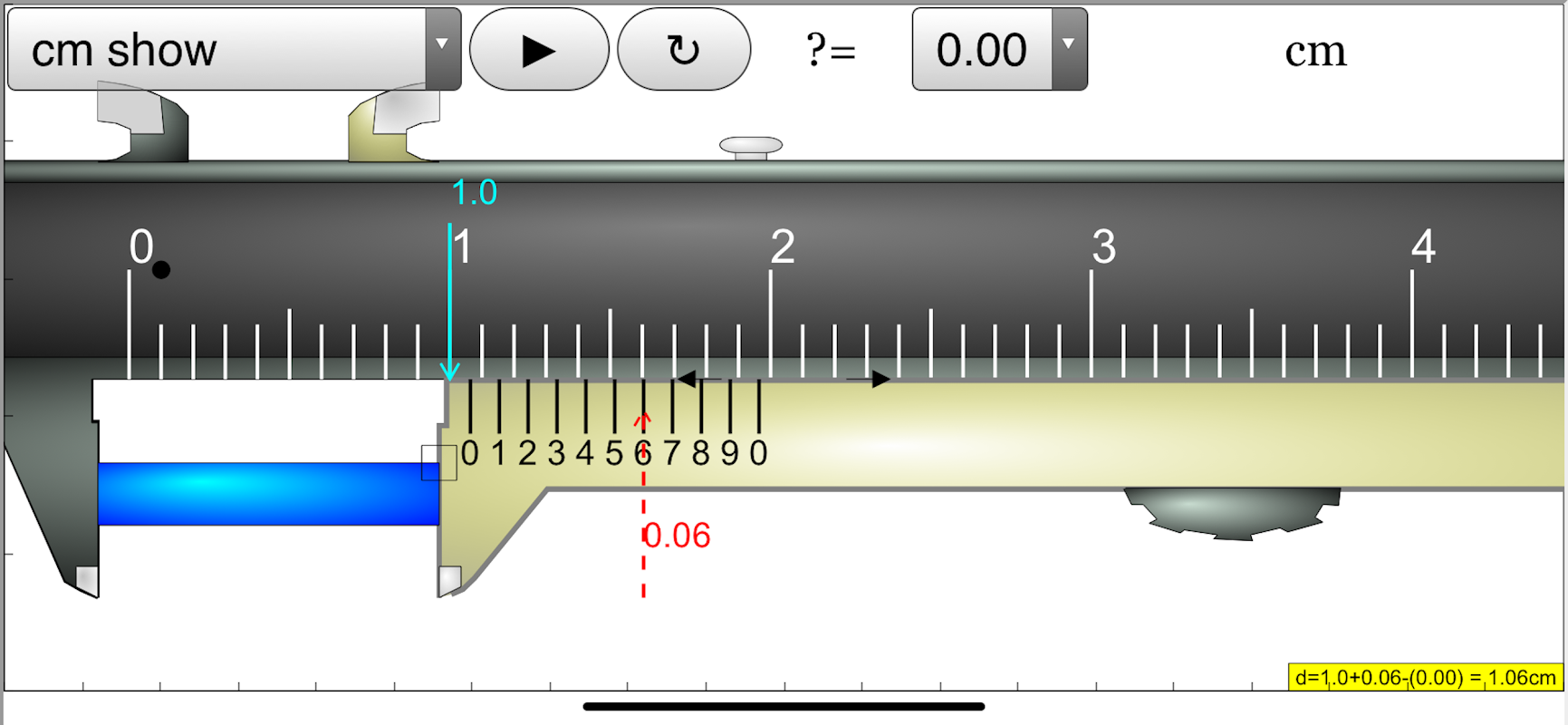

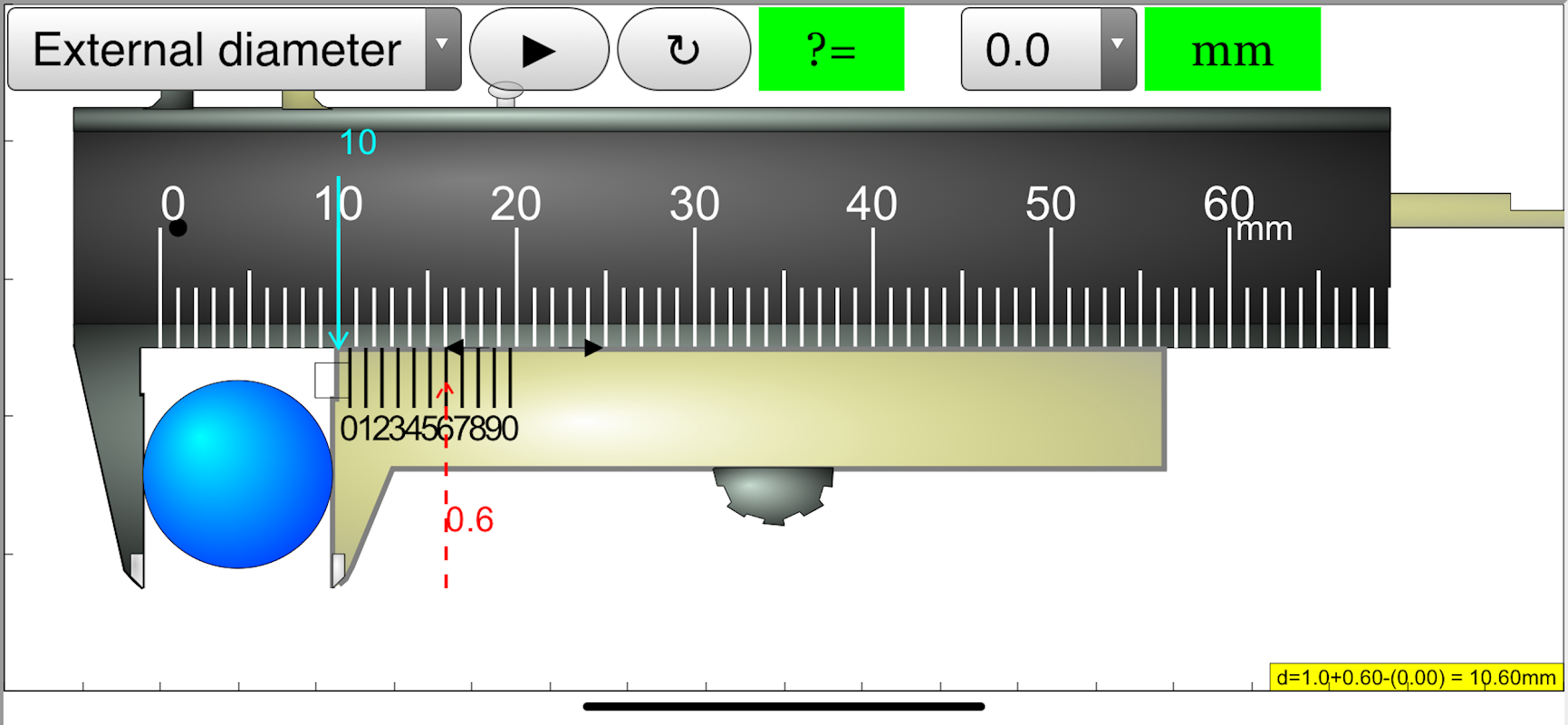

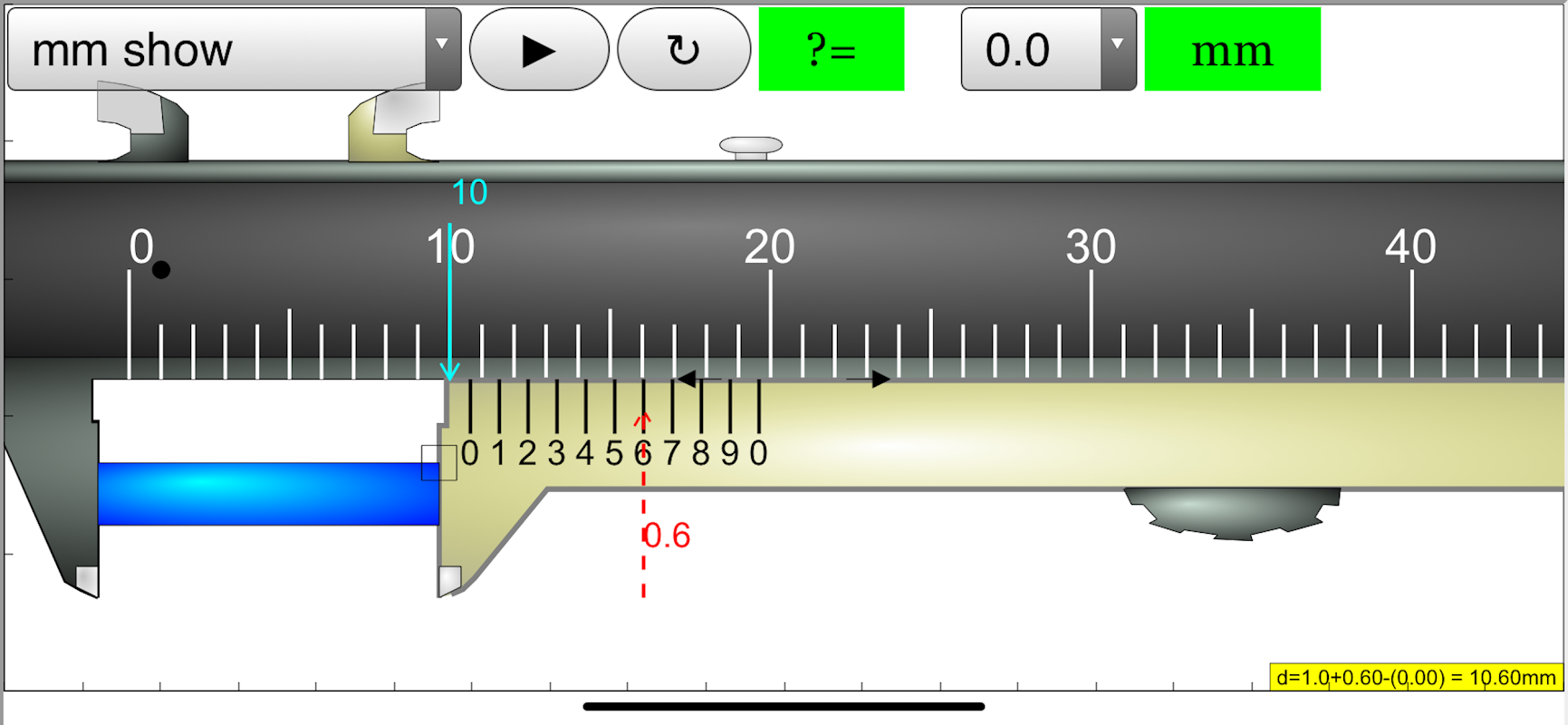

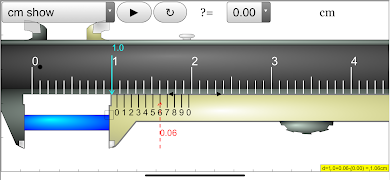

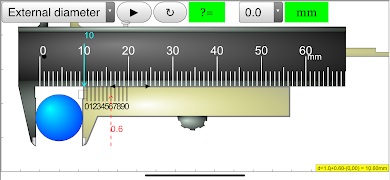

Vernier calipers can measure external dimensions using the pictured lower jaws.

The Vernier calipers model has

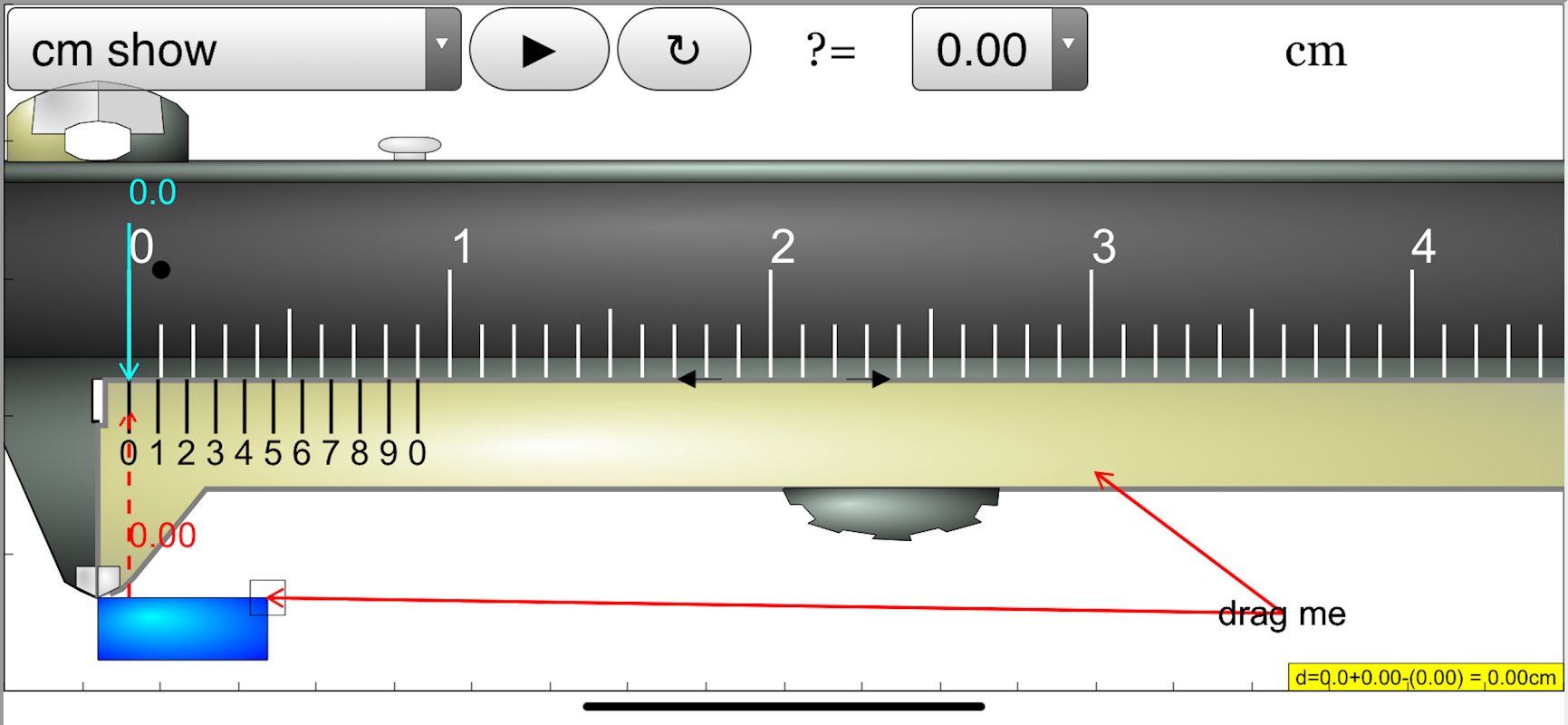

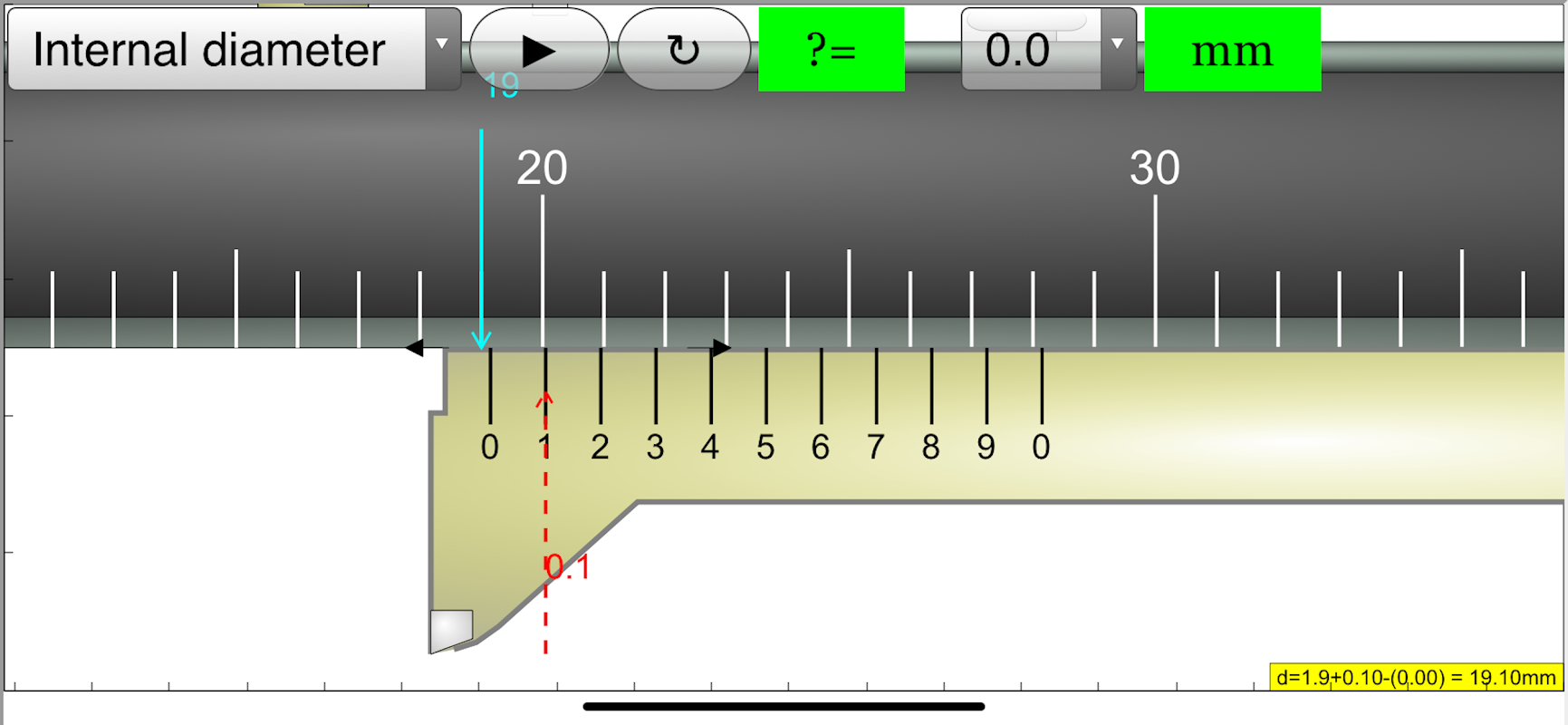

an object (Blue) for the internal jaws to measure width of an object with slider to control width of the object and simple drag action to control position of object.

a slider for zero error slider

checkbox for hint to scaffold the learners attention and point of focus

checkbox for answer to show the meaning of reading on the main scale and the vernier scale with zero error calculations if any.

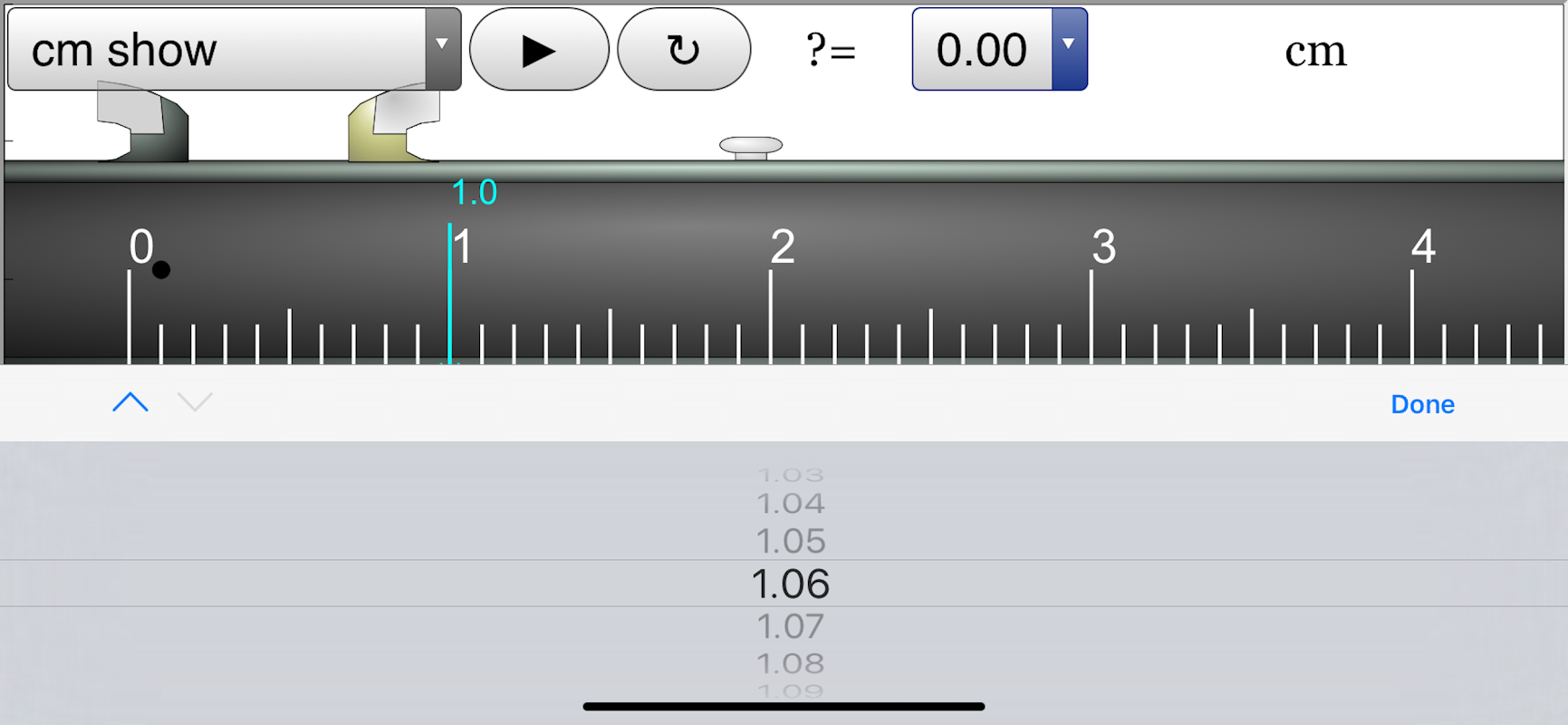

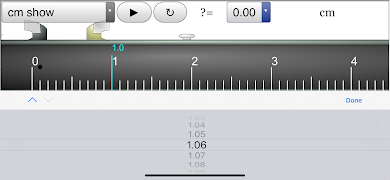

drop down menu of the various common vernier scales for sense making and additional testing out by learners their ideas of how vernier works.

fine <> control buttons for learners to manipulate the model with single incremental precision

slider control for fast changes in the vernier measurement

reset button to bring simulation back to original (default) setting.

Acknowledgement

My sincere gratitude for the tireless contributions of Francisco Esquembre, Fu-Kwun Hwang, Wolfgang Christian, Félix Jesús Garcia Clemente, Anne Cox, Andrew Duffy, Todd Timberlake and many more in the Open Source Physics community. I have designed much of the above based on their ideas and insights, and I thank the OSP community for which Singapore was honored with 2015-6 UNESCO King Hamad Bin Isa Al-Khalifa Prize for the Use of ICTs in Education.
