RF & Microwave Toolbox lite

High frequency electronics toolbox for Microwave engineers, RF professionals, EMC technicians, radio-amateur,students, astronomer and electronic hobbyists.

LIKE and Share us:

Facebook: www.facebook.com/androiddesignnl

Google+: http://gplus.to/androiddesignnl

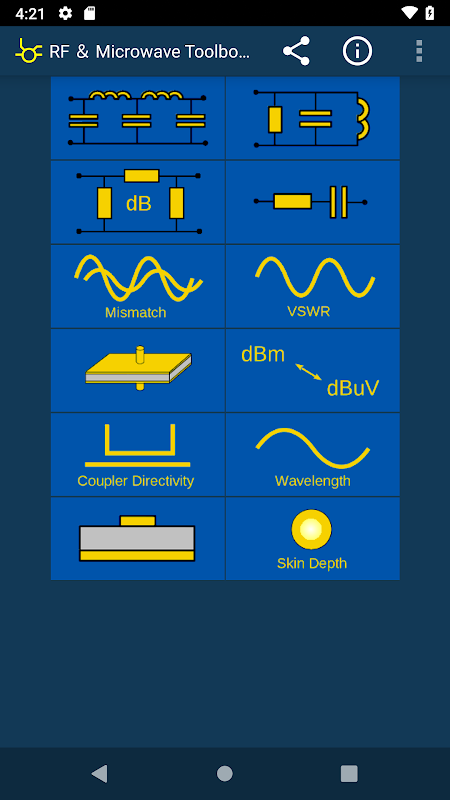

This lite version includes the following tools:

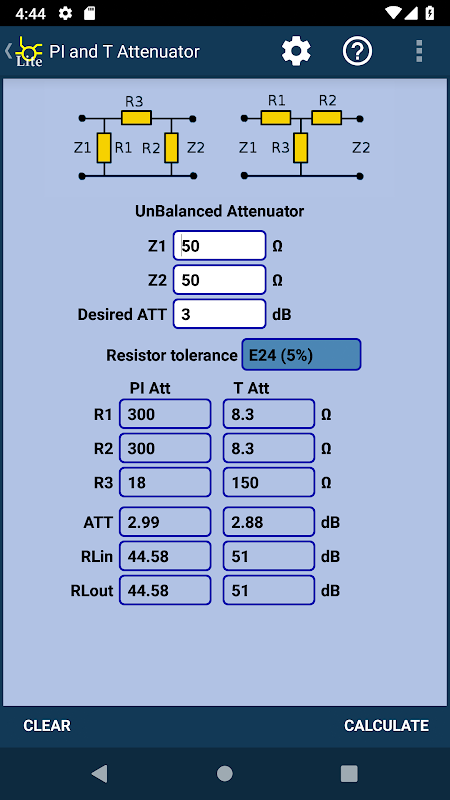

1) PI and T attenuator

2) Reflectometer (VSWR, Return loss)

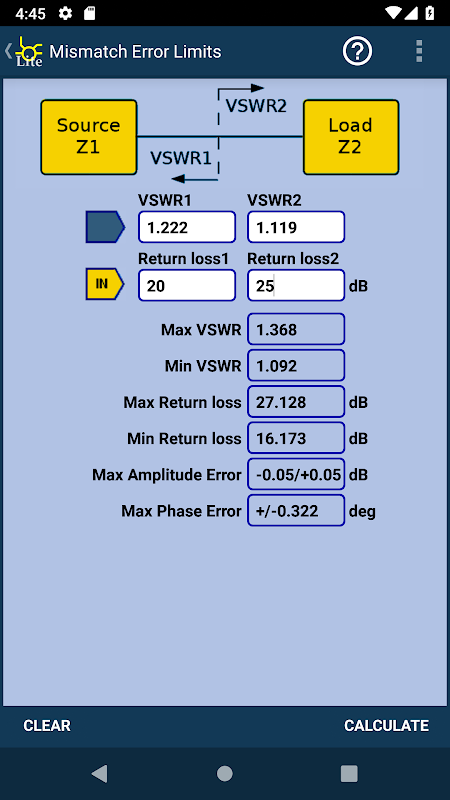

3) Mismatch error limits (VSWR, Return loss)

4) Parallel LCR impedance/resonance

5) Capacitor impedance

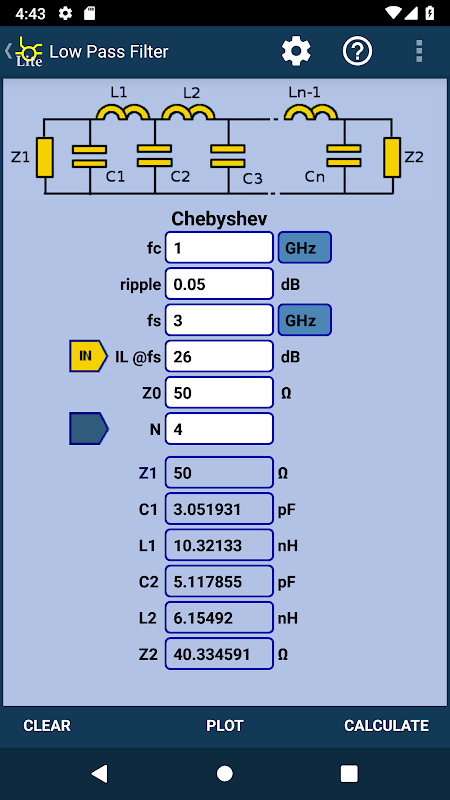

6) Lowpass filter

7) Capacitor plate calculator

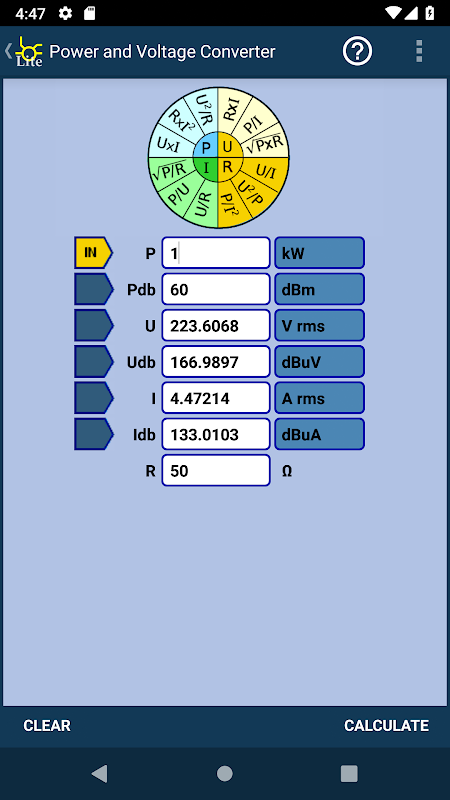

8) Power and Voltage Converter

9) Coupler directivity calculator.

10) Wavelength calculator

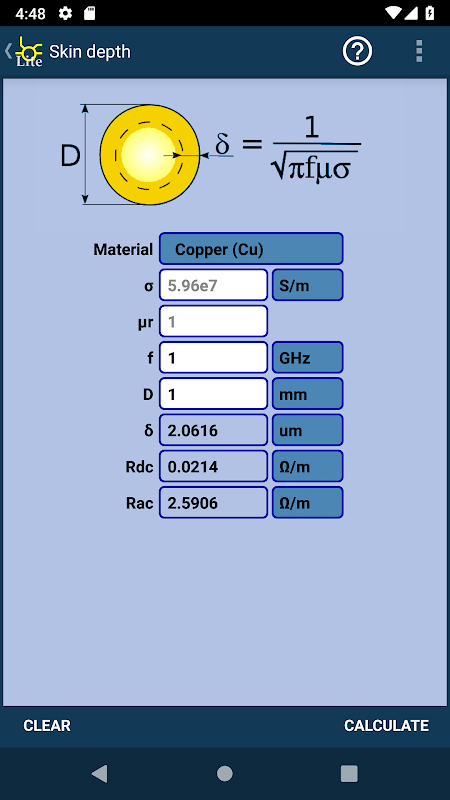

11) Skin depth (DC and AC resistance)

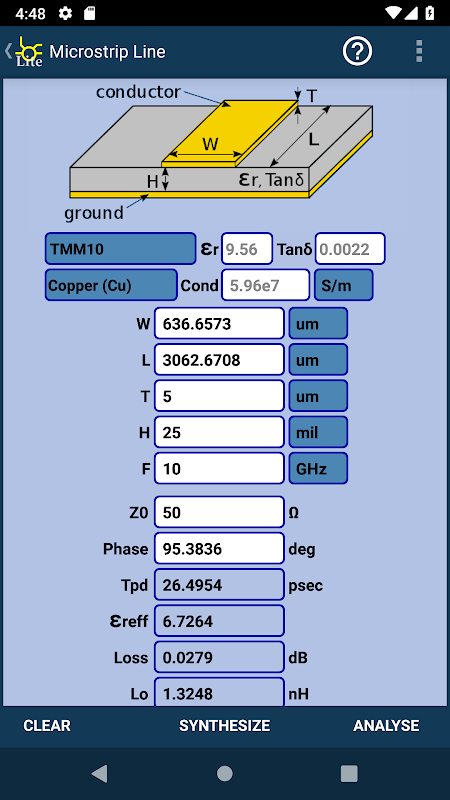

12) Microstrip line calculator

Tools in full version includes;

1) Noise floor (Kelvin,dBm)

2) Amplifier cascade (NF, Gain, P1db, OIP2, OIP3)

3) Radar equation (2-way path loss)

4) Radio equation (1-way path loss)

5) Power and voltage converter (W,dBm,V,dBµV)

6) Field intensity and power density converter (W/m2, V/m, A/m, Tesla, Gauss,dBm, W)

7) Mismatch error limits (VSWR, Return loss)

8) Reflectometer (VSWR, Return loss)

9) Mitered Bend

10) Divider and Couplers (Wilkinson, Rat race, Branchline , microstrip and lumped)

11) Balanced and und balanced PI and T attenuator

12) Skin depth (DC and AC resistance)

13) PCB Trace calculator (impedance/dimensions)

- Microstrip

- Stripline

- Coplanar waveguide

- Coupled microstrip

- Coupled stripline

14) Image rejection (amplitude and phase imbalance)

15) Mixer harmonics (up and down convertion)

16) Helical antenna

17) Peak to RMS (peak, RMS, average, CF)

18) Air Core Inductor Inductance

19) Parallel plate Capacitor

20) PI, T and L attenuator

21) Ohm's Law

22) Parallel LCR impedance/resonance

23) Series LCR impedance/resonance

24) Inductor impedance

25) Capacitance impedance

26) Antenna temperature (Kelvin)

27) Radar Cross Section (RCS) calculator (Sphere,Cylinder, flat plate, corners, dBsm)

28) Noise Figure Y-Factor Methode

29) EMC (EIRP, ERP, dBµV/m)

30) Noise figure converter (dB, linear, Kelvin)

31) Frequency Band Designations (IEEE Radar band, Military Radar band, Radio band, Satellite, Waveguide band)

32) Resistor color code (reverse lookup, 3 to 6 band)

33) Filter Design (Butterworth, Chebyshev, prototype):

- Low pass

- High pass filter

- Band pass

- Band stop filter

34) µ-Filter Design (microstrip, stripline):

- Interchange of Circuits

- Kuroda's Identities

- Series and Shunt Circuit lines

- Coupled line Circuits

- Stepped Impedance

35) PCB Trace Width and Clearance Calculator

36) Series and Parallel component (R, L and C) calculations.

37) Reverse Series and Parallel resistor calculations.

38) Inductor Color Code Calculator.

39) Capacitor Charge Calculator.

40) Led Resistor Calculator.

41) Voltage Divider Calculator.

42) Thin Film Resistor Calculator (Trim and non Trim)

43) Opamp Calculator

44) Lumped Balun Calculator

45) Wavelength calculator

46) L-Network Matching Calculator

47) LCR Parallel - Series Conversion Calculator

48) PI & T-Network Matching Calculator

49) Coax Line Calculator

50) Twisted pair Calculator

51) Lumped-Distributed Equivalences calculator

52) Fresnel Calculator

53) Inductor Charge Calculator.

54) Heat Sink temperature calculator

55) Thermal via calculator

56) Coupler directivity calculator

57) Cavity resonance calculator

58) Resistor SMD Code calculator

59) Waveguide calculator

60) Lumped phase shifter calculator

61) Series section impedance matching transformers

- Series section transformer

- Quarter Wave transformer

- Bramham (12th wave) transformer

- Regier transformer

62) Power (dBm) add calculator

63) Doherty PA calculator

64) Novel Three-Way Doherty PA calculator

65) Conventional Three-Way Doherty PA calculator

66) Circular Waveguide calculator
