YJACK VIEW

YJACK VIEW™ provides seamless integration with YJACK™ and TITAN® digital devices offering a complete HVAC/R system diagnostic solution (hardware purchase required).

Supported Hardware Includes:

TITANMAXTM Digital Manifold

YJACK PATH® Range Extender

YJACK™ Temperature Clamp & Strap

YJACK DEW™ Psychrometer

YJACK PRESS™ Pressure Gauge

YJACK VAC™ Vacuum Gauge

YJACK AMP™ Current Probe

YJACK MANO™ Manometer

YJACK FLOWTM Anemometer

P51-870 TITAN® Digital Manifold

68864 Wireless Refrigerant Scale

6860x Combustion Analyzer

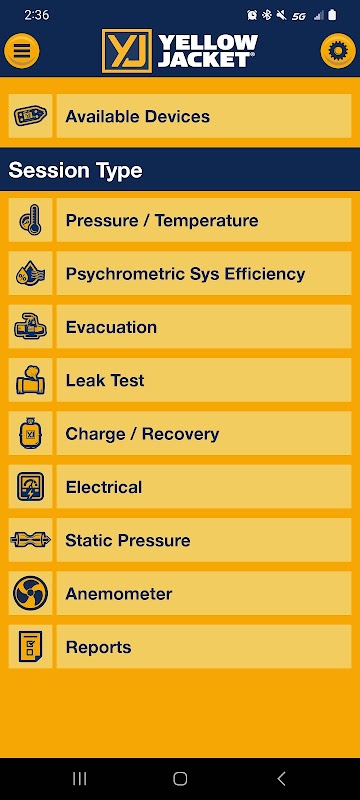

STREAMLINED USER EXPERIENCE

Enhanced user interface focuses on streamlining the user experience by providing a more user focused environment allowing the user full control of system data types, data view, and datalogging and report generation and sharing.

Receive and analyze live data including pressures, temperatures, vacuum level, psychrometric data, duct air flow and speed, duct pressure drops, fuel pressure settings, weight readings, and electrical current. The app includes a variety of session types useful for diagnosing any HVAC/R system.

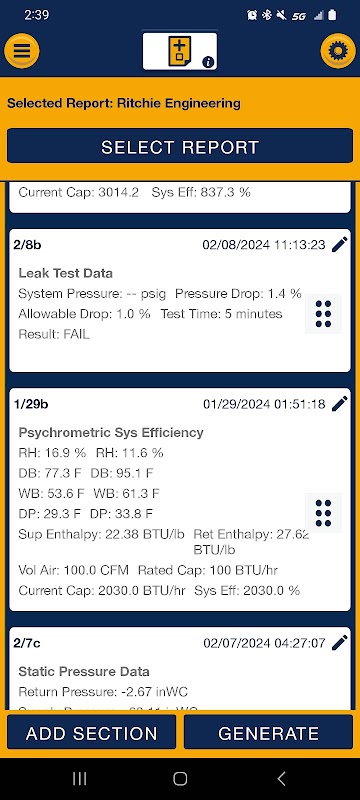

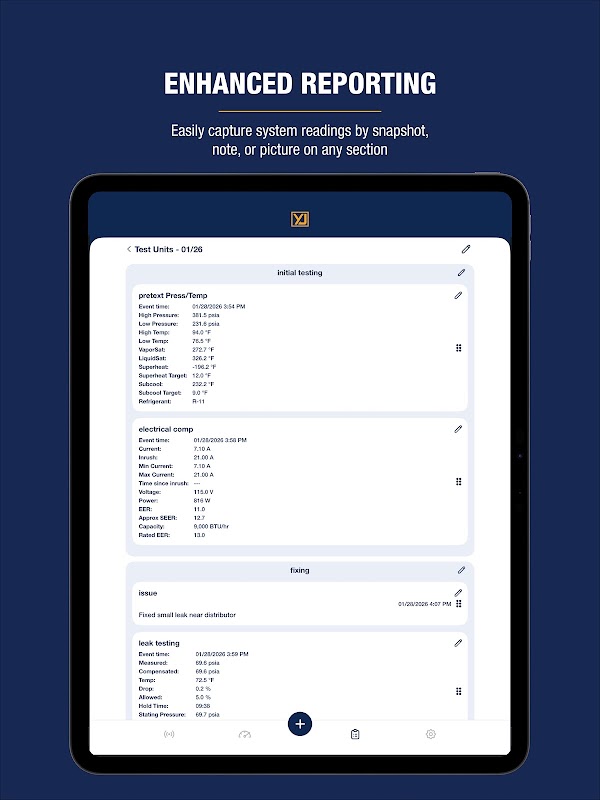

CREATE/MANAGE/SHARE SERVICE REPORTS

Create customizable PDF reports of system measurements and service information while storing past jobs and reports. The user profile feature stores user information that is automatically generated in the header of each report.

ENHANCED DATALOGGING

Record data from one or all current session types as desired. Choose from a variety of sampling rates depending on user need. Live updates to selected devices, units, elevation, refrigerant selection appended to existing data logs. Start and stop datalogging at will, save for later, or share via email for remote analysis.

PRESSURE / TEMPERATURE

View System Pressure and Temperature data on up to 4 systems at once. Select refrigerants for calculating system properties including saturation temperatures and system superheat/subcooling. Manipulate data view types, including large number format, analog gauge (pressure only) or line graph.

STATIC PRESSURE

Select and record pressure drops across multiple different locations like the filter, the coil, external static pressures, and gas pressure readings to upload into a report for the customer all in one session.

EVACUATION

Monitor system vacuum as reported by a TITAN® digital manifold, wired vacuum sensor or the YJACK VAC™ Wireless Vacuum Gauge. Adjustable Vacuum Pressure Target and Hold timer ensures all refrigerant, moisture, and non-condensable gases are removed during evacuation.

LEAK TEST

Monitor pressure changes during pressurized leak testing to verify that system is tight.

PSYCHROMETRIC SYSTEM EFFICIENCY

Analyze psychrometric data on up to 4 systems at once. Ensure maximum home comfort through wireless supply and return relative humidity, dry bulb, wet bulb, dew point temperatures and enthalpy calculations. Compare system rated capacity to actual output for overall system efficiency.

CHARGING & RECOVERY

Display scale readings from the Wireless Charging Scale to accurately charge systems or determine system charge amount through recovery. View readings from your Wireless Refrigerant Scale with simultaneous gross weight and weight change fields.

ELECTRICAL

Electrical session displays readings from YJACK AMP™ Wireless Current Probe while monitoring AC current and inrush. These readings are used for calculating power draw and EER.

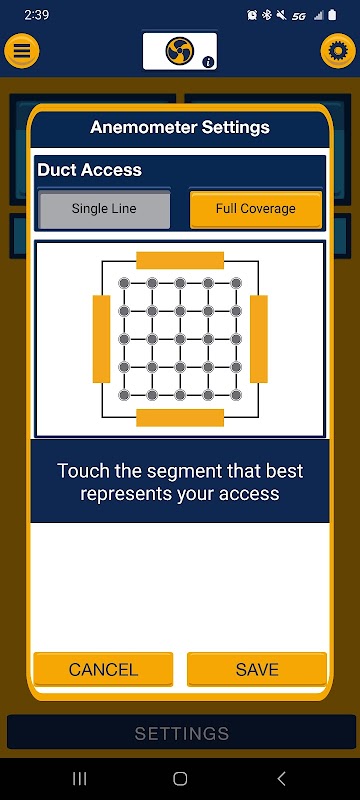

ANEMOMETER

Anemometer session displays readings from YJACK FLOWTM wireless anemometer probe. Capable of a quick one-line verification from duct-to-duct comparison or full system calculations using AHRI40 standard for air measurement to compare installed system airflow to published standard.

AVAILABLE DEVICES

Monitor the data and battery life of your devices. Create a perimeter of devices by placing YJACK PATH® devices periodically around the work area, boosting the signal of all nearby devices.

COMBUSTION

Capture results from your combustion analyzer and include the data in your job report.
